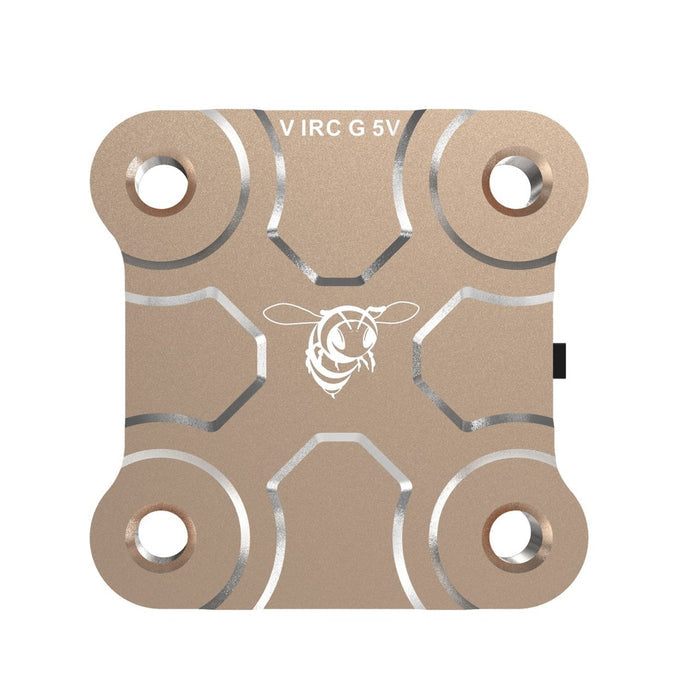

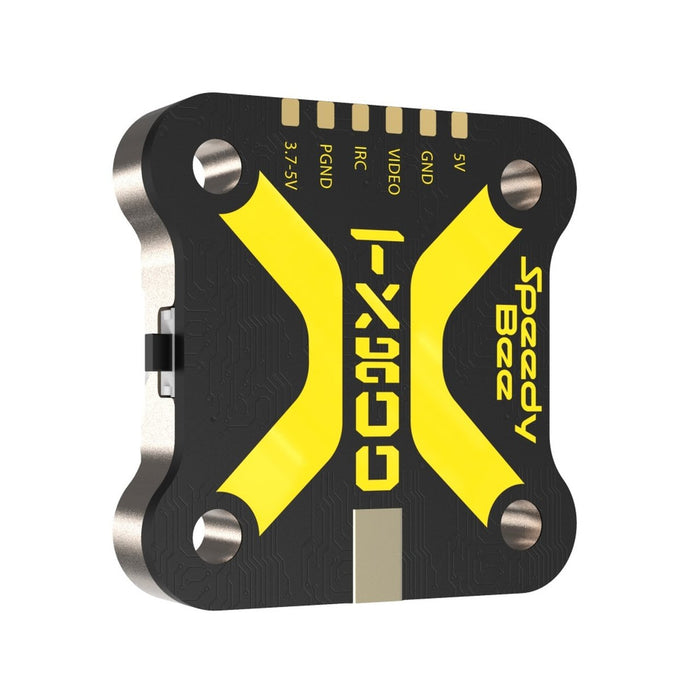

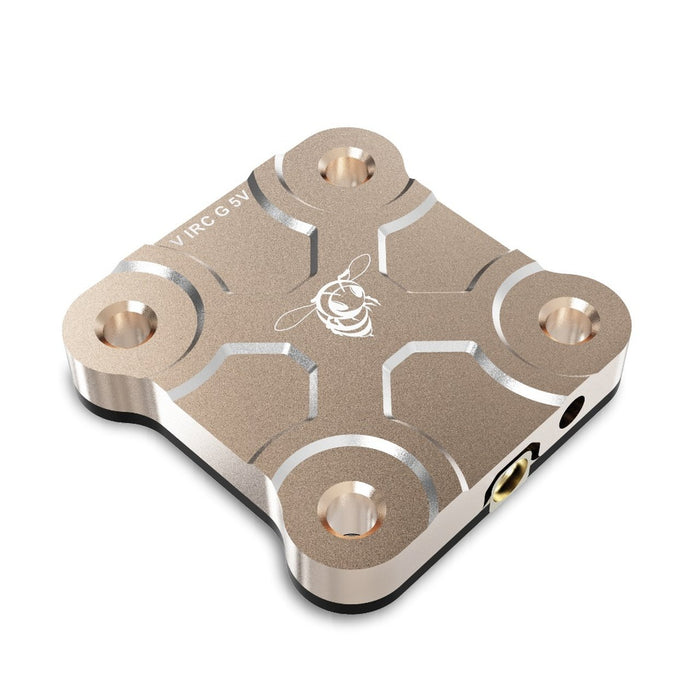

SpeedyBee TX800 5.8GHz Video Transmitter – 800mW VTX

Product Description

The SpeedyBee TX800 5.8GHz VTX is a powerful, compact video transmitter designed for long-range FPV flights and high-definition video quality. With up to 800mW output power, smart audio support, and MMCX antenna connection, this VTX is built to deliver crystal-clear analog video across various racing and freestyle environments.

It features 40-channel support, Pit Mode, and full control via SmartAudio, making it perfect for builds that require clean integration, remote tuning, and reliable signal. Whether you're flying in the field or racing through gates, the TX800 delivers solid performance and minimal latency.

Key Features:

• Adjustable output power: 25mW / 200mW / 400mW / 800mW

• 5.8GHz analog VTX with 40 channels

• Supports SmartAudio for remote VTX control via Betaflight

• Pit Mode for safe powering during setup or race staging

• MMCX antenna connector for strong signal connection

• Lightweight and compact – ideal for tight drone builds

• Wide input voltage: 7–26V (2S–6S LiPo compatible)

Specifications:

• Frequency: 5.8GHz

• Channels: 40

• Output Power: 25/200/400/800mW

• Antenna Connector: MMCX

• Input Voltage: 7–26V (2–6S LiPo)

• Power Consumption: 5V at 0.2A (typical)

• Dimensions: 36mm x 36mm x 5mm

• Weight: ~5.8g

Applications:

• Freestyle and racing drones

• Long-range analog FPV setups

• Any drone using analog video transmission

• Compact quad builds needing high-power video output

Package Includes:

• 1x SpeedyBee TX800 VTX

• MMCX to SMA antenna pigtail

• Wiring harness

• Mounting hardware

Shop more from our:

• Electronics Collection

Product Questions & Answers (FAQs)

Q1: What’s the max power output of this VTX?
A: The SpeedyBee TX800 can transmit up to 800mW, perfect for long-range FPV flights.

Q2: Does it support SmartAudio?
A: Yes, you can control VTX settings via SmartAudio through Betaflight.

Q3: What type of antenna connector is used?
A: It uses a MMCX connector, offering better durability than U.FL.

Q4: Can it handle 6S batteries?
A: Yes, the VTX supports 7–26V input, compatible with 2S to 6S LiPo batteries.

Q5: Is it suitable for racing?
A: Yes! It features Pit Mode, allowing safe powering during races without interfering with other pilots.
