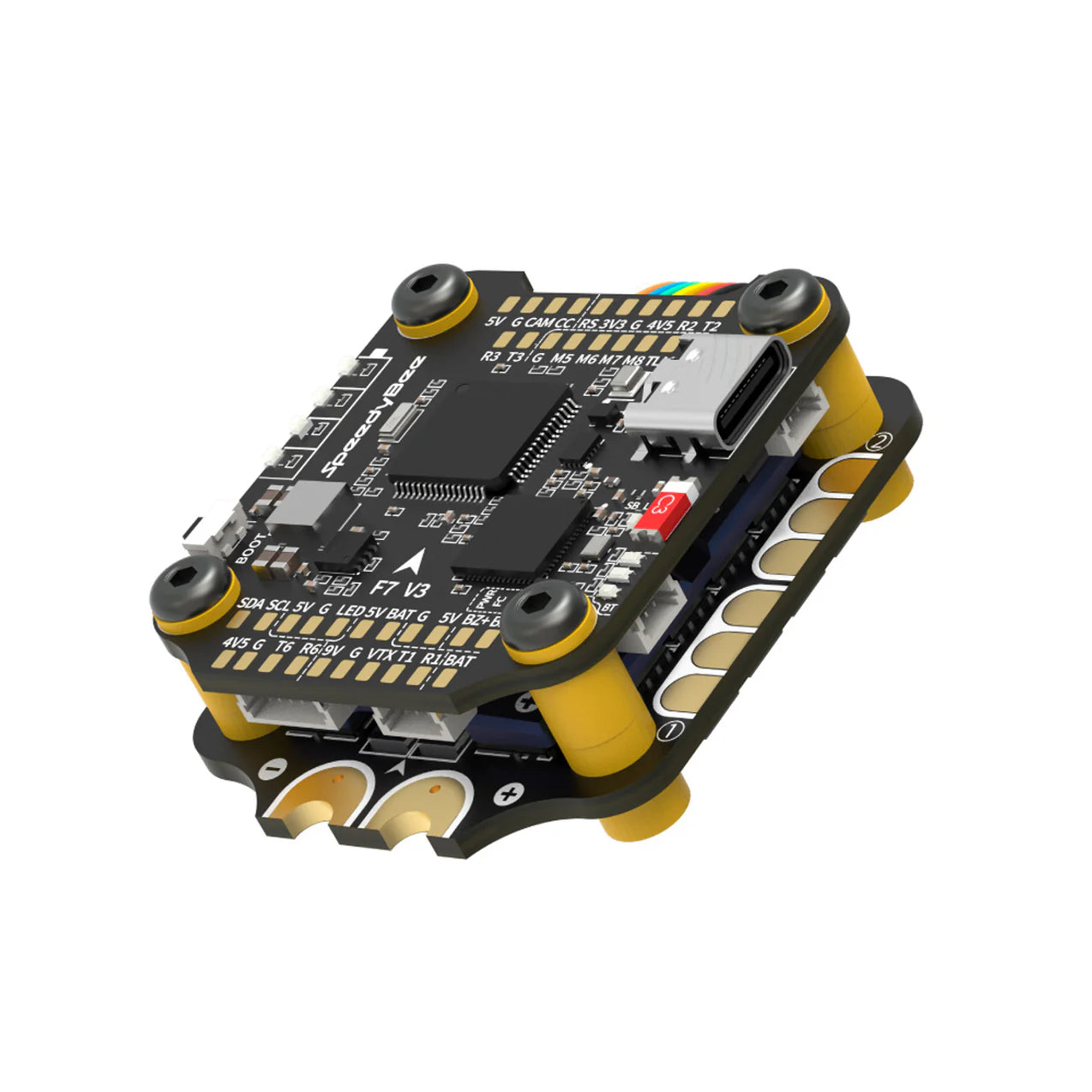

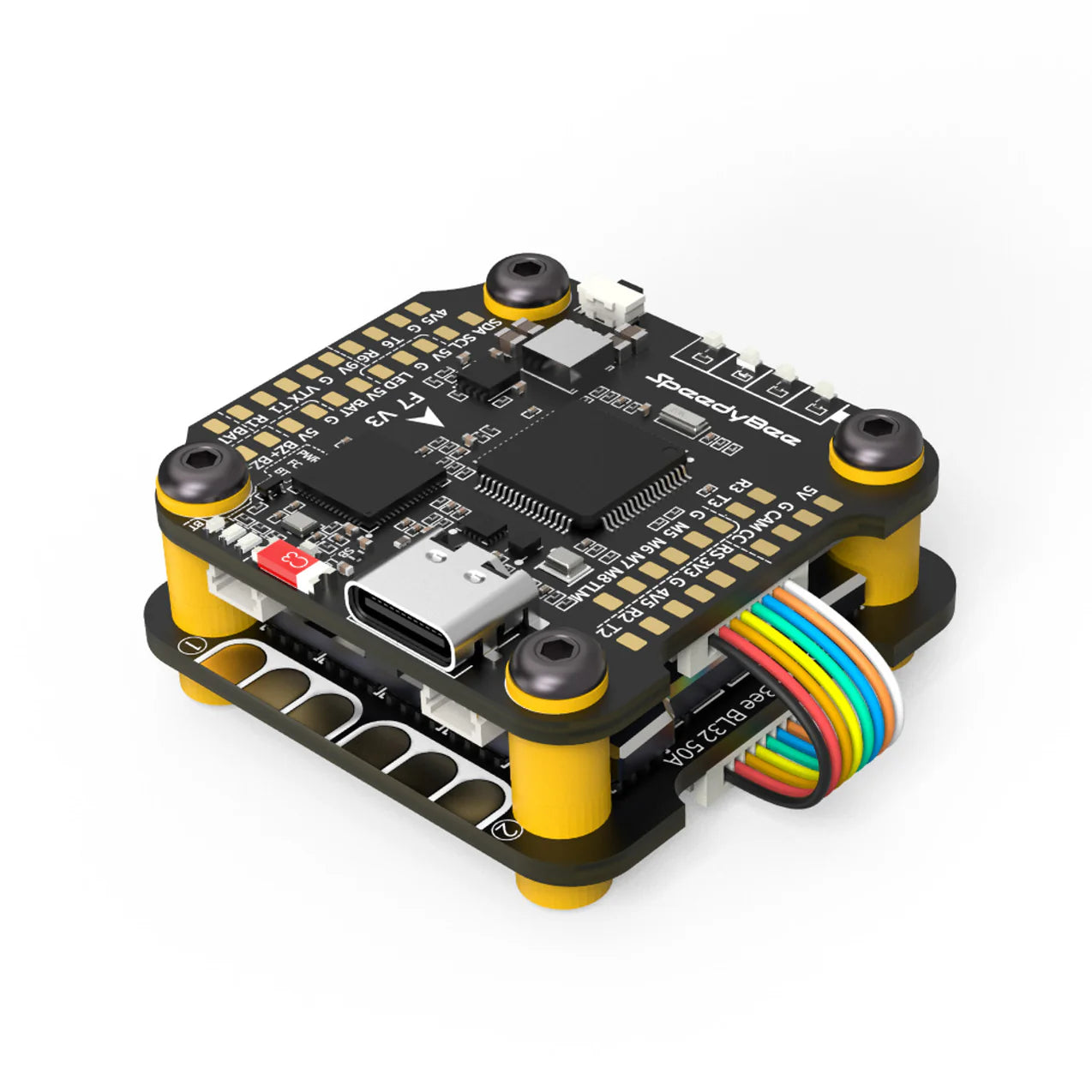

SpeedyBee F7 V3 Stack with 50A 3-6S BLHeli_32 128K ESC – 30x30mm

The SpeedyBee F7 V3 Stack with 50A BLHeli_32 128K 4-in-1 ESC is designed to offer high performance, seamless connectivity, and reliability for FPV drone pilots. Whether you’re into freestyle flying, long-range adventures, or high-speed racing, this stack provides precise control and ultra-fast response times.

Key Features:

• Advanced F7 Flight Controller:
  Powered by an STM32F722 processor, ensuring smooth performance and quick response time.
• High-Current 50A ESC:
  Supports 3-6S LiPo batteries, featuring BLHeli_32 firmware for precise throttle control.
• ICM-42688P Gyro:
  Industry-leading gyro ensures stable and accurate flight performance.
• Built-in Bluetooth & Wi-Fi:
  Easily configure settings via the SpeedyBee mobile app, no cables required.
• DJI & Digital FPV System Compatibility:
  Direct plug-and-play support for DJI O3, Caddx Vista, and Walksnail Avatar.
• Multiple BEC Outputs:
  Provides 5V@2.5A and 9V@2.5A to power peripherals like VTX and cameras.
• Heavy-Duty Heat Dissipation:
  Optimized design prevents overheating, ensuring stable power delivery.

Specifications:

F7 V3 Flight Controller:

• Processor: STM32F722
• Gyro Sensor: ICM-42688P
• USB Port: Type-C
• Built-in Barometer: Yes
• BlackBox Storage: MicroSD card slot (supports up to 32GB)
• Battery Input: 3-6S LiPo
• BEC Outputs:
  • 5V@2.5A
  • 9V@2.5A
• UART Ports: 6 full UART ports
• OSD: Supported
• Boot Button: Yes (for firmware flashing)
• Mounting Dimensions: 30.5 x 30.5mm, M4 holes

50A 4-in-1 ESC:

• Firmware: BLHeli_32 128K
• Continuous Current: 50A per channel
• Burst Current: 55A (10 seconds)
• Battery Input: 3-6S LiPo
• ESC Protocols: DSHOT600/1200, PWM, Multishot, Oneshot
• Current Sensor: Supported
• Dimensions: 45.6 x 41 x 7mm
• Mounting Dimensions: 30.5 x 30.5mm, M4 holes

Package Includes:

• 1x SpeedyBee F7 V3 Flight Controller
• 1x SpeedyBee 50A BLHeli_32 128K 4-in-1 ESC
• 1x XT60 connector with wire
• 1x Capacitor (35V, 470µF)
• 1x Set of soft mounts and screws
• 1x Full cable set
