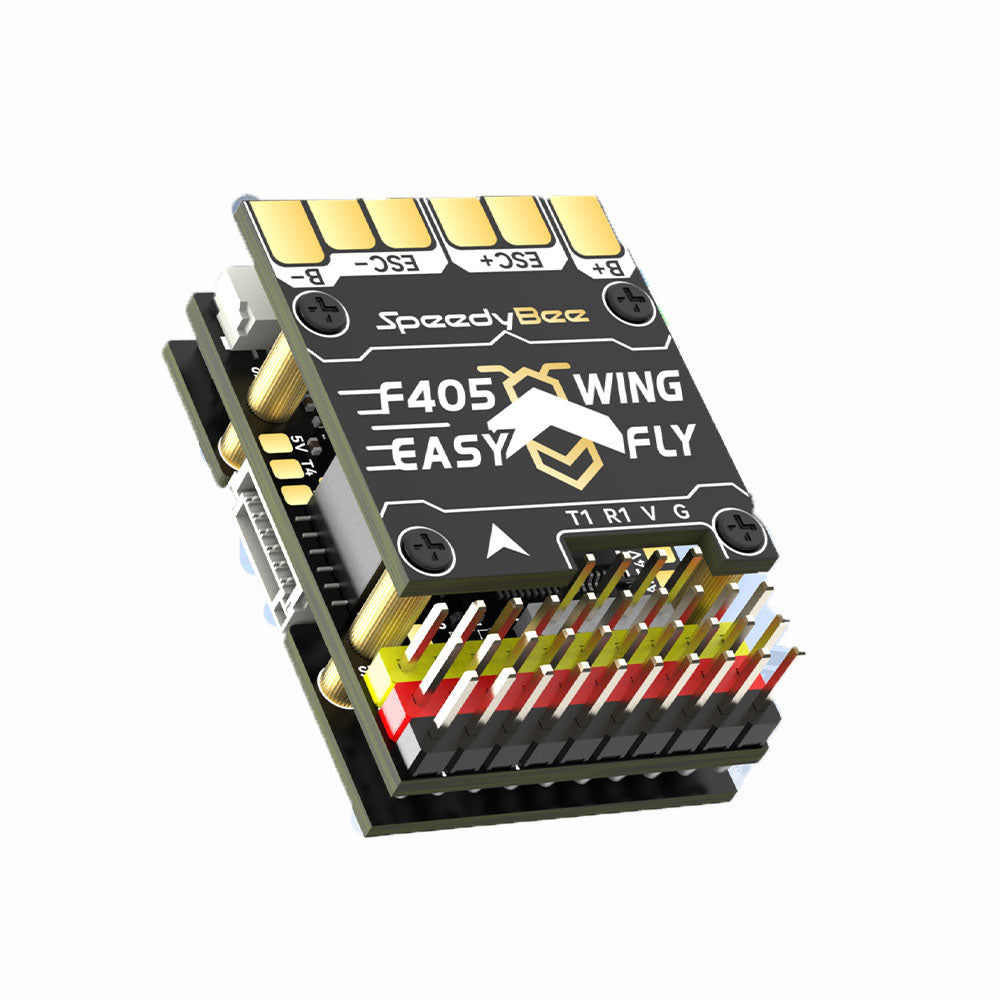

SpeedyBee F405 Wing Mini Fixed-Wing Flight Controller – iNAV Compatible

Product Description

The SpeedyBee F405 Wing Mini Flight Controller is a compact, high-performance solution for fixed-wing and VTOL aircraft. Powered by the STM32F405 processor, this board is designed for iNAV, offering exceptional flight performance and a wealth of integrated features.

This controller includes onboard barometer, OSD, and 5V/9V dual BEC outputs, allowing it to power FPV cameras, video transmitters, GPS modules, and servos with ease. Its compact design makes it ideal for tight airframes, while the integrated ports simplify installation for all types of wing platforms.

Whether you're building a long-range cruiser or a fast FPV wing, the F405 Wing Mini gives you precise control and dependable performance in the air.

Key Features:

• Designed for fixed-wing aircraft and VTOL builds

• Powerful STM32F405 MCU

• Built-in barometer and Betaflight/iNAV-compatible OSD

• Dual BEC outputs: 5V 2A and 9V 2A

• iNAV firmware support for GPS, return-to-home, stabilization, and more

• Multiple UARTs and I/O ports for GPS, SBUS, ESCs, servos, and telemetry

• Compact design for small or space-constrained builds

• Clean layout with easy soldering pads

Specifications:

• MCU: STM32F405

• IMU: ICM42688P Gyro

• OSD: Betaflight OSD (AT7456E)

• Blackbox: 16MB onboard flash

• UARTs: 6

• Barometer: DPS310

• Input Voltage: 7–30V (2–6S LiPo)

• 5V BEC Output: 2A

• 9V BEC Output: 2A

• Firmware Target: SpeedyBee F405 Wing

• Mounting Pattern: 20x20mm

• Dimensions: 35mm x 35mm

• Weight: ~7g

Applications:

• Fixed-wing FPV drones

• Long-range flying wings

• VTOL or hybrid aircraft

• iNAV-powered builds with GPS features

Package Includes:

• 1x SpeedyBee F405 Wing Mini Flight Controller

• Cables and mounting accessories

Explore more from our:

• Flight Controllers Collection

• Electronics Collection

Product Questions & Answers (FAQs)

Q1: Is this FC compatible with iNAV?
A: Yes, the SpeedyBee F405 Wing Mini is fully compatible with iNAV firmware, perfect for GPS and RTH features.

Q2: Can this be used for VTOL aircraft?
A: Absolutely. Its versatile I/O and iNAV support make it ideal for VTOL and hybrid drones.

Q3: What kind of power input does it accept?
A: It supports 7–30V input, or 2S to 6S LiPo batteries.

Q4: Does it include onboard OSD and barometer?
A: Yes, it includes Betaflight-compatible OSD and DPS310 barometer.

Q5: What size drone is this best suited for?
A: It’s perfect for compact flying wings, fixed-wing planes, and space-constrained builds.
