SpeedyBee F405 Wing APP Fixed-Wing Flight Controller – iNAV & Mobile App Support

Product Description

The SpeedyBee F405 Wing APP Flight Controller brings powerful performance and unmatched convenience to fixed-wing and VTOL drones. Designed for iNAV, it features full support for GPS, return-to-home, stabilization, and autonomous flight — all accessible via mobile app configuration using Bluetooth and Wi-Fi.

Built around the STM32F405 processor, this flight controller is packed with features including an onboard barometer, 16MB Blackbox, OSD, and dual BECs (5V & 9V). With support for PDB, GPS, servos, and camera systems, it’s a complete solution for long-range and performance-focused wing builds.

Best of all, you can configure everything wirelessly via the SpeedyBee App — no laptop needed in the field.

Key Features:

• Designed for fixed-wing & VTOL aircraft

• Compatible with iNAV firmware

• App configuration via Bluetooth + Wi-Fi

• STM32F405 MCU + ICM42688P gyro

• Built-in barometer & Betaflight-compatible OSD

• Blackbox: 16MB onboard flash

• Dual BECs: 5V 2A & 9V 2A

• Multiple UARTs for GPS, telemetry, receiver, camera, VTX, etc.

• 9 servo outputs for a wide range of builds

• Supports PWM, SBUS, CRSF, ELRS, and more

Specifications:

• MCU: STM32F405

• Gyro: ICM42688P

• OSD: AT7456E (compatible with Betaflight/iNAV)

• Barometer: DPS310

• Blackbox: 16MB onboard

• UARTs: 6

• Power Input: 7–30V (2S–6S LiPo)

• BEC Output: 5V 2A / 9V 2A

• Firmware Target: SPEEDYBEEF405WING

• Mounting: 30.5x30.5mm or 20x20mm (via adapter)

• Dimensions: 39 x 30 x 10 mm

• Weight: ~11g

Wireless Configuration:

• Supports full setup and tuning via SpeedyBee App

• No PC or USB required in the field

• Flash firmware, tune PIDs, configure GPS, servos, etc.

Applications:

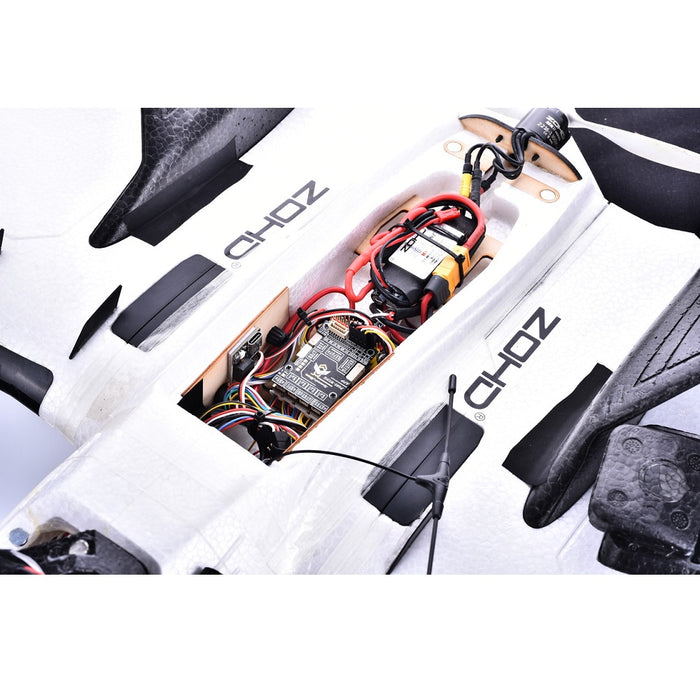

• Long-range fixed-wing builds

• VTOL and hybrid aircraft

• GPS-guided autonomous flight setups

• FPV planes with on-screen data and SmartAudio

Package Includes:

• 1x SpeedyBee F405 Wing APP FC

• XT60 to 2-pin power cable

• Servo extension cable

• Bluetooth antenna & hardware

Explore more in:

• Flight Controllers Collection

• Electronics Collection

Product Questions & Answers (FAQs)

Q1: Does this FC support iNAV?
A: Yes, it’s designed for iNAV and supports GPS, RTH, barometer, and full flight autonomy features.

Q2: Can I configure this FC without a PC?
A: Yes! Use the SpeedyBee App with built-in Bluetooth/Wi-Fi to set everything up wirelessly.

Q3: What aircraft types can I use this with?
A: It’s ideal for fixed-wing planes, VTOLs, and long-range FPV builds.

Q4: Does it have servo outputs?
A: Yes, it includes 9 PWM servo outputs, suitable for elevons, flaps, rudder, and more.

Q5: What battery voltage is supported?
A: It accepts 7–30V input (2–6S LiPo) with onboard 5V and 9V BECs for peripherals.
