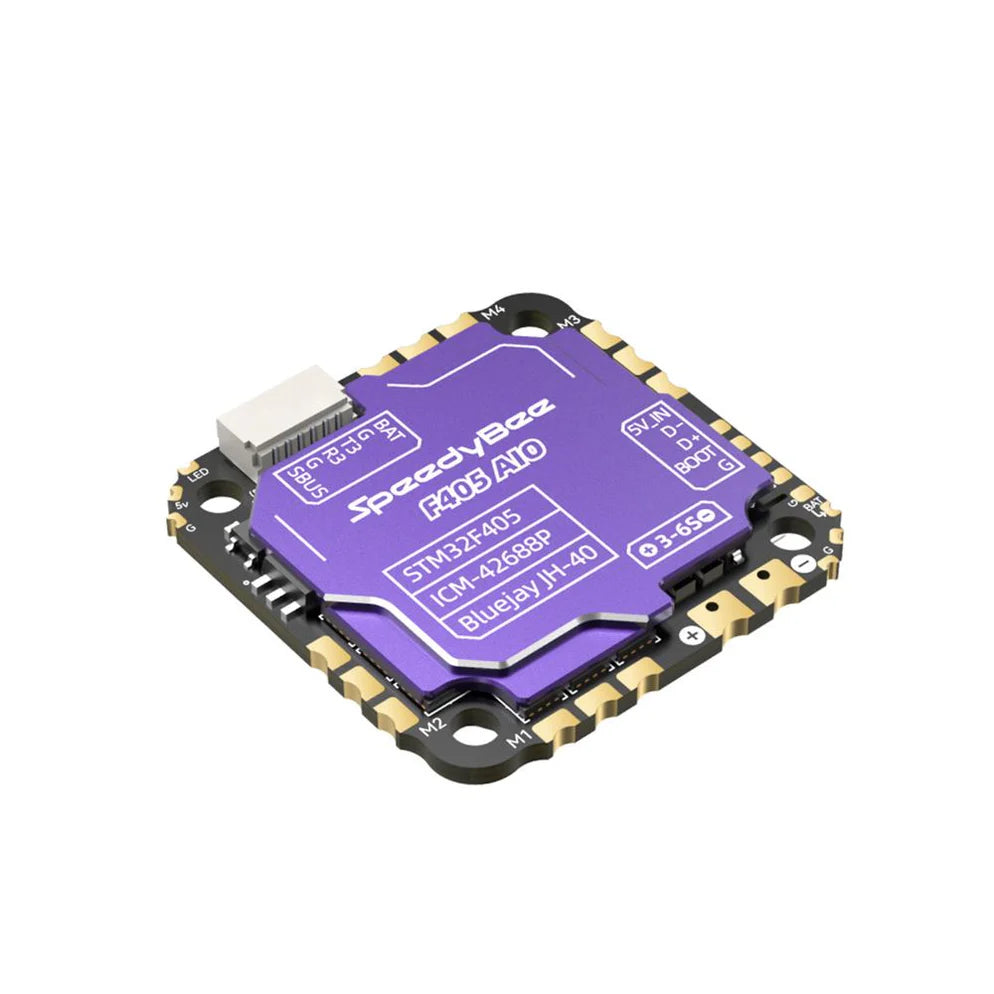

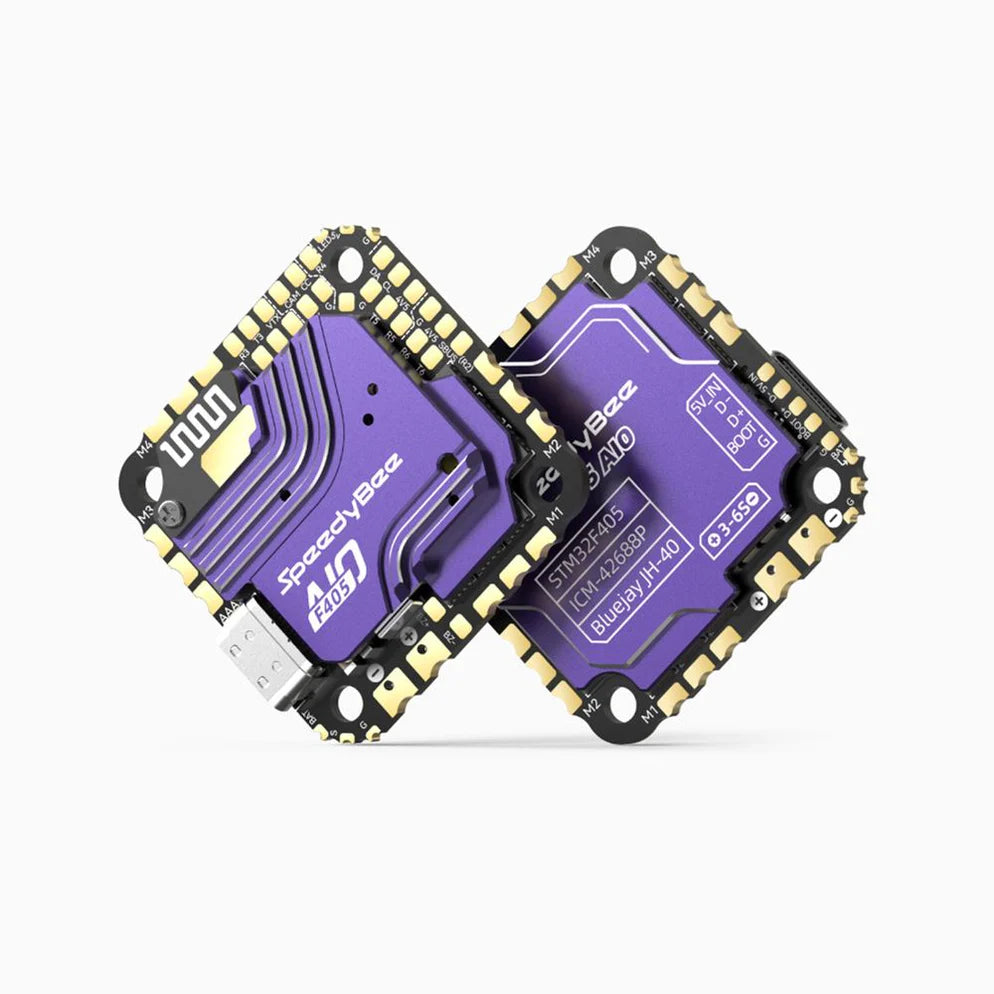

The SpeedyBee F405 40A Bluejay 3-6S AIO Flight Controller/ESC is an all-in-one solution designed to enhance your FPV drone's performance with seamless integration and advanced features. Its compact 25.5x25.5mm mounting pattern makes it ideal for space-constrained builds, ensuring a streamlined setup for both enthusiasts and professionals.

Key Features:

  • Integrated Design:
    Combines a flight controller and 40A ESC into a single unit, simplifying installation and reducing weight.

  • High-Performance Components:
    Equipped with an STM32F405 MCU and ICM-42688P gyro, offering precise flight control and stability.

  • Versatile Power Support:
    Compatible with 3-6S LiPo batteries, catering to a wide range of drone configurations.

  • Enhanced Connectivity:
    Features Bluetooth BLE 2.0, allowing for wireless firmware updates and easy configuration via the SpeedyBee app.

  • DJI Air Unit Compatibility:
    Supports direct connection to DJI O3, RunCam Link, and Caddx Vista units without altering wire configurations.

  • Comprehensive BEC Outputs:
    Provides multiple voltage outputs, including 4.5V@1A and 5V@2A, to power various peripherals.

  • Durable Construction:

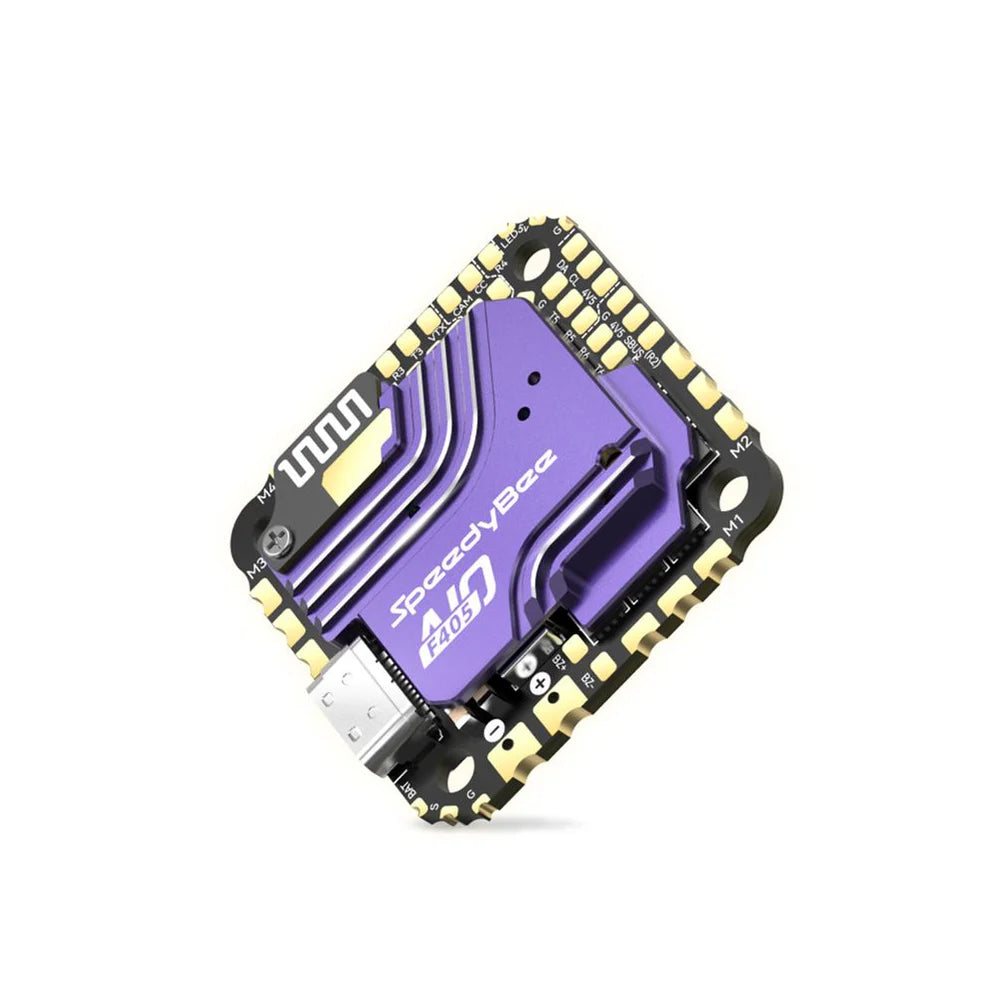

    Includes an aluminum heat sink for efficient heat dissipation and protection of sensitive components.

Specifications:

Flight Controller:

  • MCU:
    STM32F405

  • Gyro:
    ICM-42688P

  • USB Port:
    Type-C

  • Barometer:
    SPA06-003

  • OSD:
    Supported

  • Bluetooth BLE:
    Supported, Bluetooth speed enhancement - 2.0

  • Wireless Firmware Update:
    Supported (no need to press physical BOOT button)

  • BlackBox Memory:
    8MB

  • Input Voltage:
    3S-6S LiPo battery

  • BEC Outputs:

    • 4.5V Output: Two outputs; total current 1A
    • 5V Output: Three outputs; total current 2A (shared with 4.5V)

  • UART Ports:
    4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])

  • I2C Support:
    Supported

  • LED Pads:
    Supported, used to control WS2812 LED lights

  • Buzzer Pads:
    Supported, BZ+ and BZ- pads

  • Boot Button:
    Supported, press and hold while powering on to enter DFU mode for firmware recovery

  • Firmware Compatibility:
    BetaFlight (Default), INAV

  • Mounting:
    25.5 x 25.5mm, 3mm hole diameter

  • Dimensions:
    33.0mm (length) x 33.0mm (width) x 8mm (height)

  • Weight:
    13.6g (including CNC components)

ESC:

  • Input Voltage:
    3-6S LiPo battery

  • Continuous Current:
    40A

  • Burst Current:
    45A (10s)

  • ESC Protocol:
    Supports DSHOT600/300; other protocols may cause severe errors, please use with caution.

  • Output Voltage:
    VBAT battery voltage (used to power the flight controller)

  • Current Sensor:
    Supported (Scale = 254, Offset = 0)

  • Firmware:
    Bluejay JH-40 48kHz

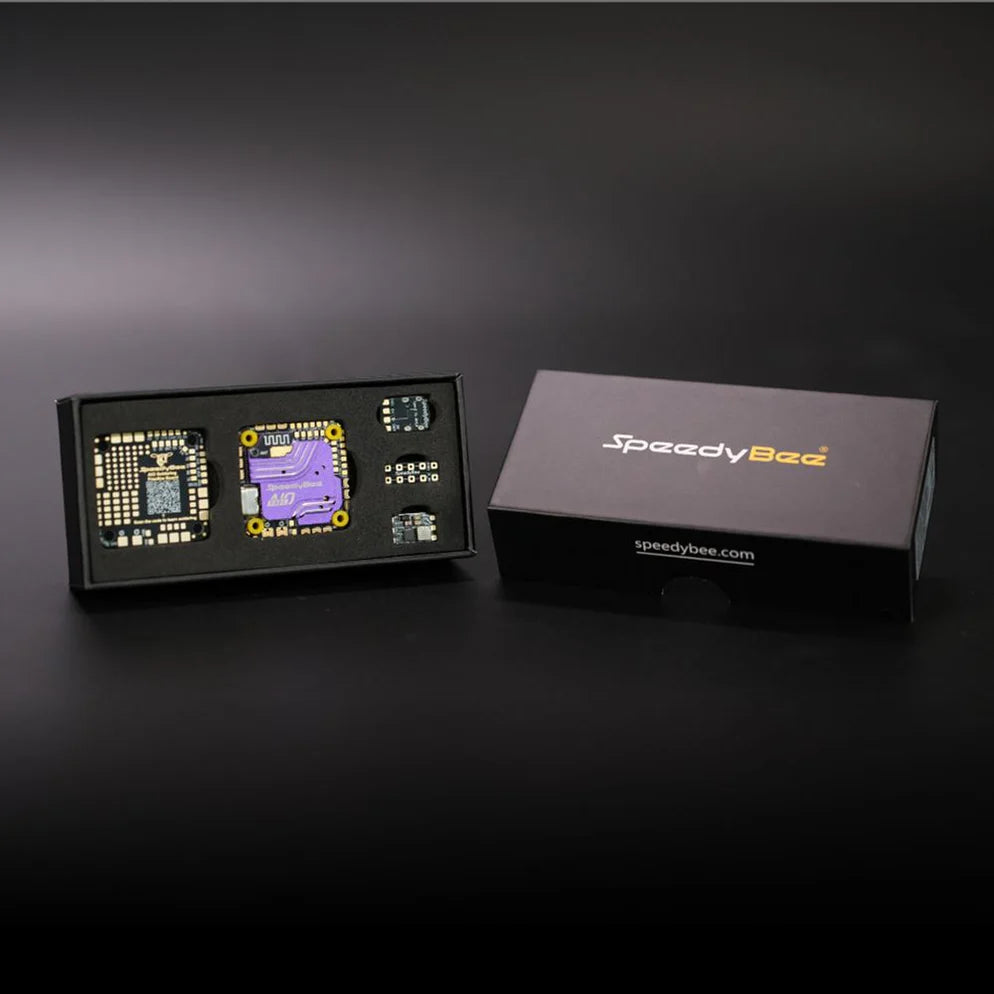

Package Includes:

  • 1x SpeedyBee F405 40A AIO Flight Controller/ESC
  • 1x Set of soft mounts
  • 1x Set of screws
  • 1x Set of cables
  • 1x XT30 with cable
  • 1x Capacitor
  • 1x External BEC
  • 1x External USB-C connector
  • 1x Power expansion board
  • 1x Soldering practice board

Enhance your FPV drone's performance with the SpeedyBee F405 40A Bluejay AIO Flight Controller/ESC, offering a compact design and advanced features for a superior flying experience.
