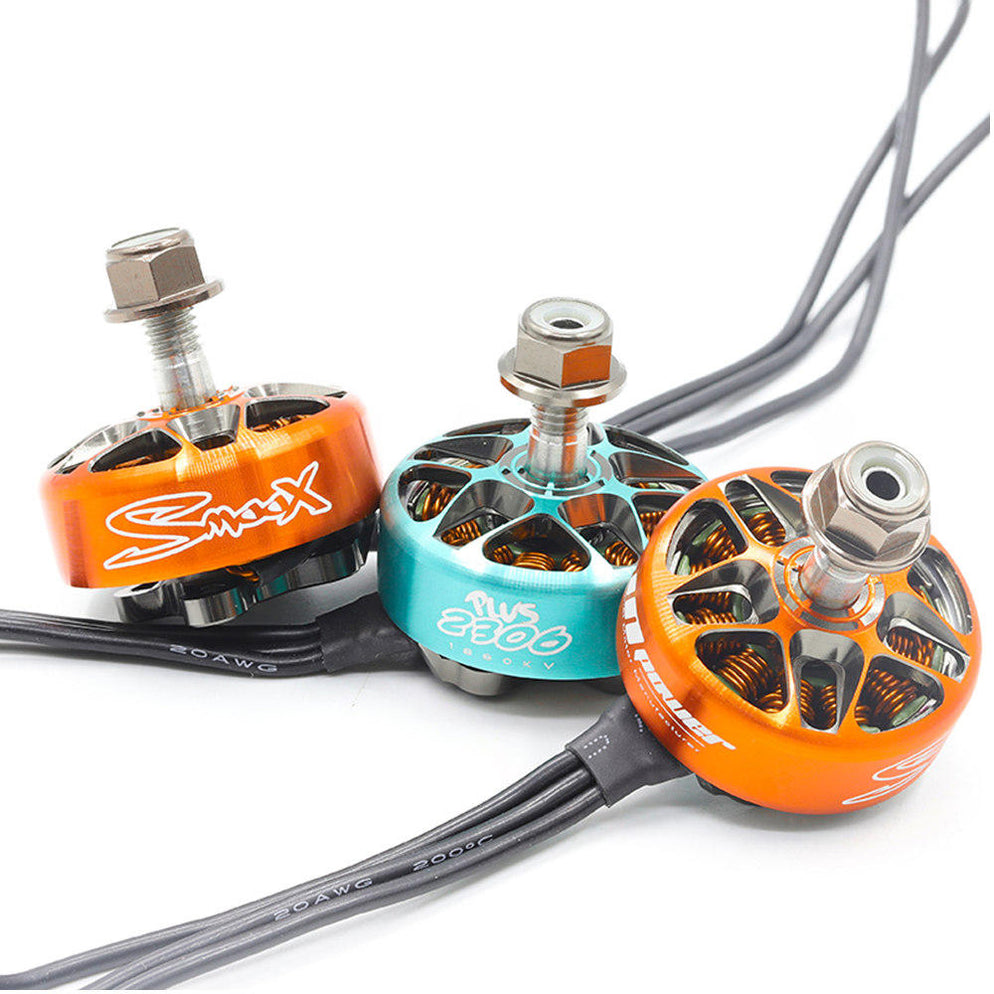

RCINPower SmooX 2306 Plus 1880KV Brushless FPV Drone Motor (1 pc) Orange
RCINPower SmooX 2306 Plus 1880KV Brushless FPV Drone Motor (1 pc) Orange
Regular price
$29.99 USD
Regular price
Sale price
$29.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
After the huge success of the 2207 Plus motors, RCINPOWER just released these super pretty 2306 plus motors (PLUS stands for 0.5mm) so these motors are basically 2306.5 size.
Specifications:
- Configuration: 12N14P
- Stator Diameter: 23mm
- Stator Length: 6.6mm
- Shaft Diameter: 4mm ( Hollow)
- Idle Current(10V): 1.35A @ 1880KV ; 1.95A @ 2280KV ; 2.3A@2580KV
- Max. Con. Power (5S): 900W @ 1880KV; 850W @ 2280KV ; 1100W@2580KV
- Internal Resistance: 49mΩ@ 1880KV ; 40mΩ @ 2280KV ; 30mΩ @2580KV
- Max. Current(5s): 36A @ 1880KV ; 40A @2280KV ; 55A @ 2580KV
- Cable Length: 15cm

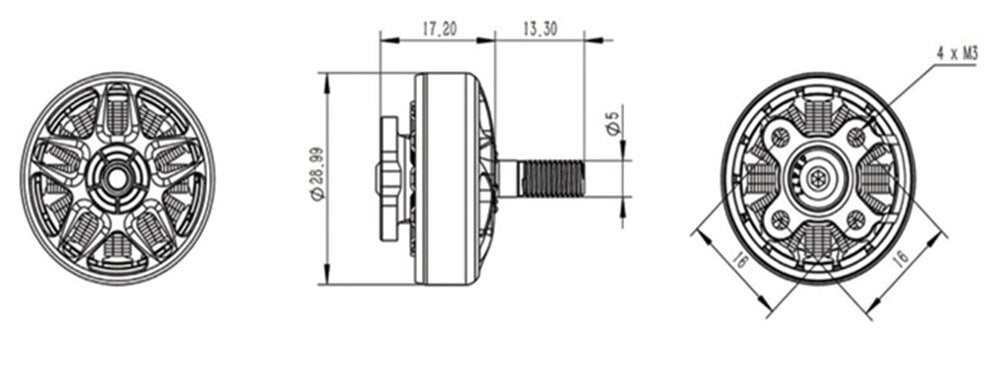

- Motor Dimension(Dia*Len):29x30.5mm
- Weight: 33g ( 3cm wire)
Package includes:
- 1x SmooX 2306 Plus Motor
- 1x Motor Nut
