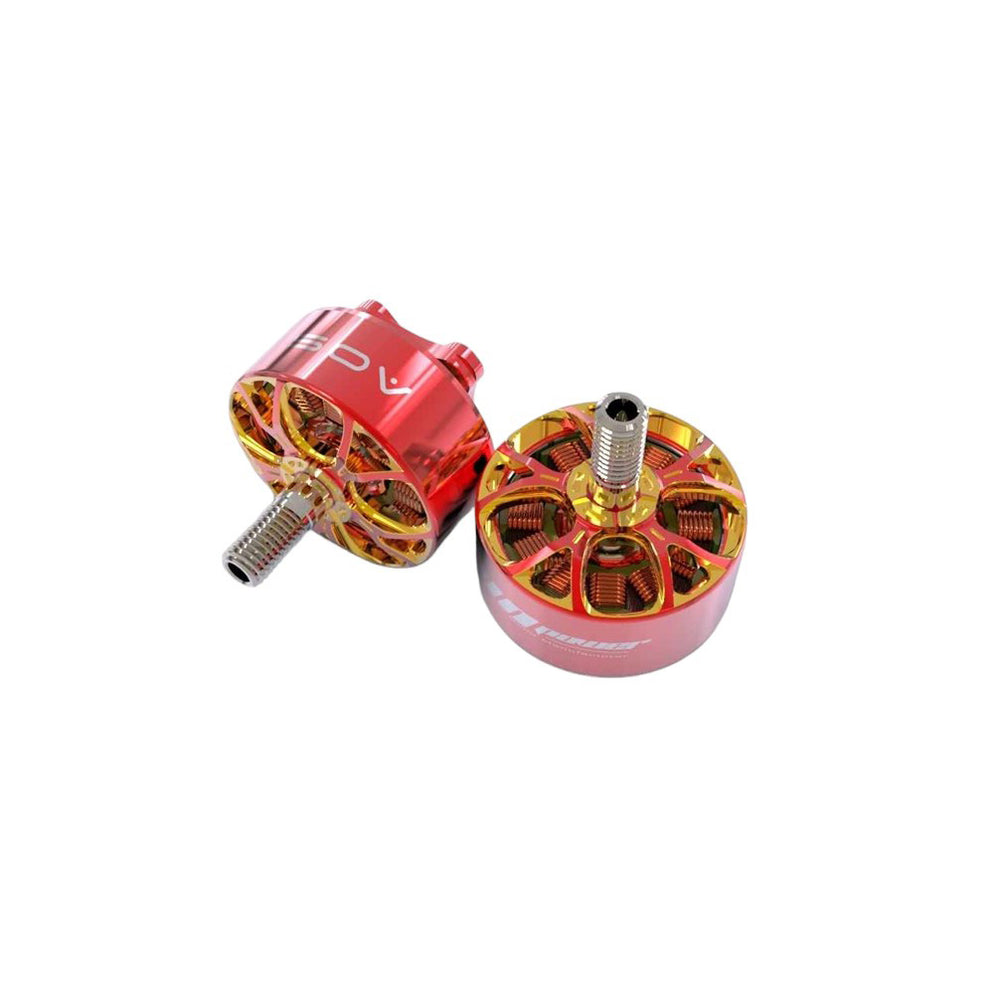

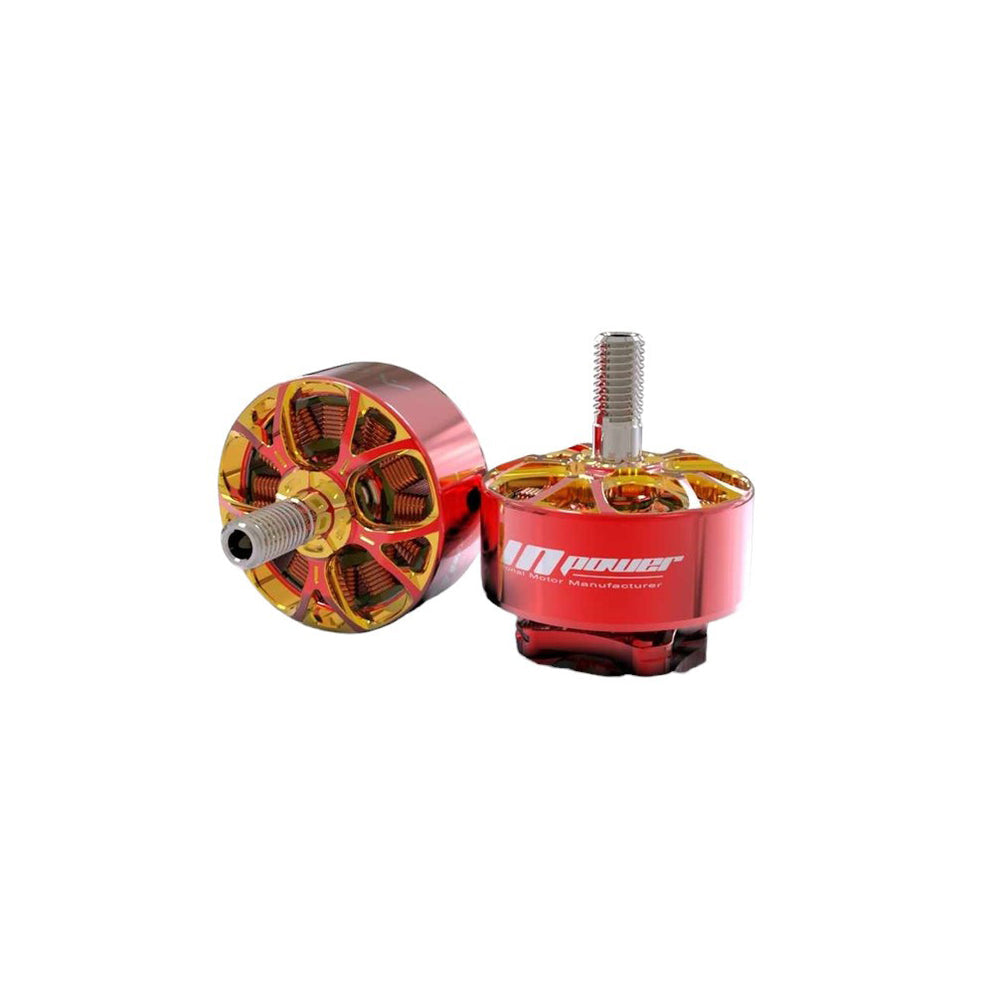

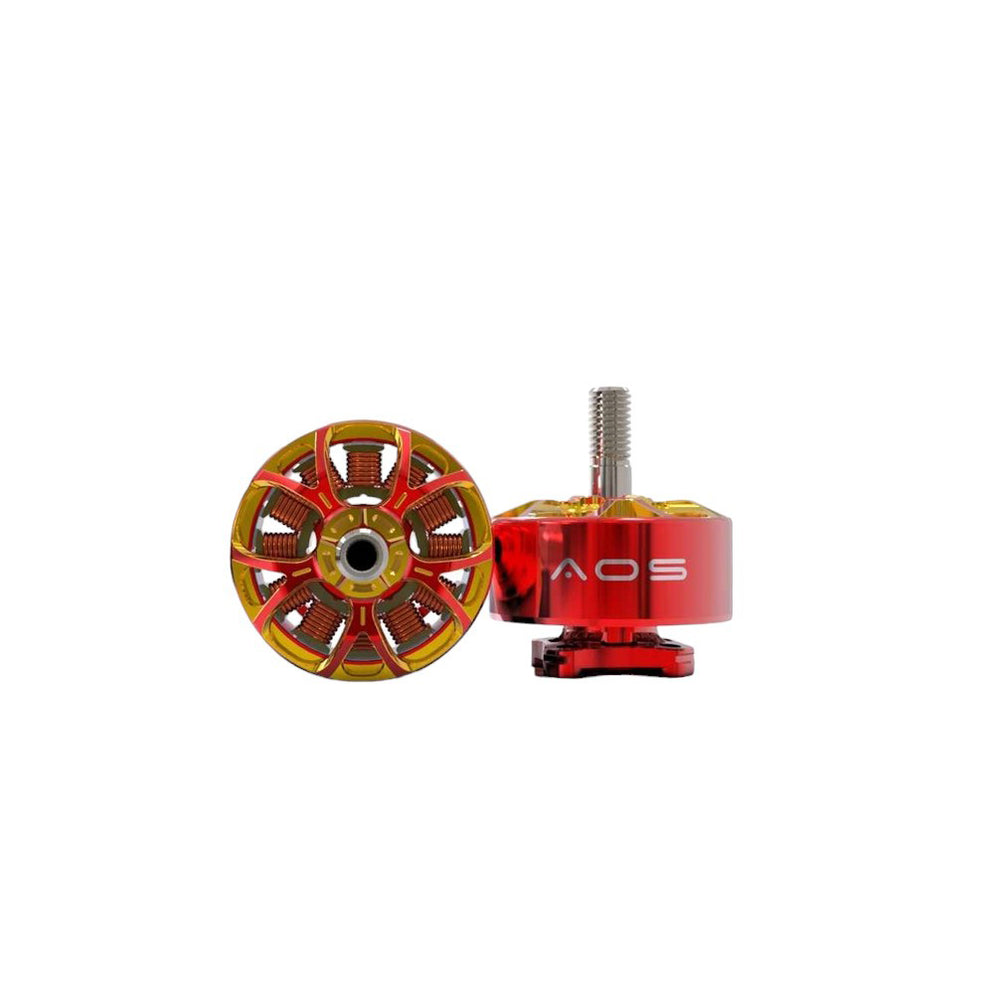

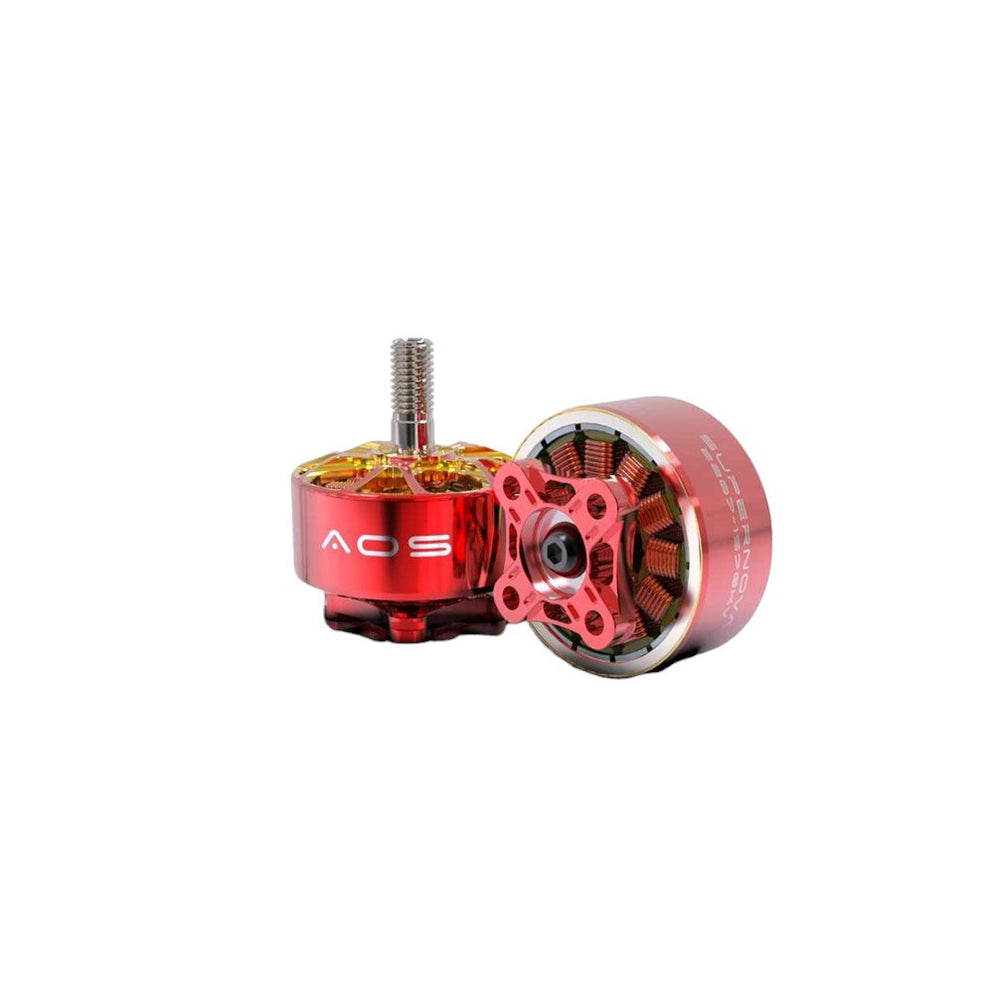

RCINPower AOS Supernova 2207 1570KV 8S Brushless FPV Drone Motor (1 pc)

Meet the AOS Supernova 2207, the motor that redefines power and efficiency for your 5” FPV drone. This new 1570KV variant is optimized for 8S battery voltage, offering unparalleled top-end thrust and power while maintaining exceptional efficiency.

Recommended Setup

To fully enjoy the precise low-throttle control and explosive top-end power of the AOS Supernova 2207, Chris Rosser suggests using throttle expo in Betaflight:

• Throttle MID: 0
• Throttle EXPO: 0.20 to start
• Adjust EXPO to increase precision at low throttle or to sharpen throttle response.

Features:

• KV Rating: 1570KV, perfect for 8S battery voltage.
• Thrust and Torque: Delivers 37.6% more thrust and 52.9% more torque compared to standard 5” motors on 6S.
• Efficiency: 3.5% higher efficiency, tested on HQ 5×4.5×3 V1S props.
• Response Time: 60.9% faster response, ensuring sharp and precise control.

Specifications:

• KV: 1570

• Configuration: 12N14P
• Shaft Diameter: 4mm (Hollow)
• Motor Dimensions: Φ27.6*19.5mm
• Weight: 31g (2cm Wire)
• Idle Current @ 10V: 1.1A
• Battery Compatibility: 8S LiPo
• Max Continuous Power (5S): 1414W
• Internal Resistance: 65mΩ
• Max Current (5S): 44.2A
• Max Efficiency Current: (4-9A) > 86%

Package Includes:

• 1 x AOS Supernova 2207 1570KV Motor
• Screws and hardware for installation
