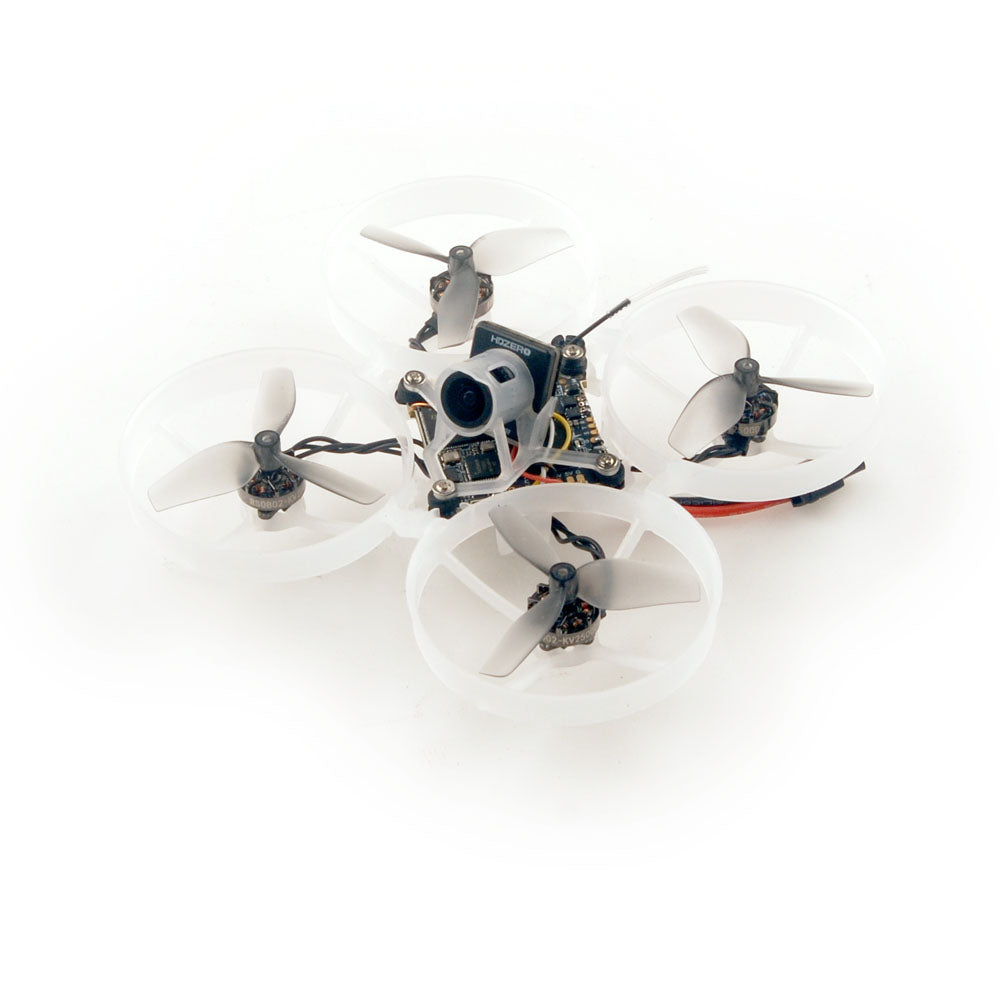

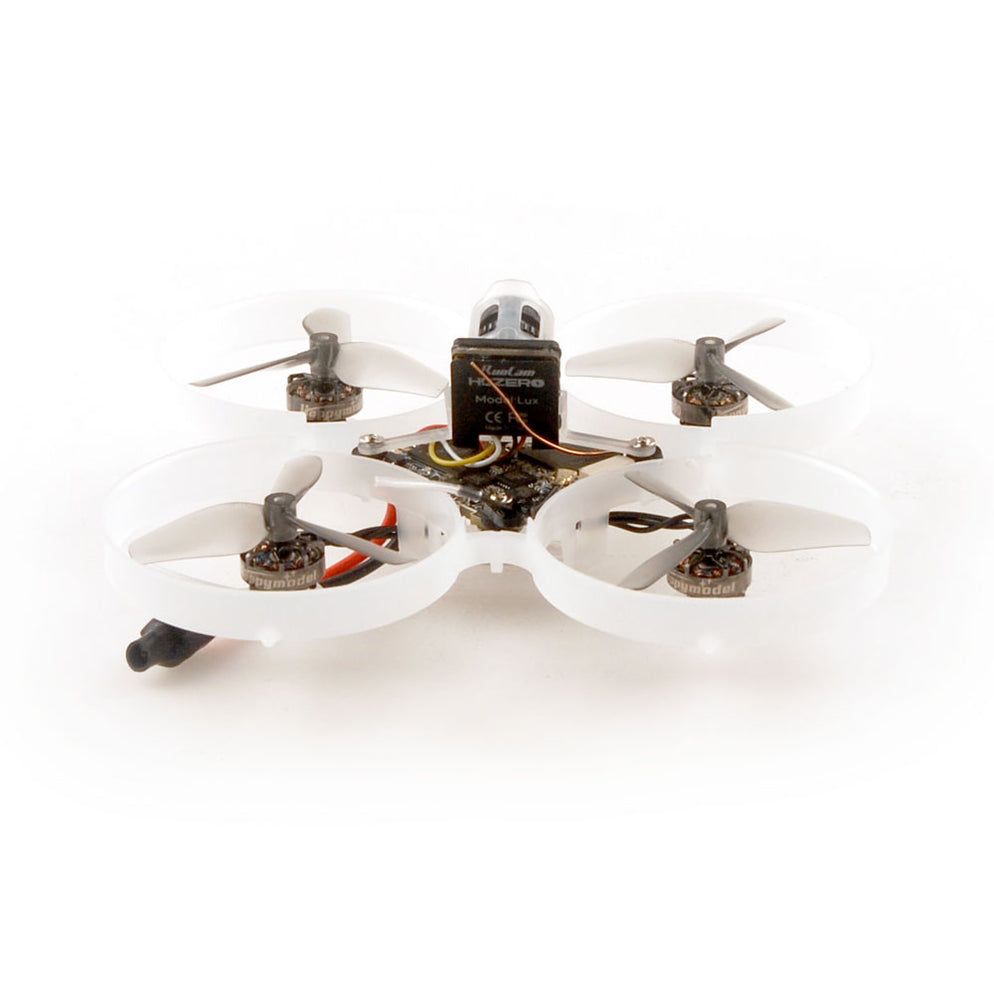

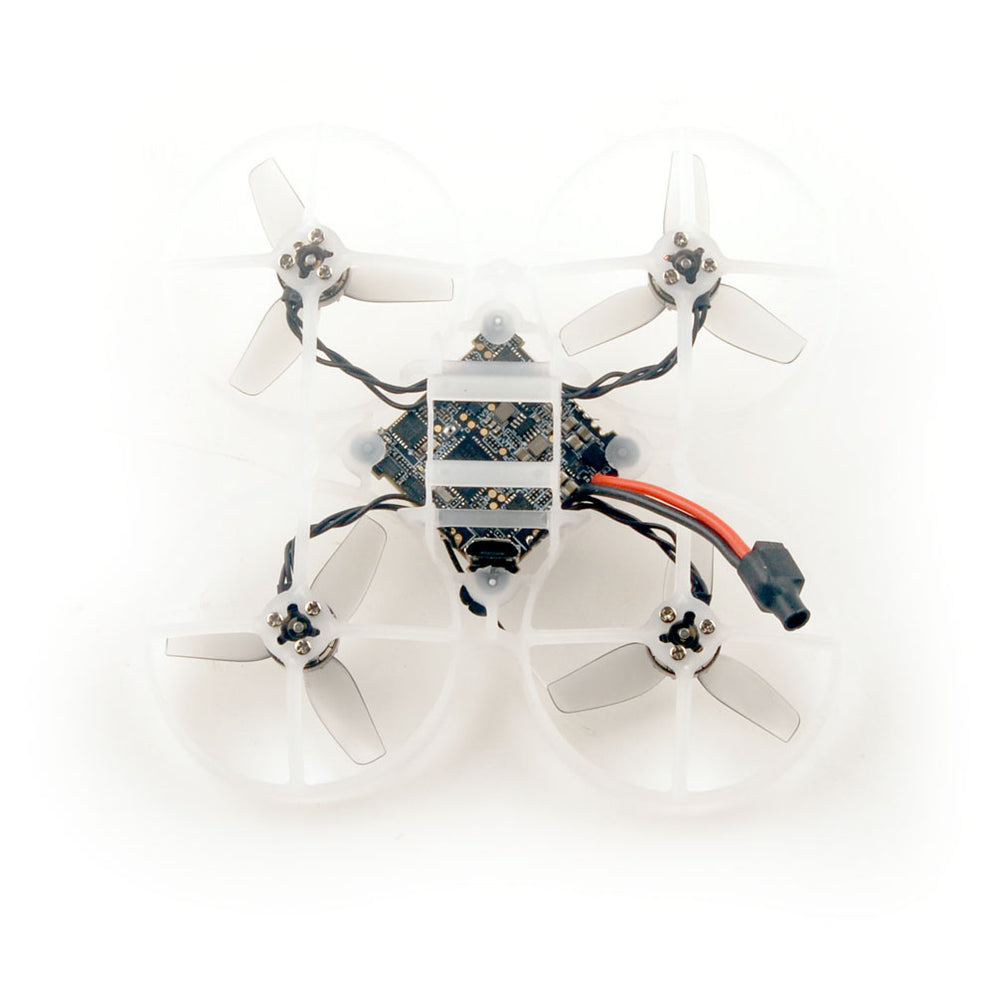

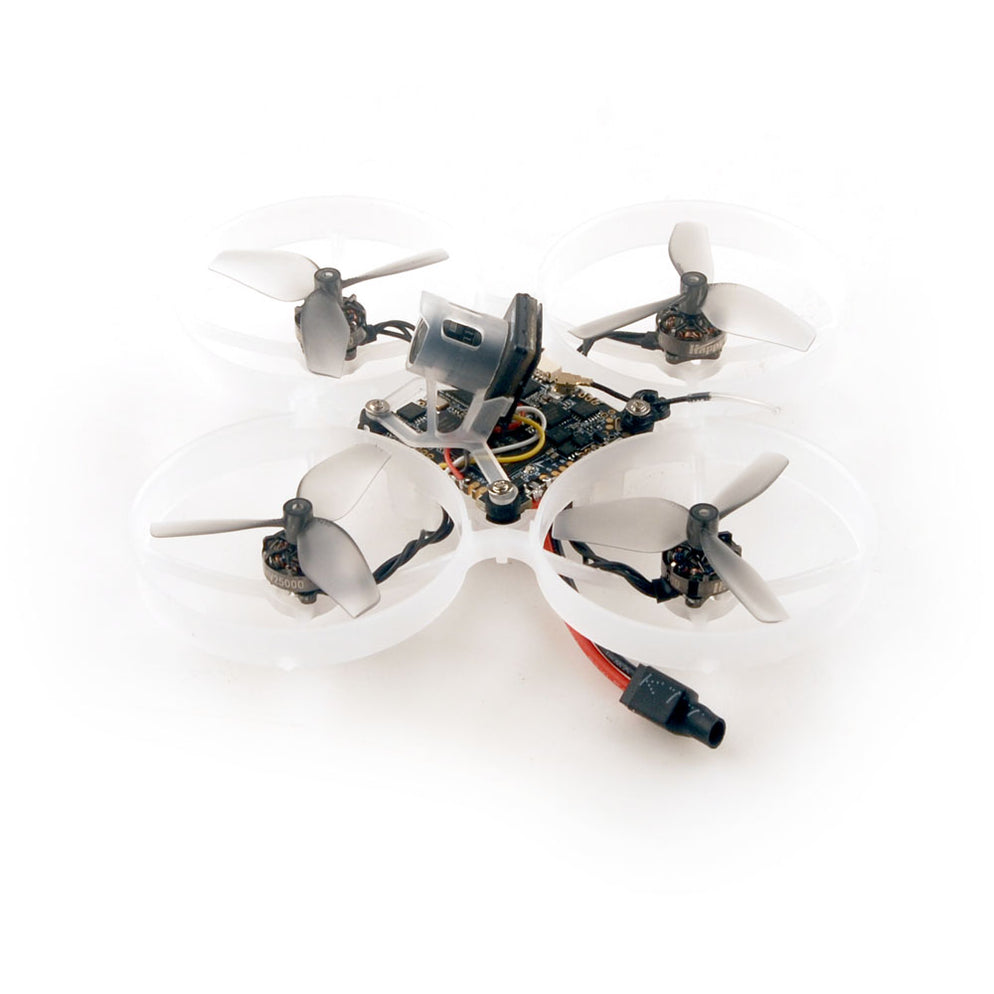

Happymodel Mobula7 Freestyle BNF is a 75mm ultra light BNF using the HDZero AIO5 designed for freestyle whooping. It is only 24.5 grams. High Speed RS0802 KV25000 brushless motors with HQPROP 1.6inch Tri-blades ultra light propellers, got a better freestyle experience.

The new RS0802 motors comes with a new unibell design, use 1.5mm shaft and include PCB bottom plate, high efficiency and much more reliable.

Features:

• X12 5-IN-1 AIO flight controller built-in 2.4G ELRS V2.0 and Openvtx

• VTX Power up to 400mw

• ELRS V2.0 Support

• NEW RS0802 KV20000 motors

• Runcam/HDZero Lux Camera

• Smooth and powerful

• Compatible for 1S Lipo/LIHV

• Recommend 1S 450mah/550mah/650mah battery(Not include)

Specifications:

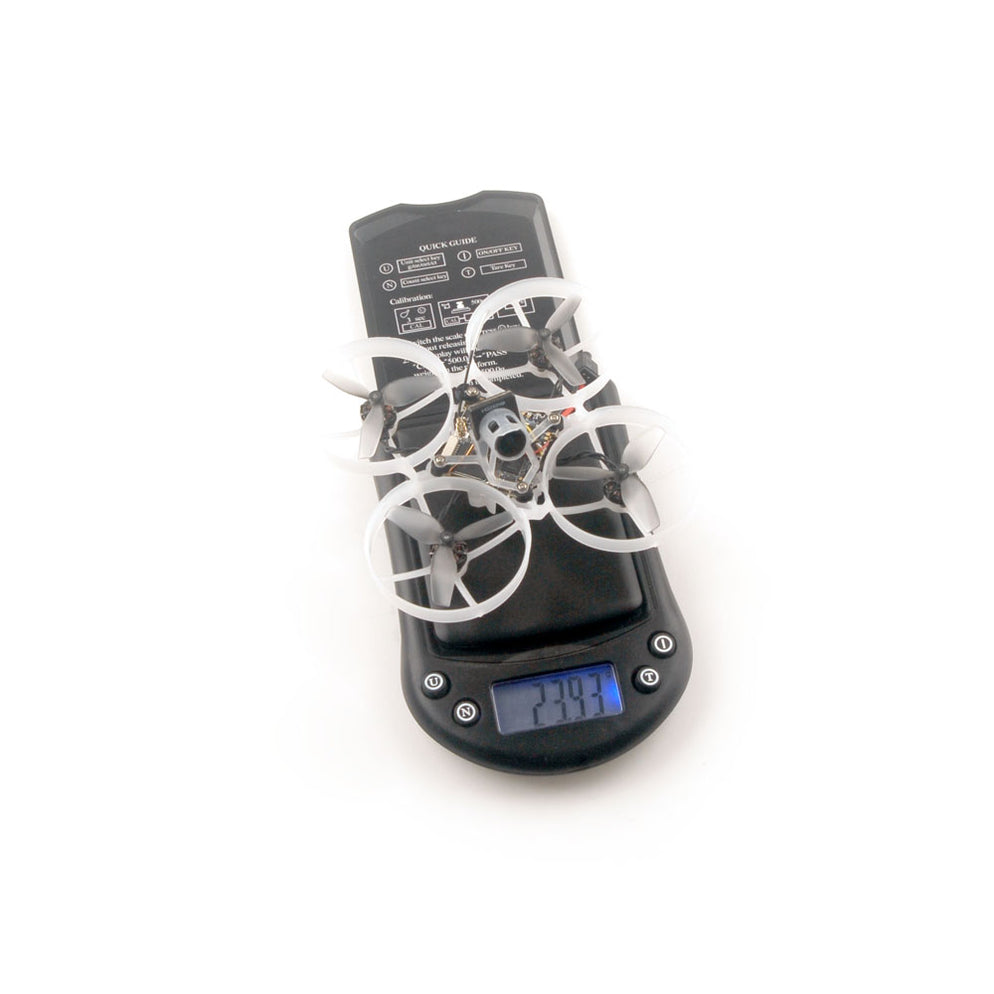

• Weight: 24.5g

• Recommended Battery: 1S 450mah/550mah/650mah

• Propeller Size: 40mm

AIO flight controller

• MCU: STM32F411 (100MHz, 512K Flash)

• Gyro: ICM42688P

• On board voltage and amperage meters

• Built-in 5A(each) BLHeli_S 4-in-1 ESC

• Bluejay ESC firmware pre-installed

• Built-in 5.8G HDZero VTX

• Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0

• Built-in 5V 1A BEC

• Board size:28.5×28.5mm with a 25.5×25.5 mounting hole size

• Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 out of factory

• HDZero Lux Camera

• Sensor size: 1/2 inch

• Resolution: 720p60 4:3 and 16:9

• FOV: D:155° H:126° V:94°(4:3)

• FOV: D:145° H:126° V:70°(16:9)

• WDR

Motors

• Model:RS0802

• Kv:25000

• Stator diameter: 8mm

• Stator length:2mm

• Shaft diameter: Φ1.5mm

• Weight:2.0g

Default factory dump file for betaflight 4.4.2

Dump file for Betaflight 4.5.1 compatible with Mobula6 and Mobula7 Freestyle HD 1s Version

3D Print file for Antenna fixed holder:

Antenna fixed holder for Mobula6 and Mobula7 freestyle HD

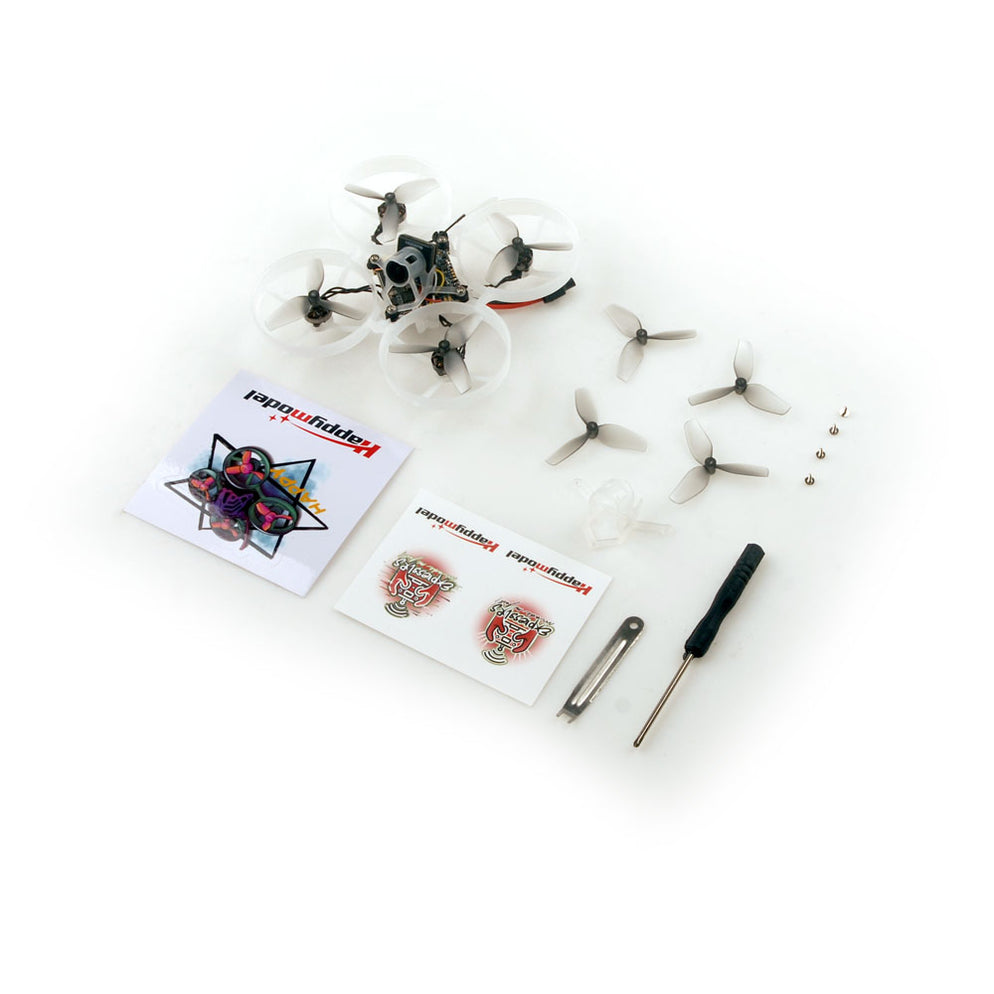

Package Includes:

• 1 x Happymodel Mobula7 Freestyle BNF 1S

• 1 x Spare canopy

• 1 x Spare propeller(set)

• 1 x Screw driver

• 1 x propeller disassemble tool
