EP1 ELRS receiver is the hottest ExpressLRS receiver since it was released. Now the new TCXO version EP series receiver apply “temperature compensated crystal oscillator”, accurate frequency and excellent performance in extreme temperature environments make these TCXO much reliable.

Specifications:

• Type: ISM2.4GHz

• ESP8285 MCU

• SX1280(SX1281)IMLTRT RF Module

• Omni directional antenna

• Frequency Range: 2400 MHz to 2500 MHz

• Receive refresh rate: 25HZ~500Hz

• Working voltage: 5v

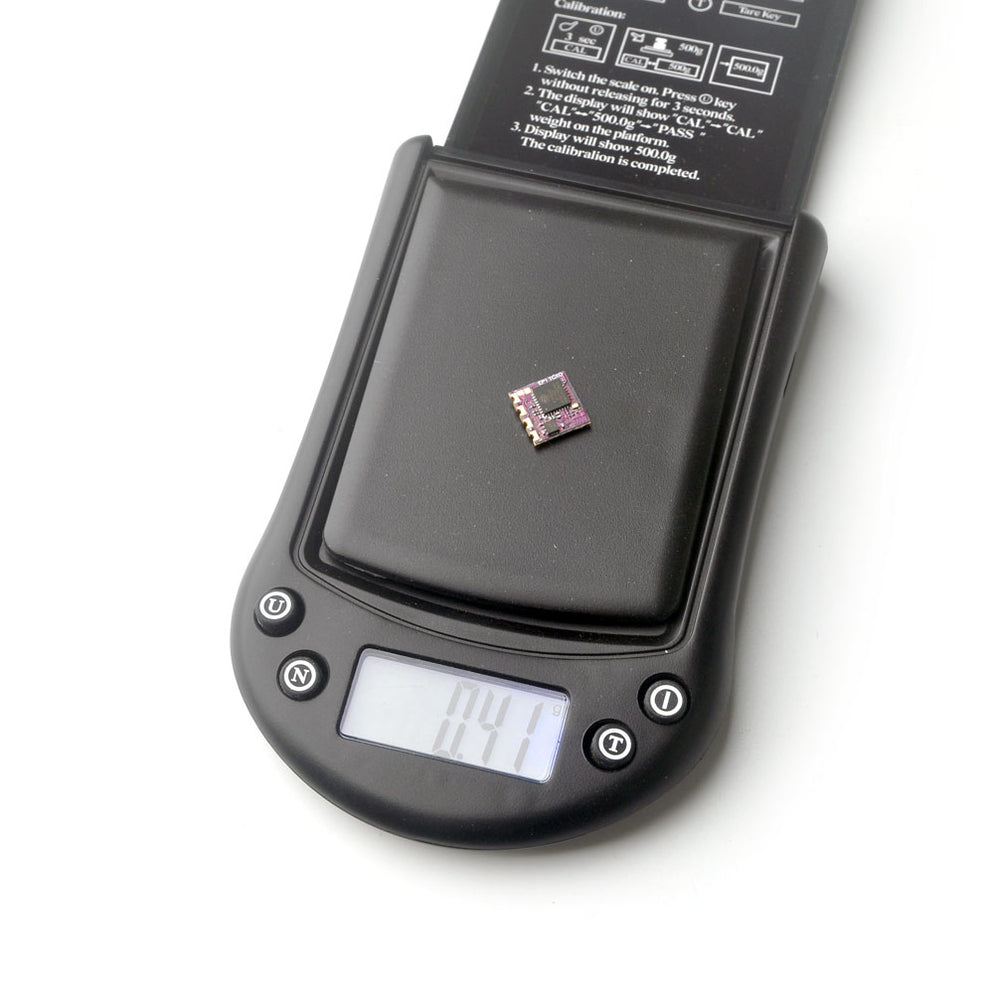

• Weight: 0.41 gram(without antenna)

• Dimension: 10mm*10mm*6mm

• Peak gain: 2.23dB

• Default Firmware out of factory: HappyModel_EP_2400_RX V2.2 version

• Built-in a TCXO (temperature compensated crystal oscillator)

Package Includes:

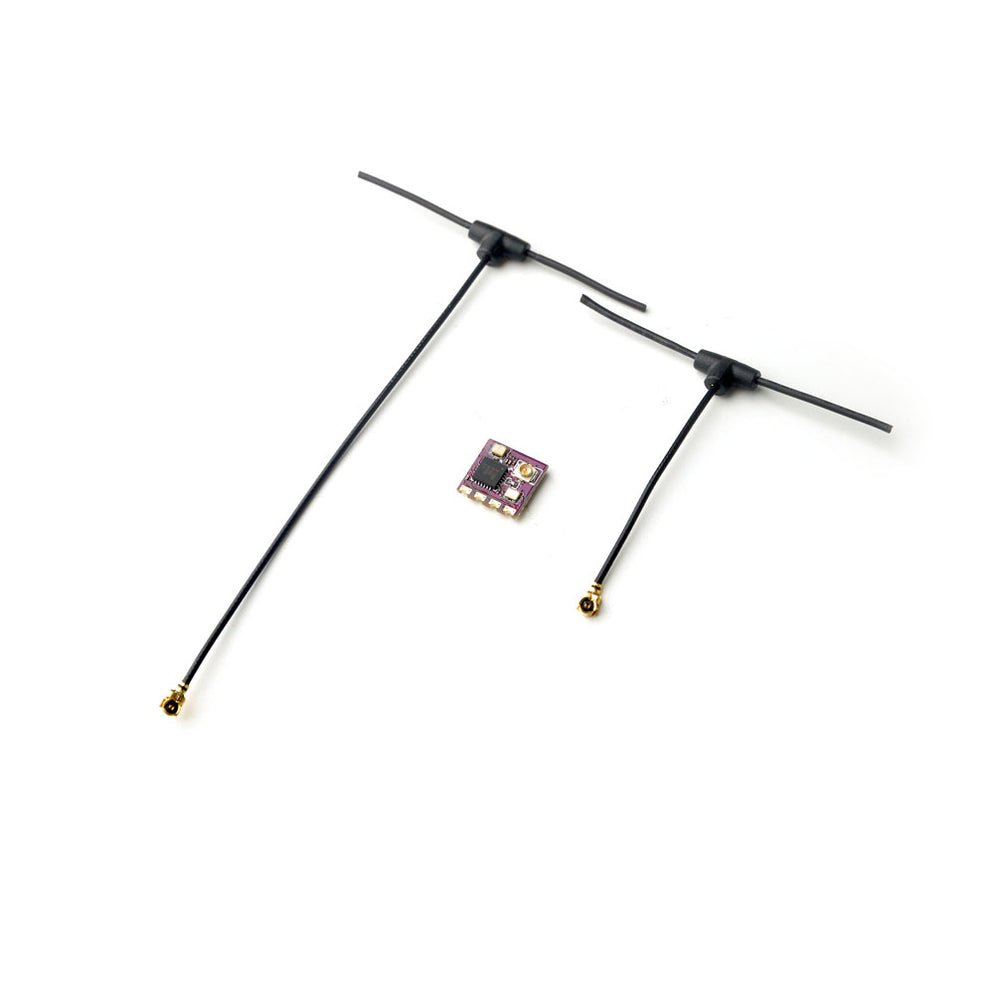

• 1 x Happymodel 2.4G ExpressLRS EP1 TCXO RX Receiver Module

Disclaimer:

For any warranty issues, contact Happymodel directly for assistance. Please keep this in mind before purchasing this product. Happymodel support email: info@happymodel.cn
