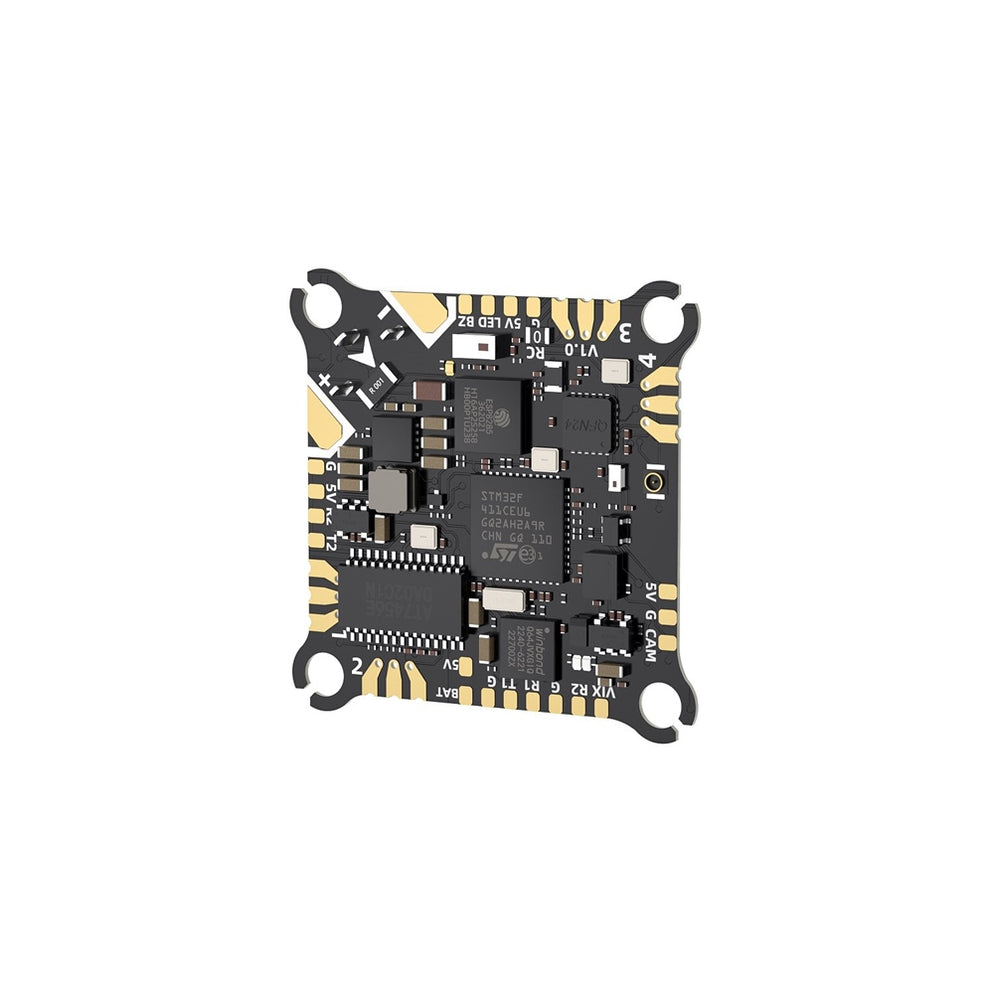

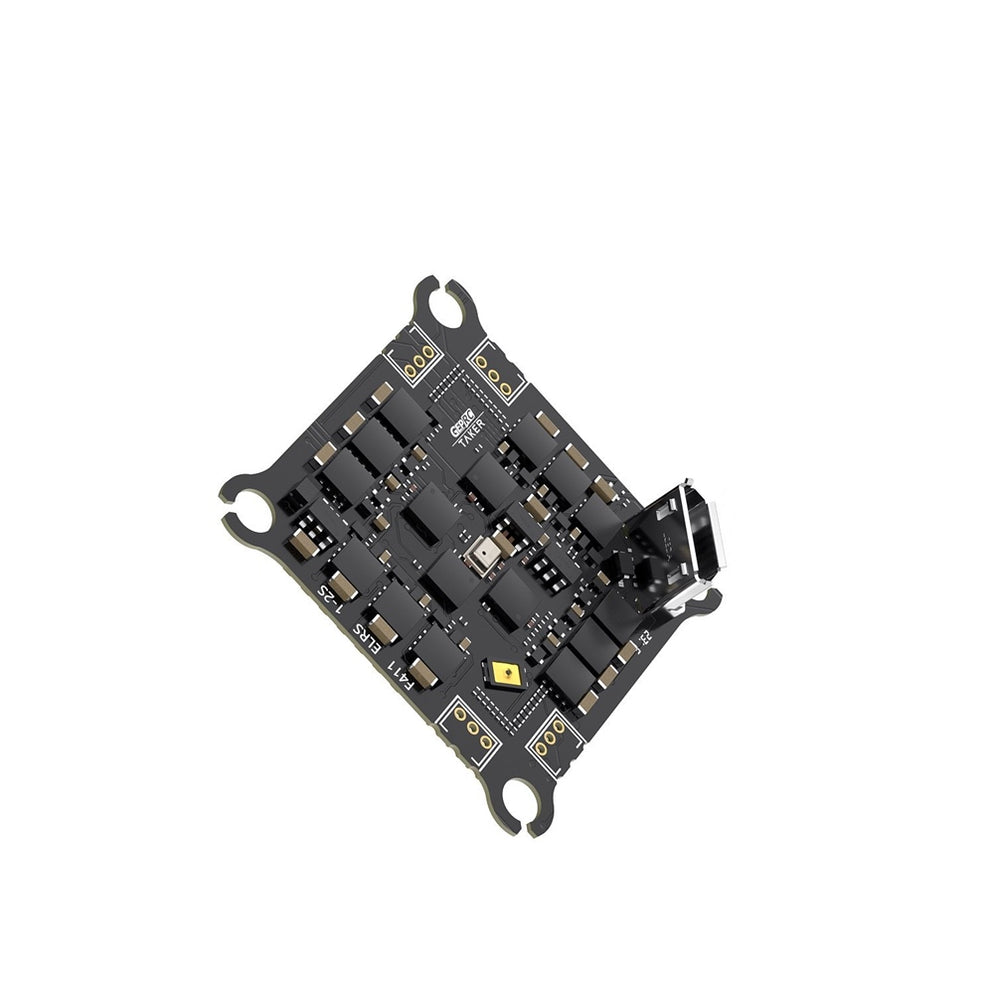

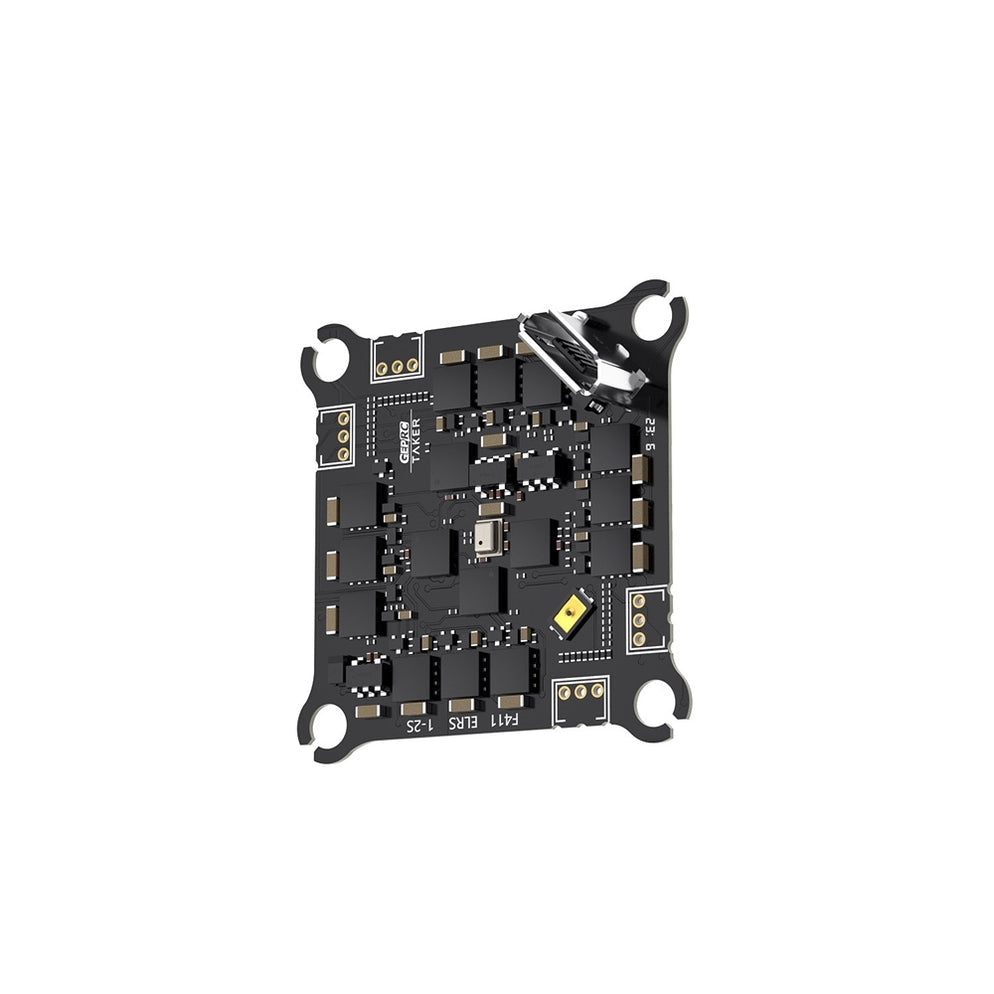

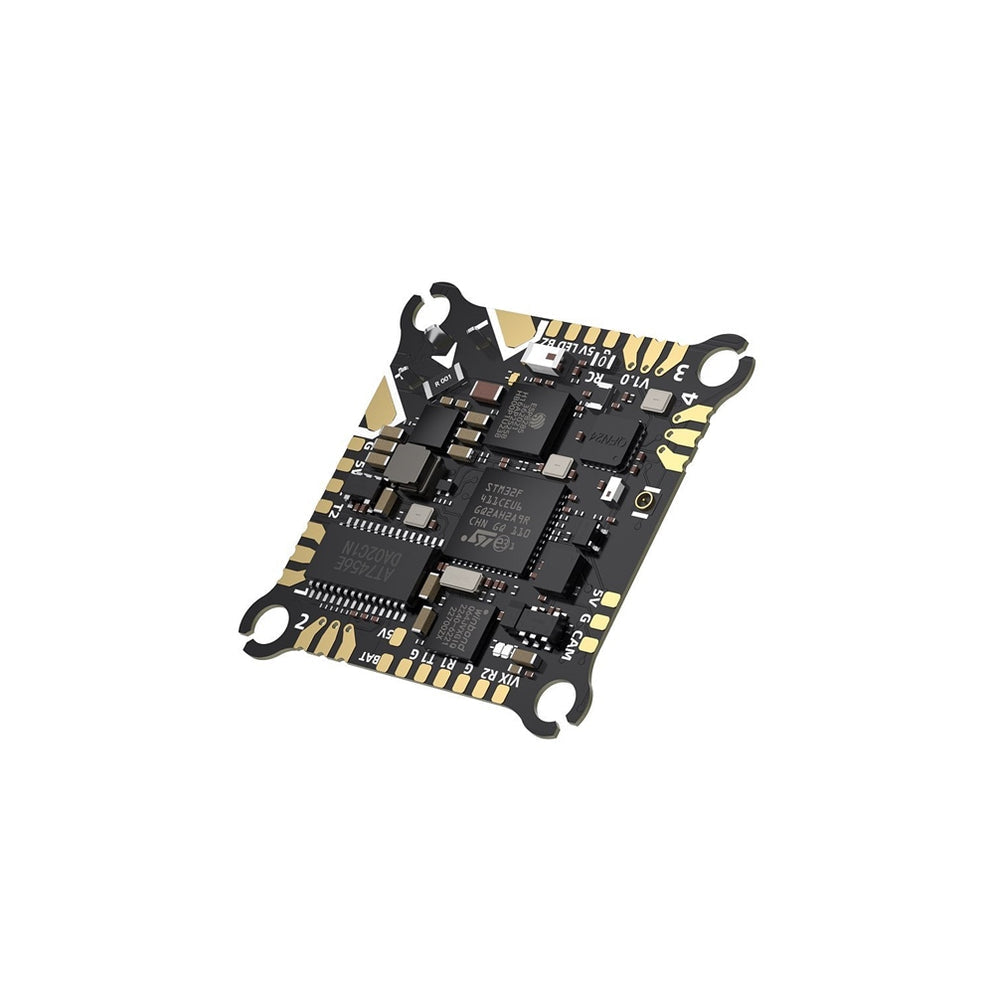

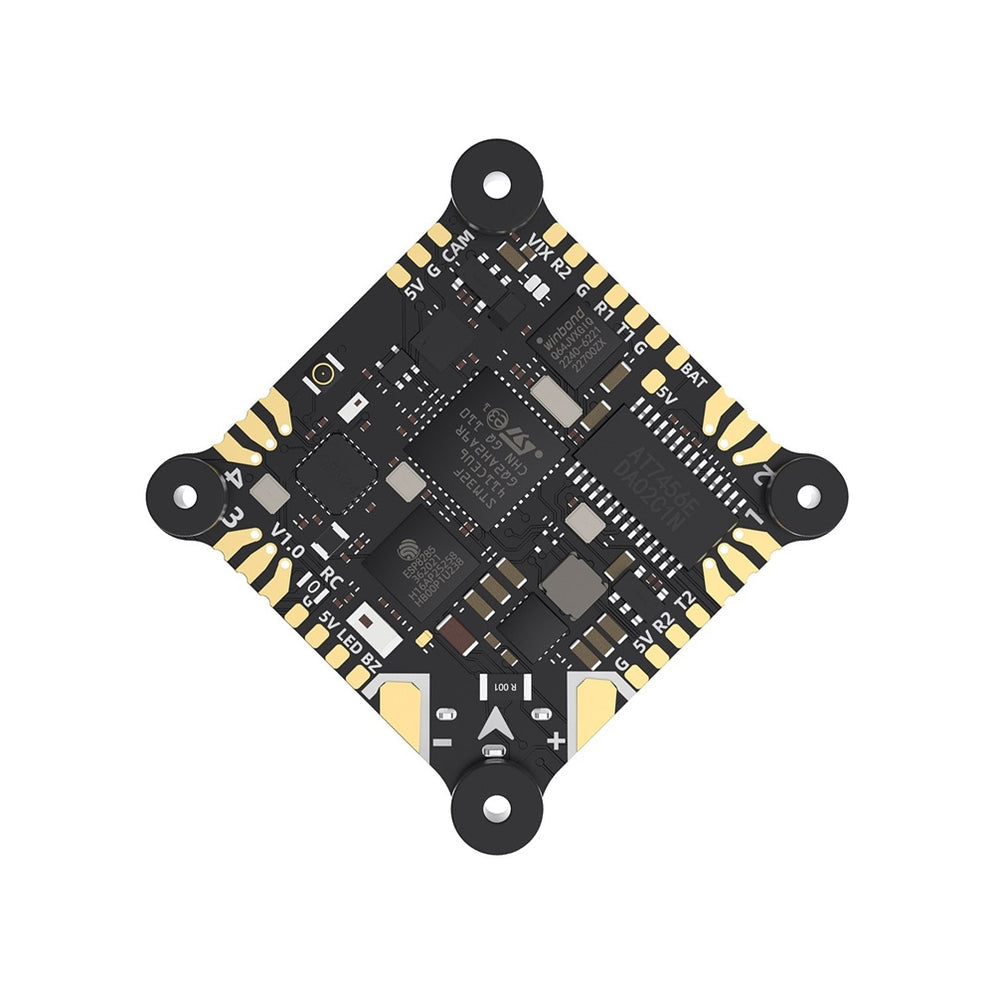

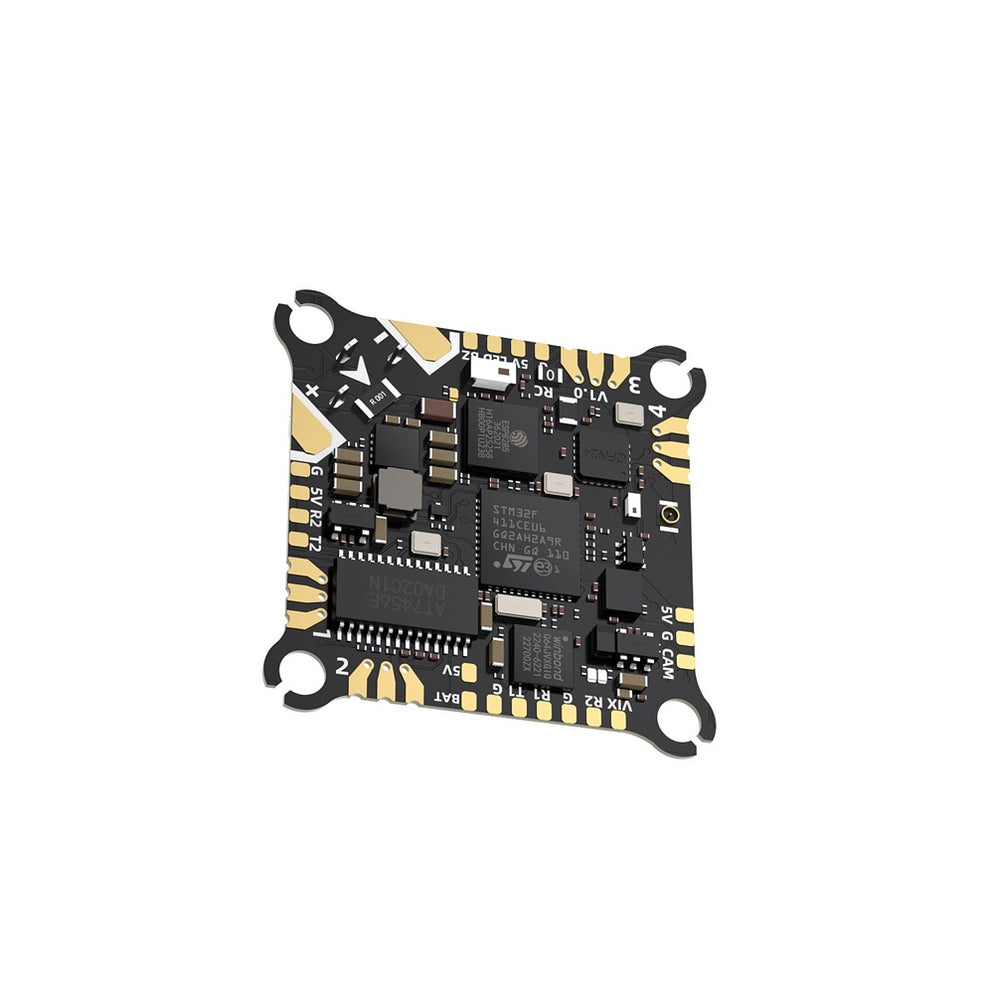

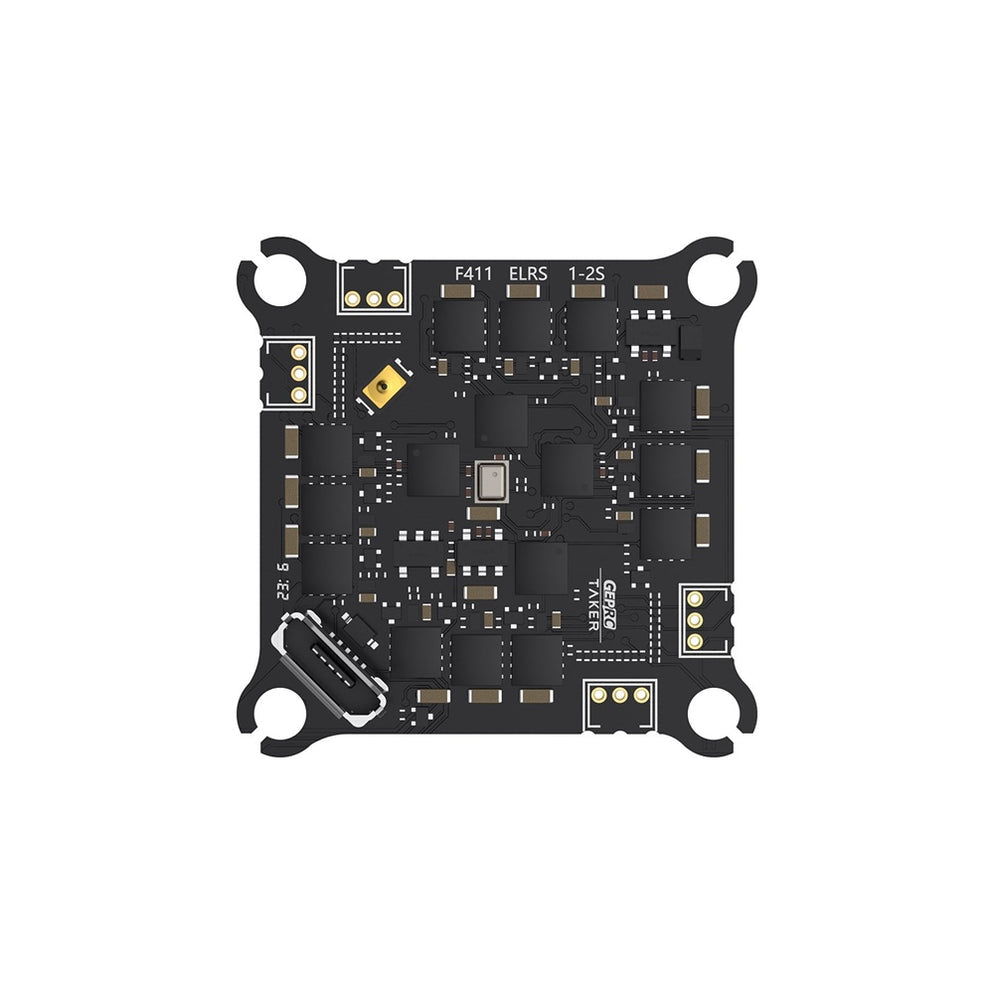

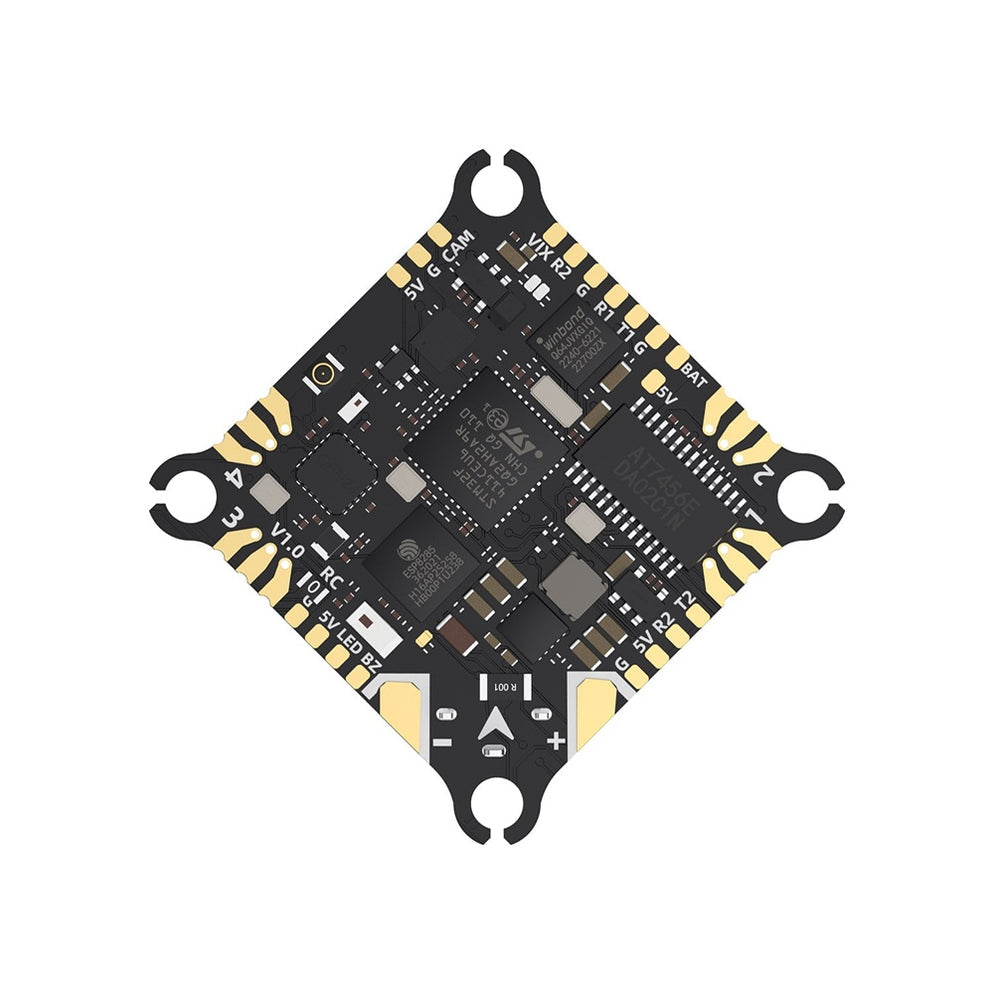

GEPRC TAKER F411 AIO Flight Controller (ELRS 2.4G, 1–2S, 12A ESC)

TAKER F411-12A-E 1~2S AIO is a lightweight and highly integrated flight control system, weighing only 4.2g. It is suitable for 1.2-2-inch Whoop models or 3-inch toothpick models.

The 12A ESC overcurrent capability has sufficient redundancy on a small model, and the integrated ELRS2.4G 3.0 receiver makes the installation more space-saving and complete. The F411 main control is equipped with a BMI270 gyroscope, making the flight feel silky and stable.

Features:

• Highly integrated and lightweight flight system

• Supports 1-2S power supply and has higher battery compatibility

• STM32F411 main control and BMI270 gyroscope solution, the flight feels silky and stable

• The motor wiring is reserved for welding or SH1

• Integrated ELRS2

Specifications:

• Model: TAKER F411-12A-E 1~2S AIO

• MCU: STM32F411

• IMU: BMI270

• Firmware Target: TAKERF411

• OSD: Betaflight OSD w/ AT7456Ev

• UART: T1 R1 / T2 R2

• SBUS: R2

• Receiver: ELRS2.4G 3.0

• Buzzer: Support

• LED: Support

• USB: Micro USB

• ESC MCU: EFM8BB21F16G

• Continuous Current: 12A

• Burst Current: 13A

• Input Voltage: LiPo/LiHv 1S-2S

• Support Protocol: Dshot300/600,Oneshot,Multishot

• Blackbox: 8MB

• Galvanometer: Support

• Firmware Target: C-X-30

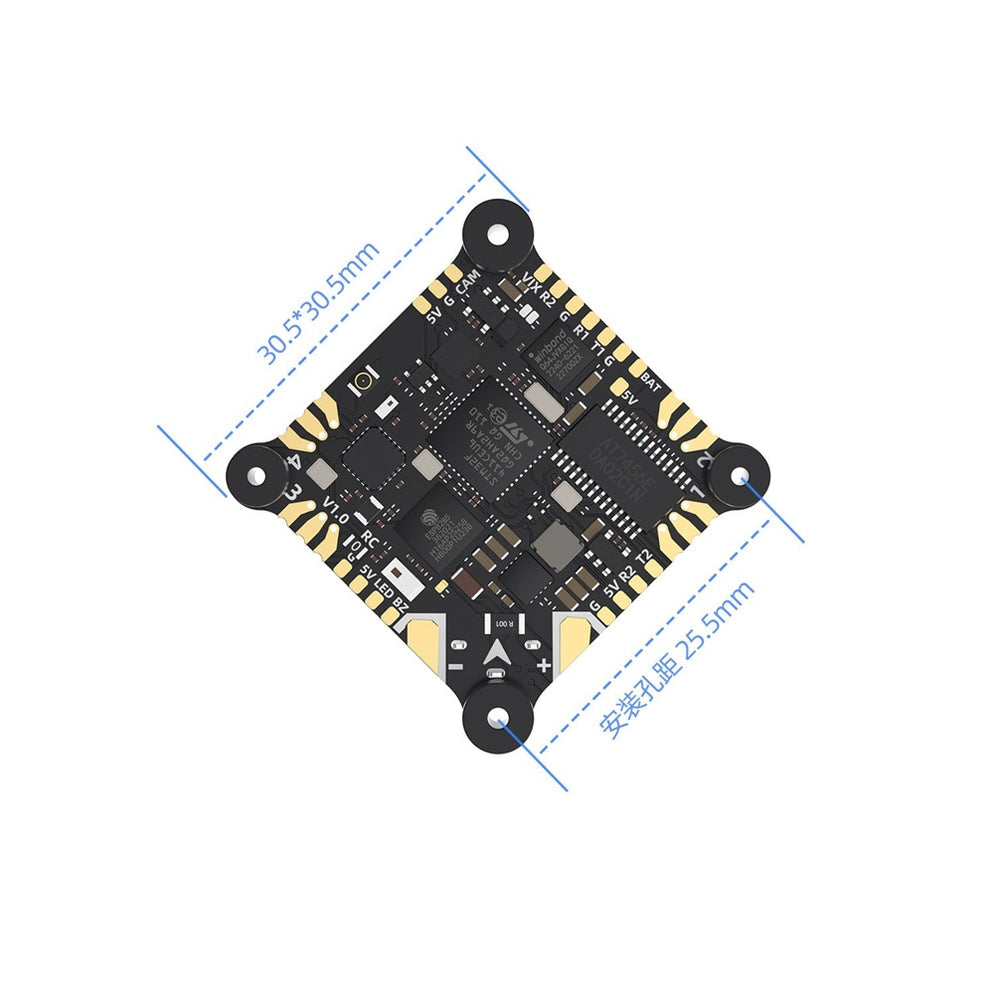

• Size: 30.5mm*30.5mm

• Fixing hole size：25.5mm*25.5mm（M2）

• Weight: 4.2g

Package Includes:

• 1 x TAKER F411-12A-E 1~2S AIO
• 1 x Cable Set
