I am glad to introduce a new member of GEPRC FC AIO, the GEP-F722-35A AIO.
GEP-F722-35A AIO adopts MCU STM32F722, which has powerful performance and higher computing speed. It has 5 full UART ports and can connect more external devices.
We designed a 6-pin connector for DJI air unit VTX plug and play.
The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance. It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.
We pursue lighter weight, smaller volume, more functions and better performance Flight controller.
Changelog:
June 14th,2022: Gyro updated to 42688.
June 25th,2022: Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.
Features:
MCU:STM32F722,with strong performance and higher computing speed.
It has 5 full UART ports, which can connect more external devices

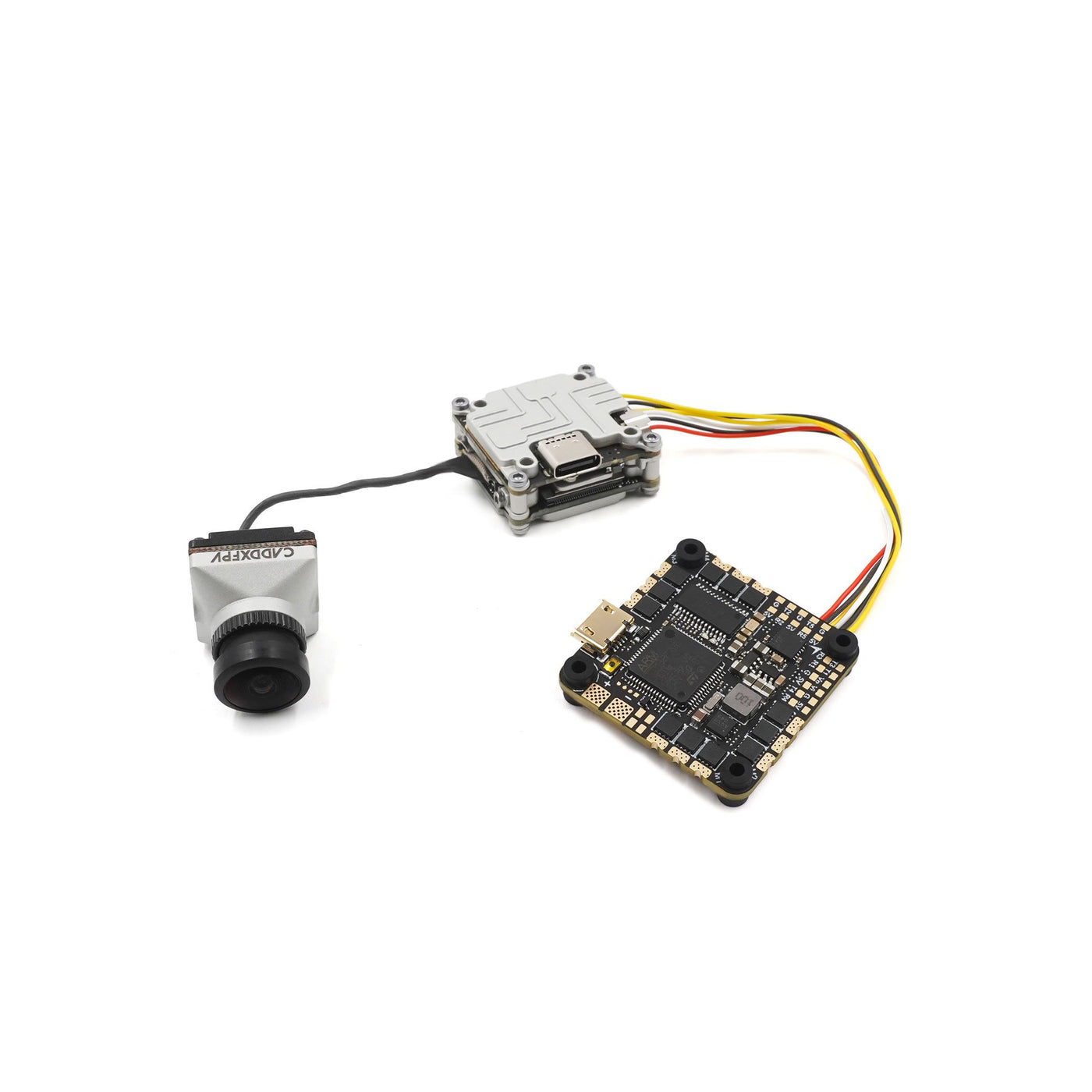

Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
The BLheili_S 35A ESC can handle 35A continuous current(40A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
Support OSD parameter adjustment, buzzer, led and other functions.

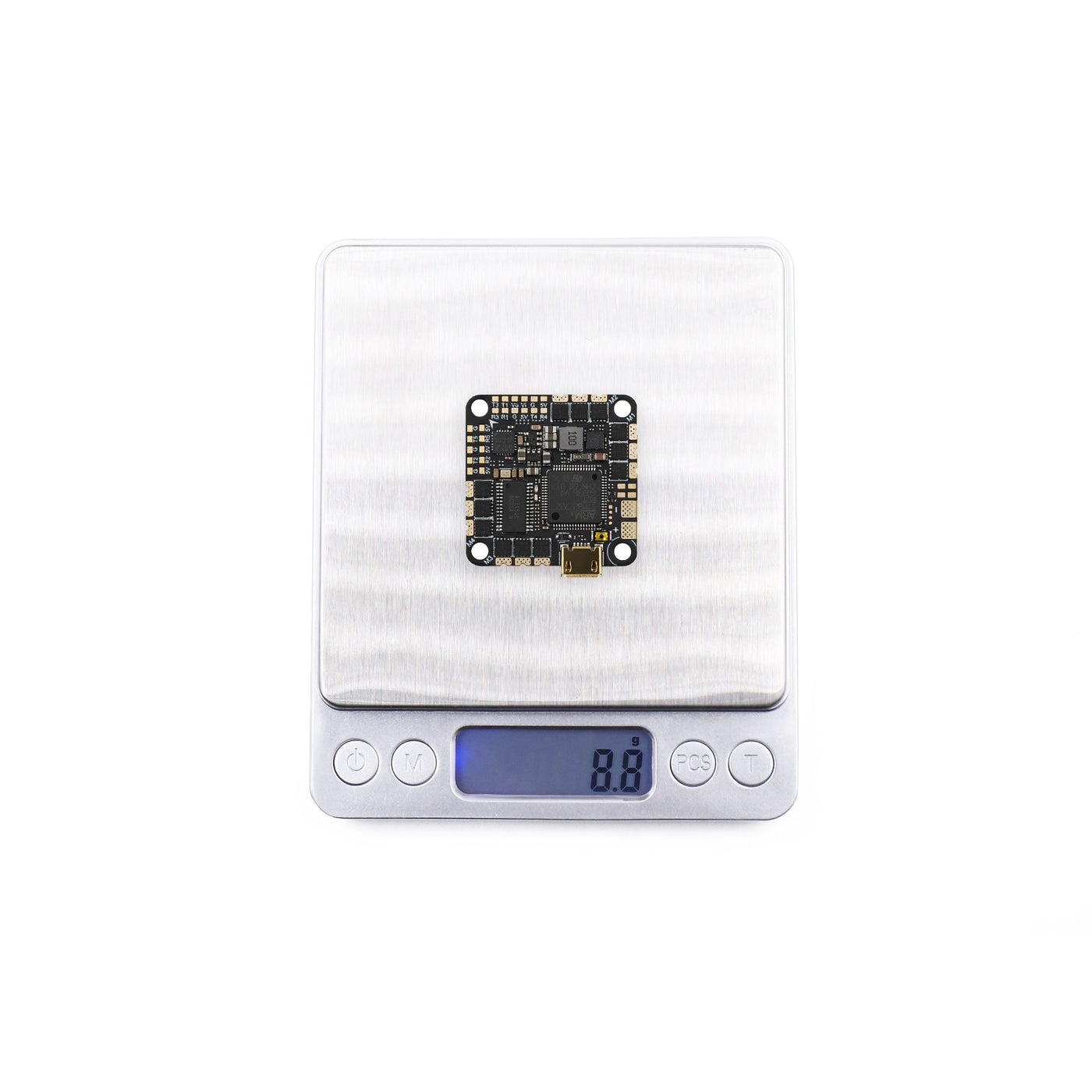

8.8g ultra light weight
5mm * 25.5mm mounting hole, suitable for most frames
