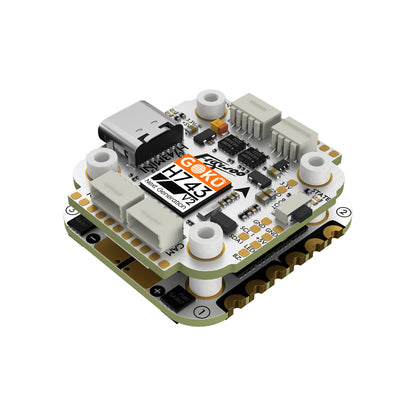

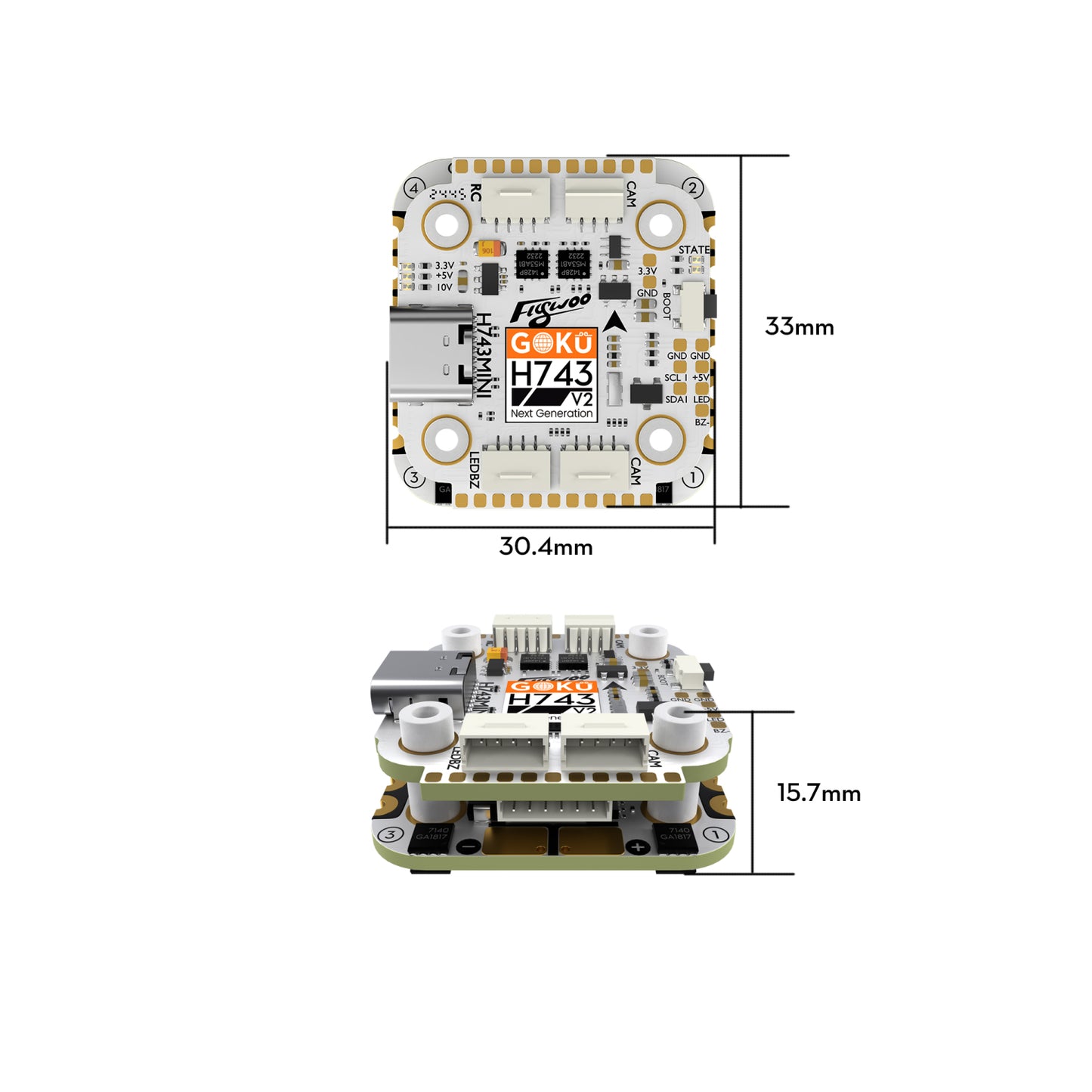

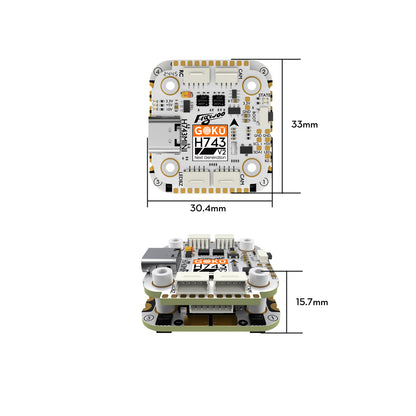

Flywoo GOKU H743 Pro Mini 45A 32Bit 128K 20x20 Stack – Plug & Play for O4 / O4 Pro

Name: Flywoo GOKU H743 Pro Mini 45A 32Bit 128K 20x20 Stack – Plug & Play for O4 / O4 Pro
Brand: Flywoo
SKU: FW19004414
Price: 89.99 USD
Availability: OutOfStock

$89.99 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

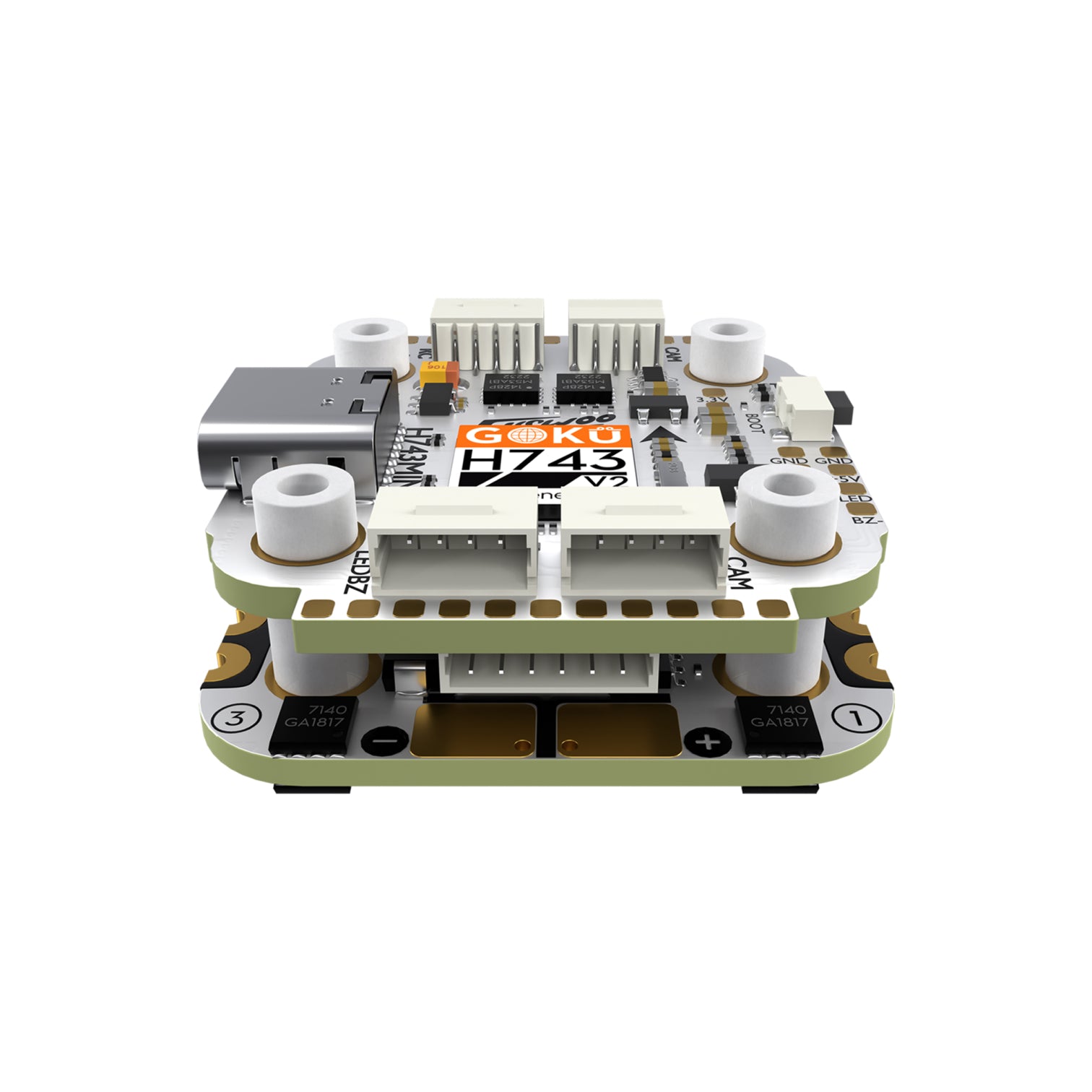

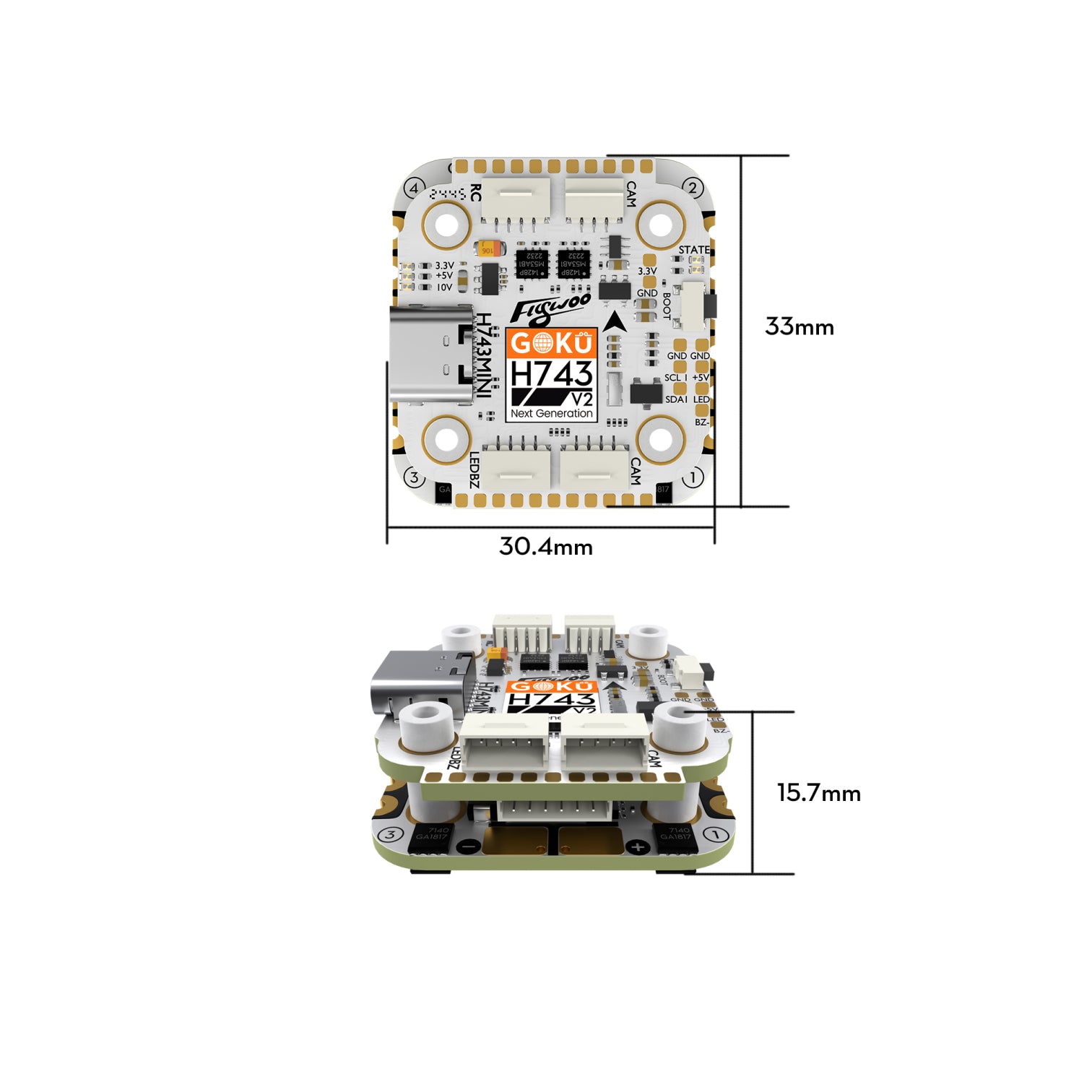

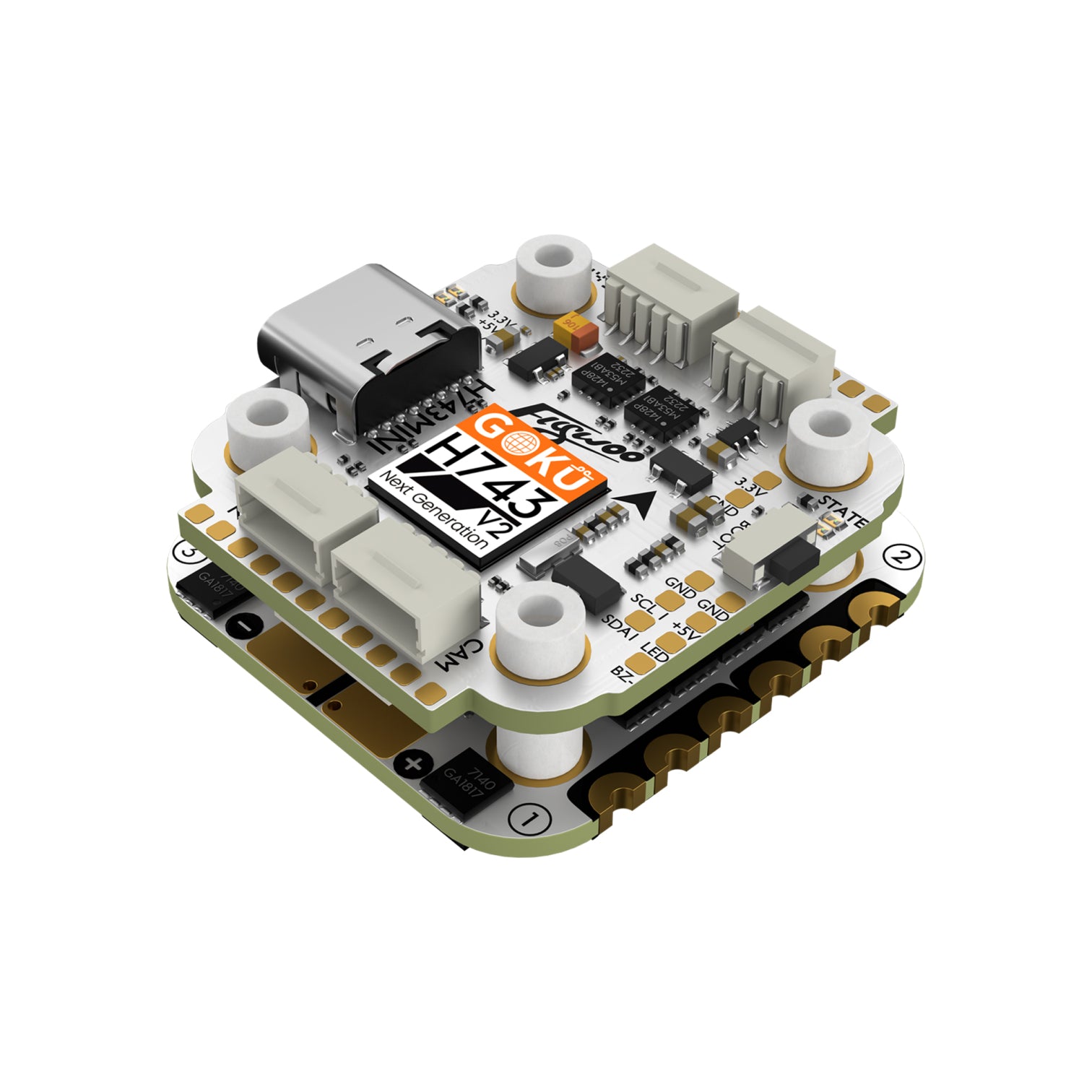

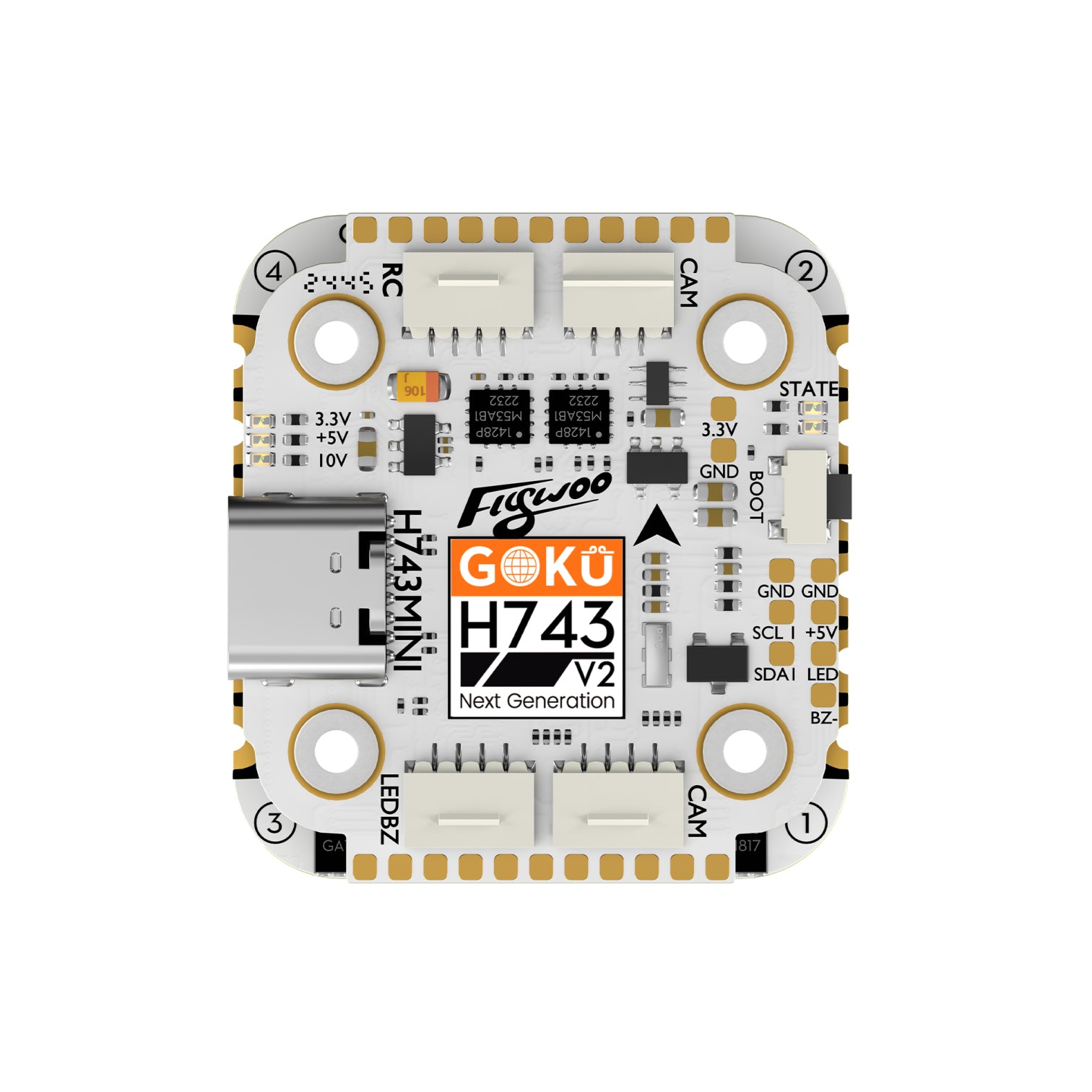

GOKU H743 Pro Mini 32bit 45A Stack is Flywoo’s flagship flight controller and ESC combo.

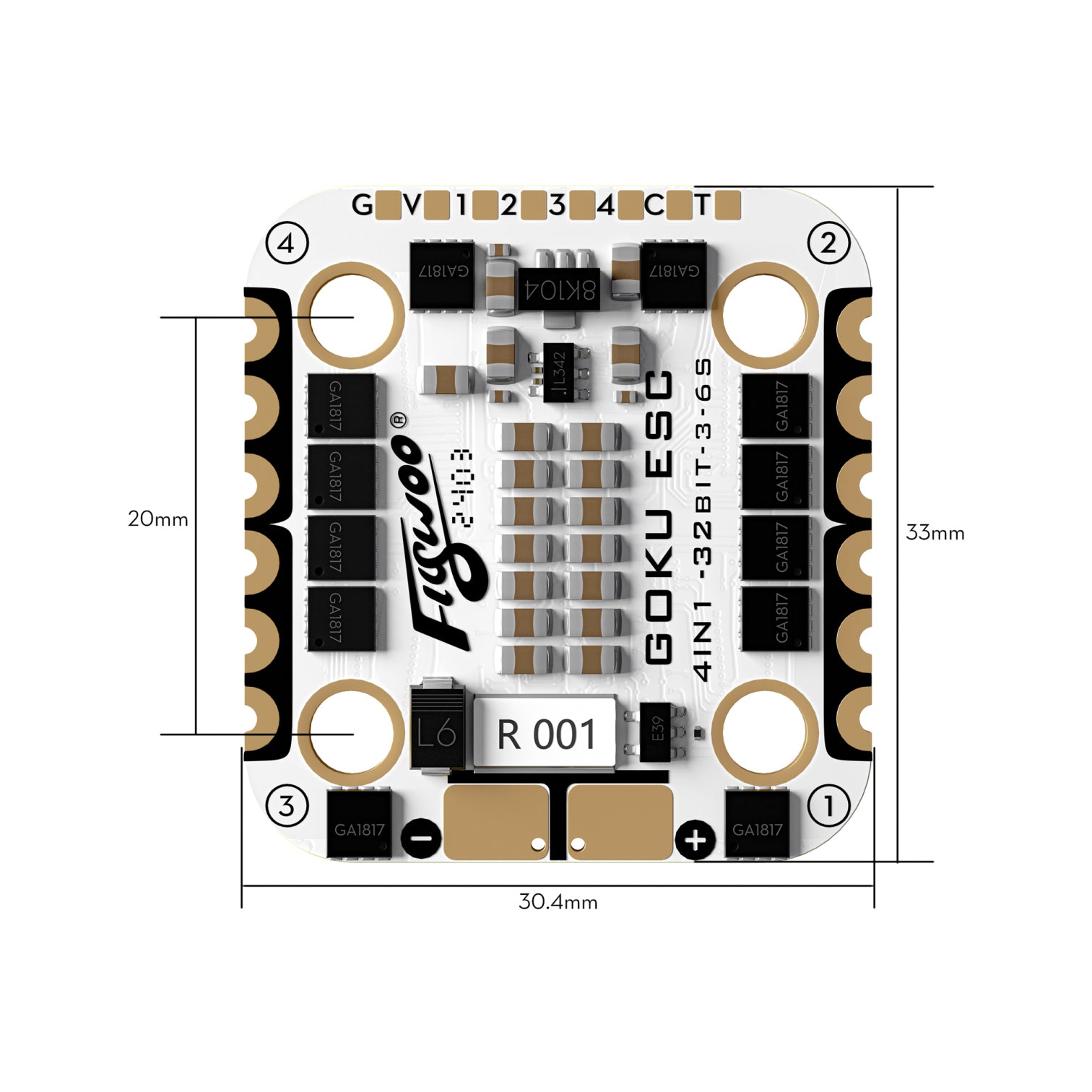

It features an STM32H743VIH6 chip (480MHz Cortex-M7 core) and dual ICM42688P gyros. It offers 512MB blackbox , 10V2A/5V2A dual BECs, and 8 motor outputs for X8 multi-rotor. It works with Betaflight, INAV, and Ardupilot, and includes a buzzer, dual-camera control, analog/DJI VTX, GPS, RX ports, and dual ESC connectors. Paired with the GOKU G45M 45A ESC, it delivers fast, precise handling for racing and freestyle.

Highlights：

1. Powerful Computing: 480MHz STM32H743 chip enables future complex feature expansion.
2. Dual Gyro Stability: ICM42688P dual gyroscopes reduce noise/latency for smoother flight.
3. Efficient Power: Dual 10V/5V 2A BEC provides stable power for peripherals.

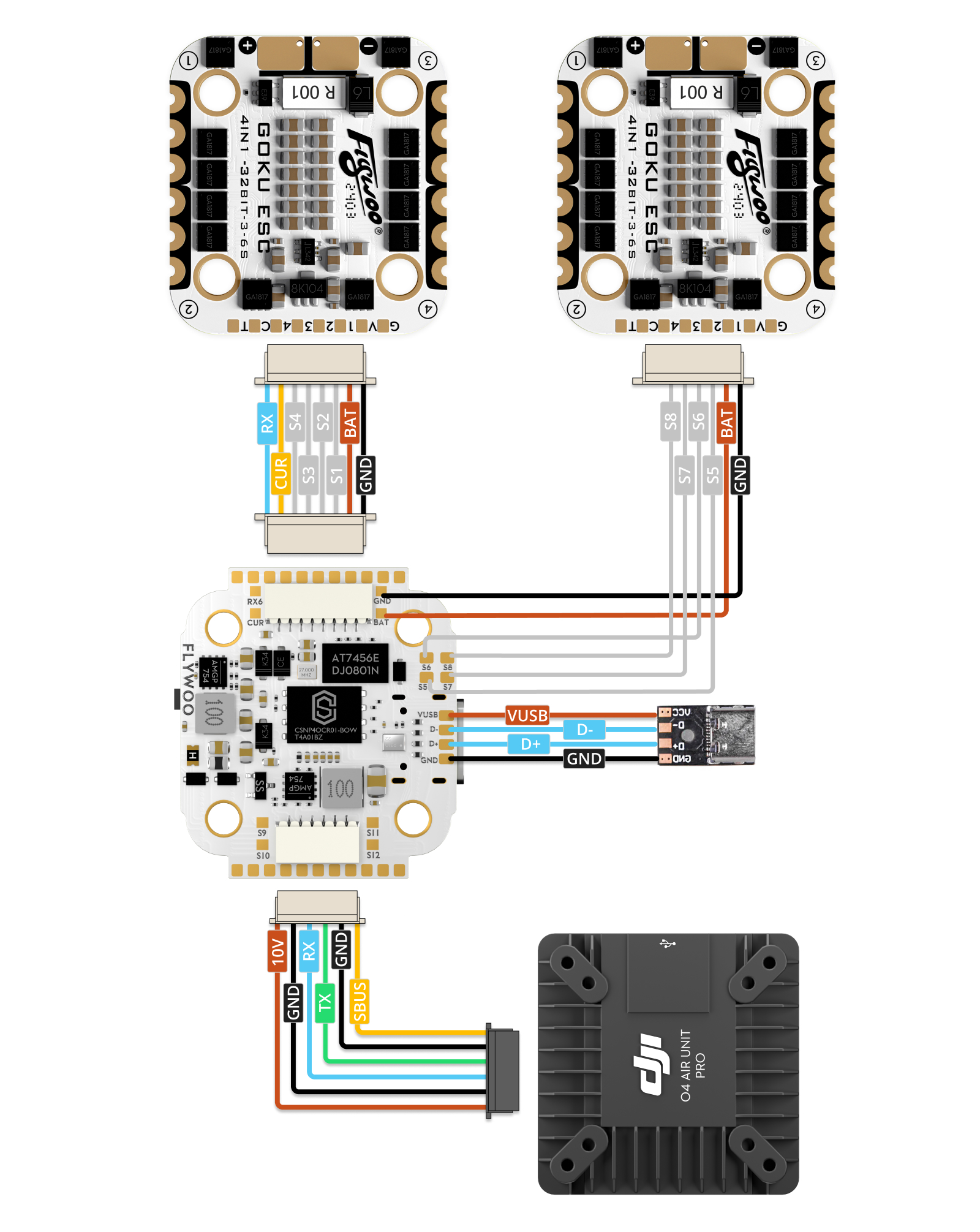

4. Versatile I/O: 7 UART ports 8 motor outputs (X8 multi-rotor support) with integrated dual-camera switching, VTX, GPS, receiver, and dual ESC interfaces.
5. Multi-Firmware Compatibility: Works with Betaflight, INAV, and Ardupilot.
6. Massive Storage: 512MB blackbox logs full flight data for analysis.
