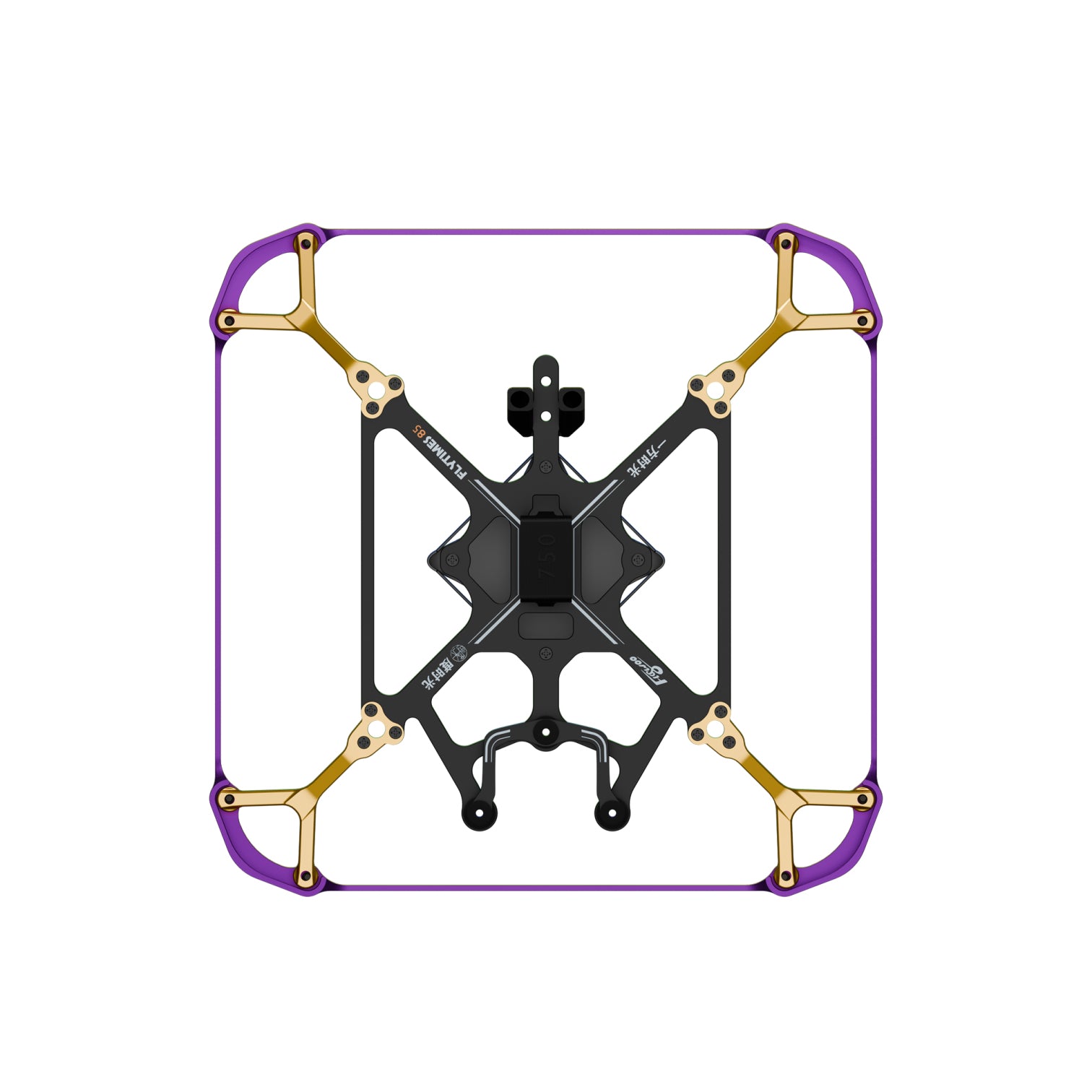

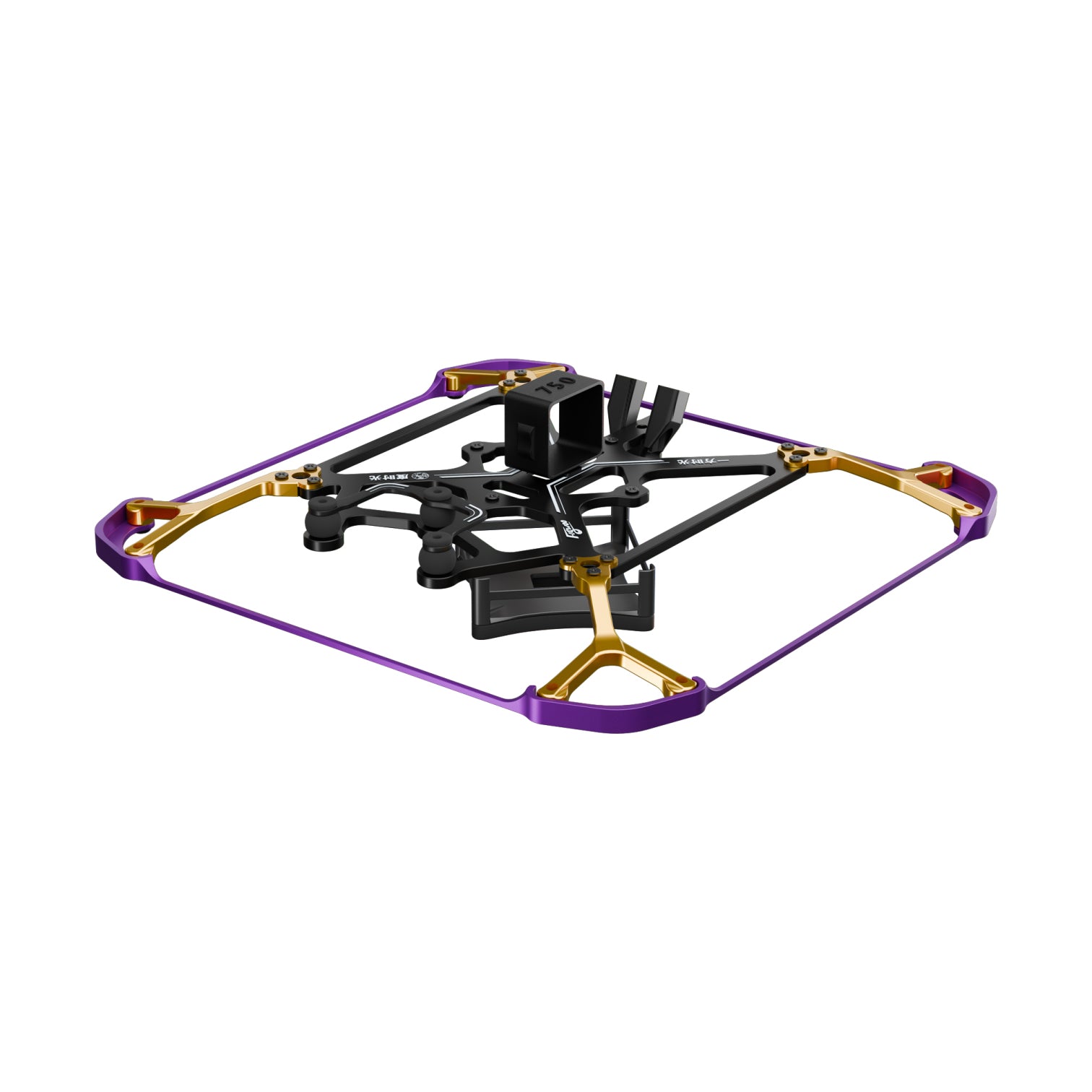

The Flywoo FlyTimes 85 Frame Kit (O4 Pro version) is purpose-built for pilots who want clean HD footage in a compact 2-inch platform. With dedicated 20mm camera support for DJI O4 Pro, a three-point CNC vibration damping system, and robust TPU prop guards, this frame keeps your build light, stable, and crash-resistant.

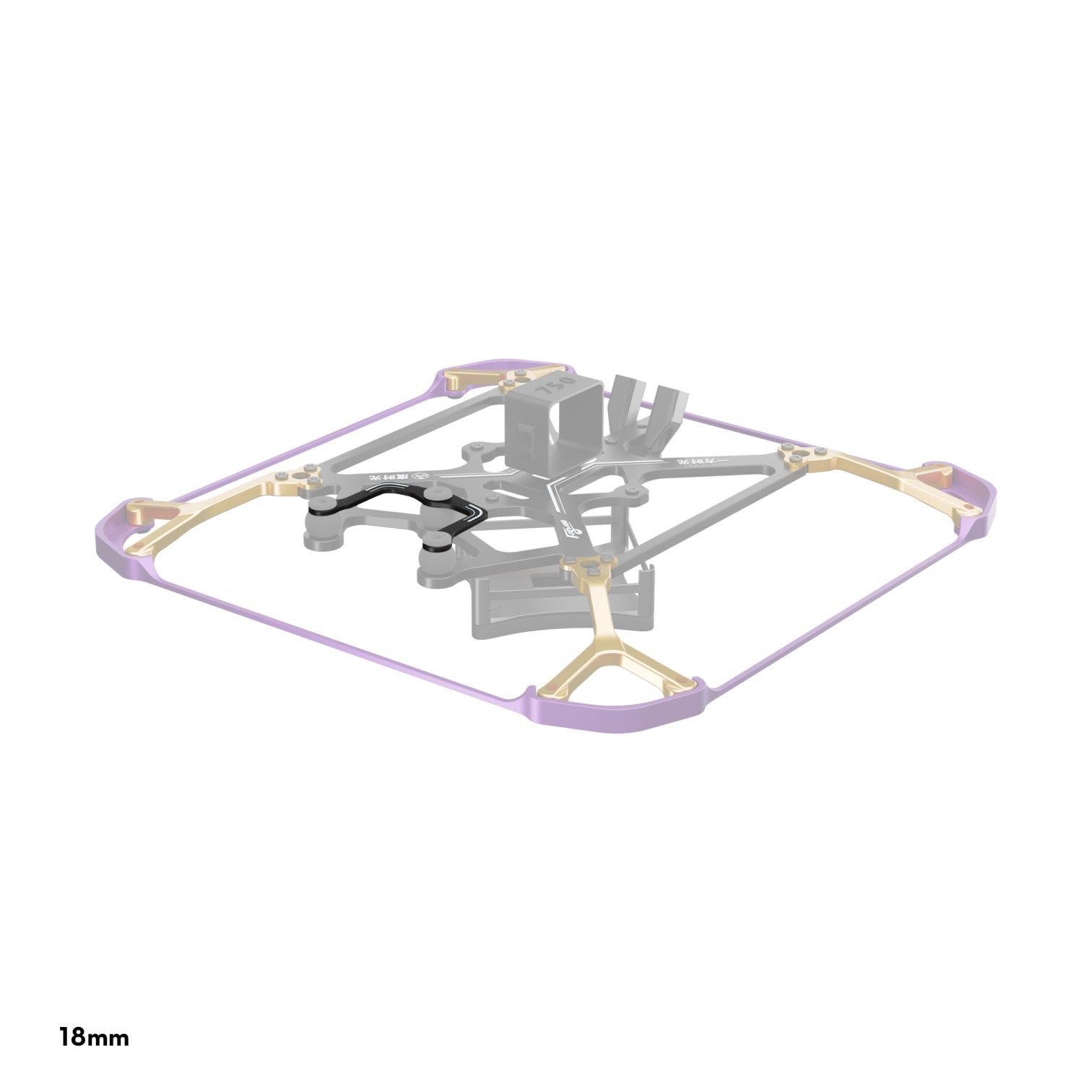

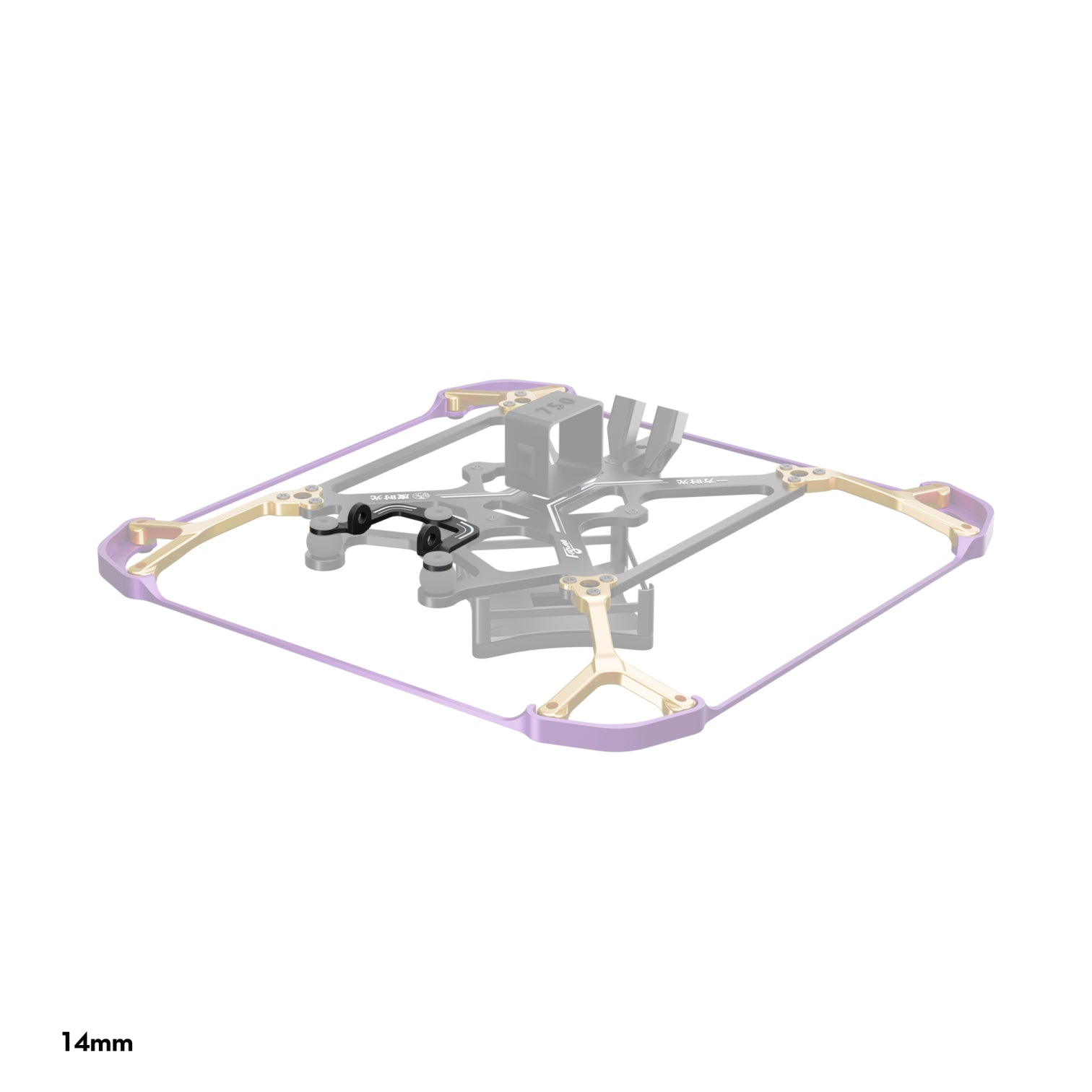

Camera support: 20mm (DJI O4 Pro). Alternate variants are available for 18mm O3 Lite/O4 and 14mm Nano cameras.
Damping: CNC three-point vibration isolation reduces jello for smooth HD video.
Frame structure: Reinforced Y-shaped alloy bracket with TPU guards for impact protection.

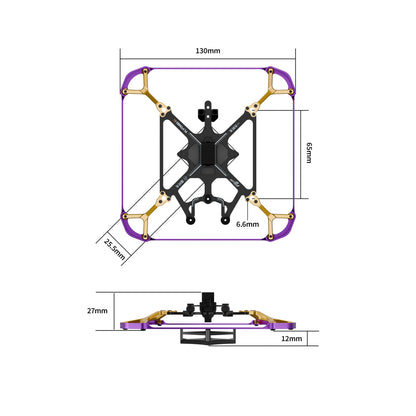

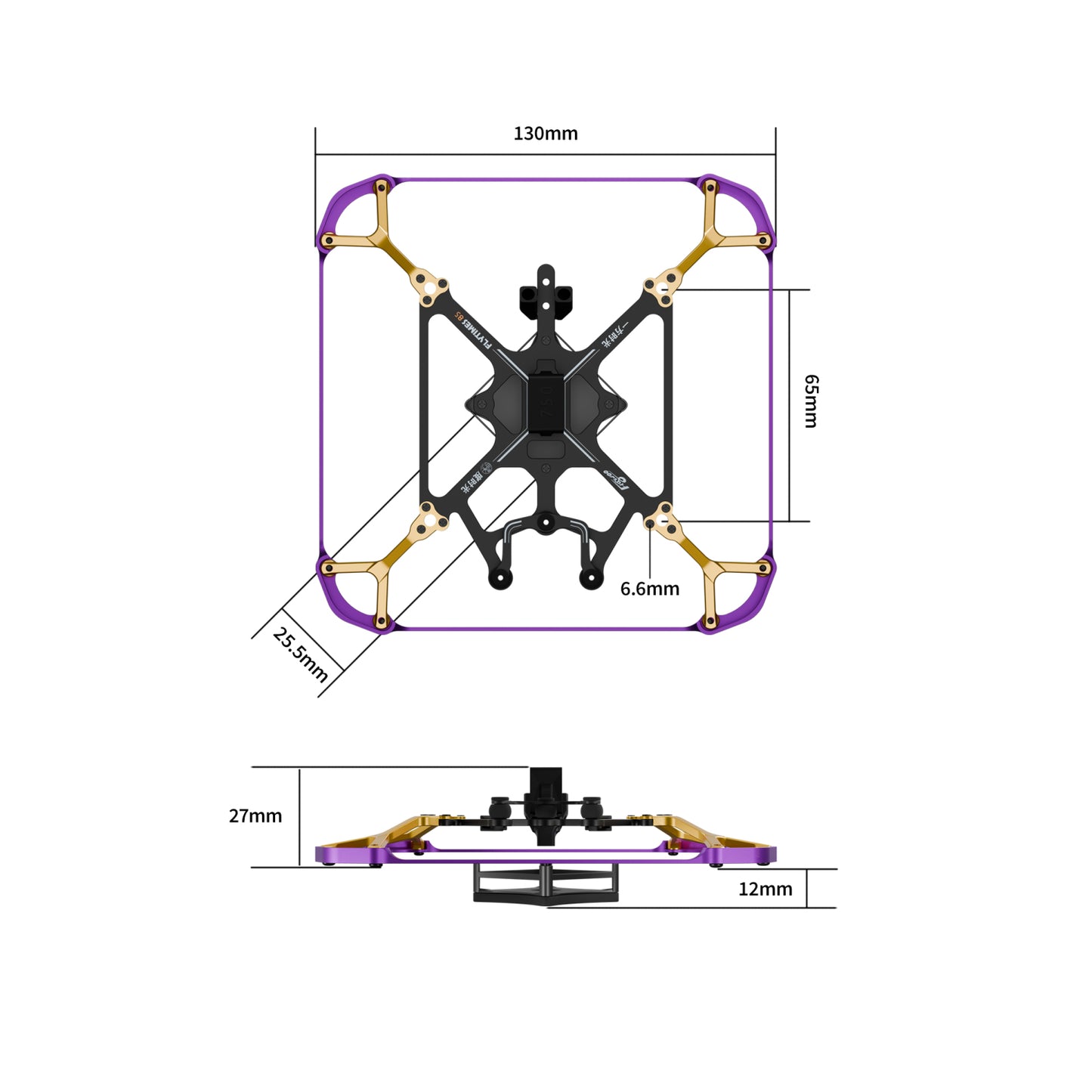

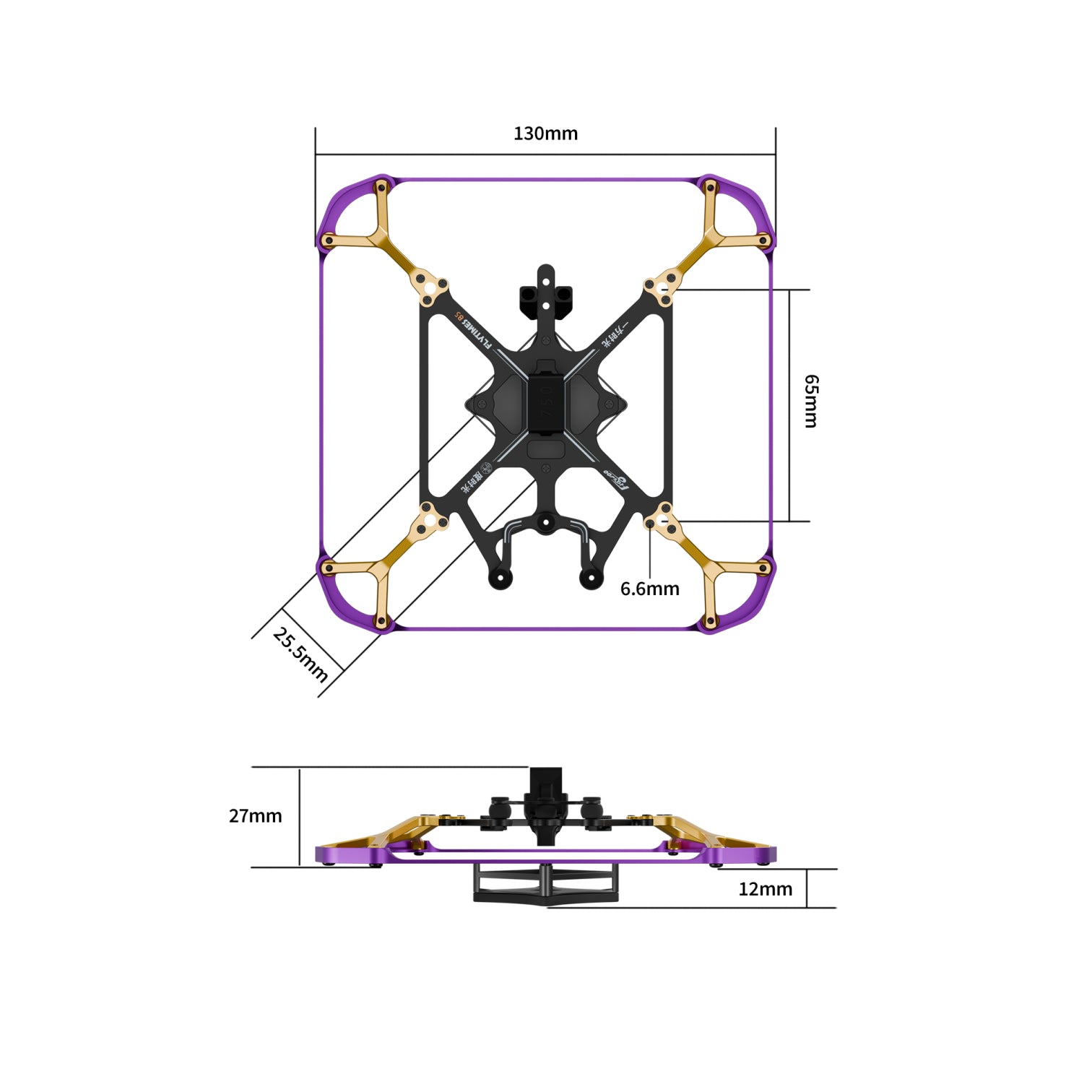

Mounting: 25.5×25.5mm whoop pattern for flight controller and VTX.
Design: Reverse-thrust layout with downward VTX mounting improves airflow and cooling.
Material: 2mm carbon fiber main plate, 1mm CNC camera plates, TPU guard system.
Prop size: 2-inch class.

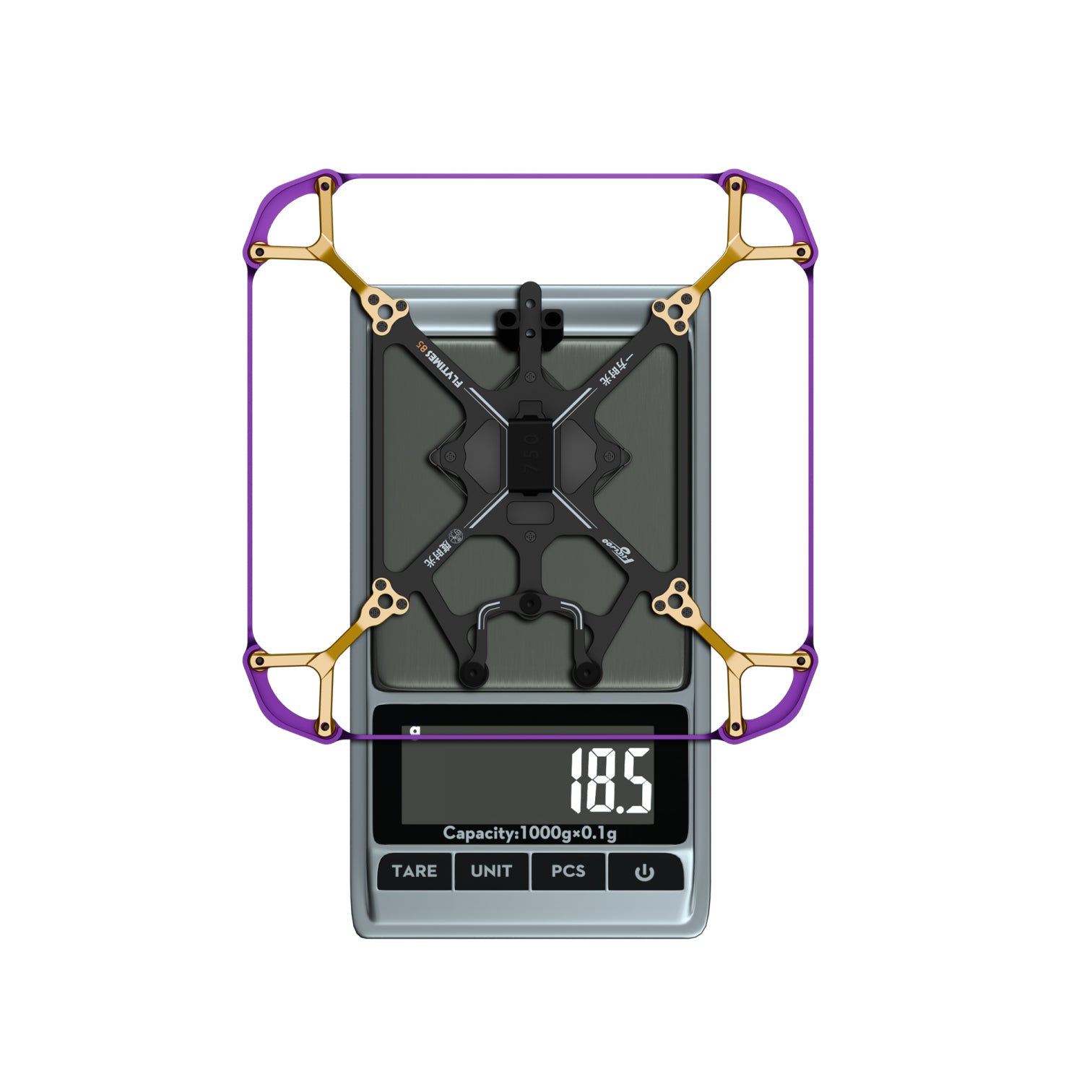

Weight: ~18.5g (frame only).
Why Choose the FlyTimes 85 O4 Pro Frame?
Specifically engineered for DJI O4 Pro 20mm cameras
Vibration-damped mounting ensures clean digital video
Compact, durable frame for tight-space flying

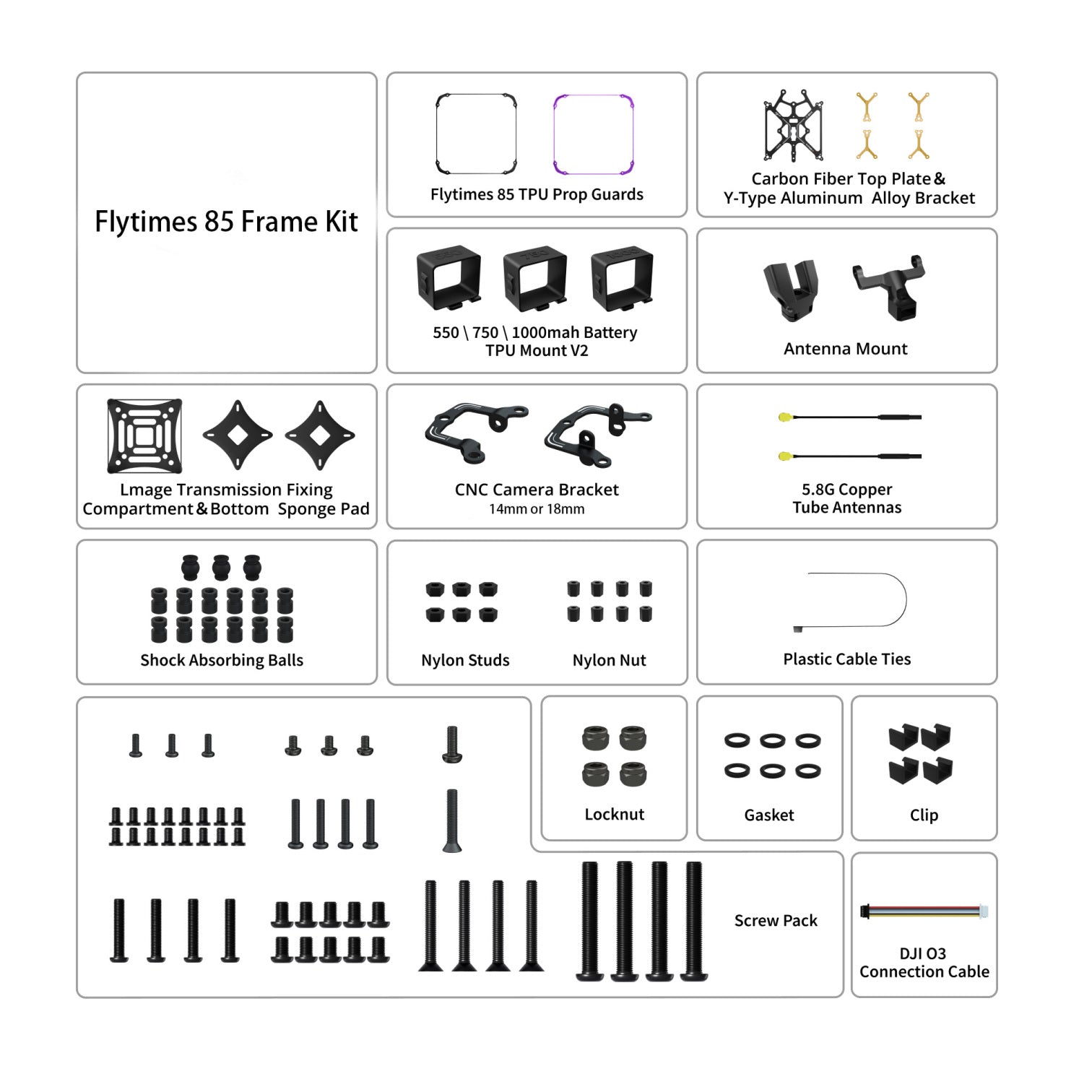

What’s in the box: FlyTimes 85 frame parts (O4 Pro 20mm version) with hardware kit.
Ships from Texas, USA – same-day dispatch available on weekday orders.
Build your micro HD quad with the FlyTimes 85 and pair it with lightweight motors for best performance.
