Flywoo FlyTimes 85 Frame Kit – o4/O3 Lite (18mm)

2-inch micro frame built for clean HD and tight spaces

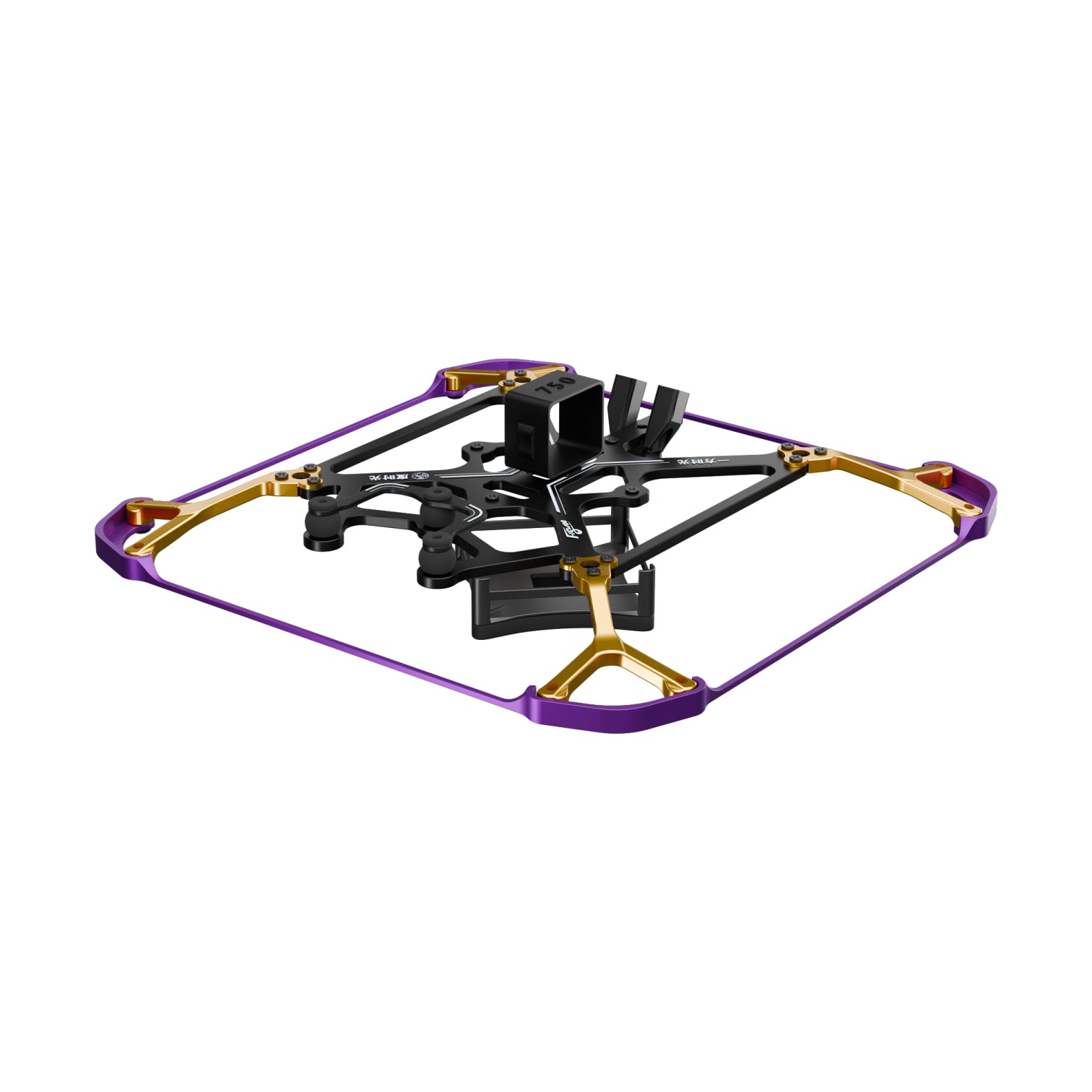

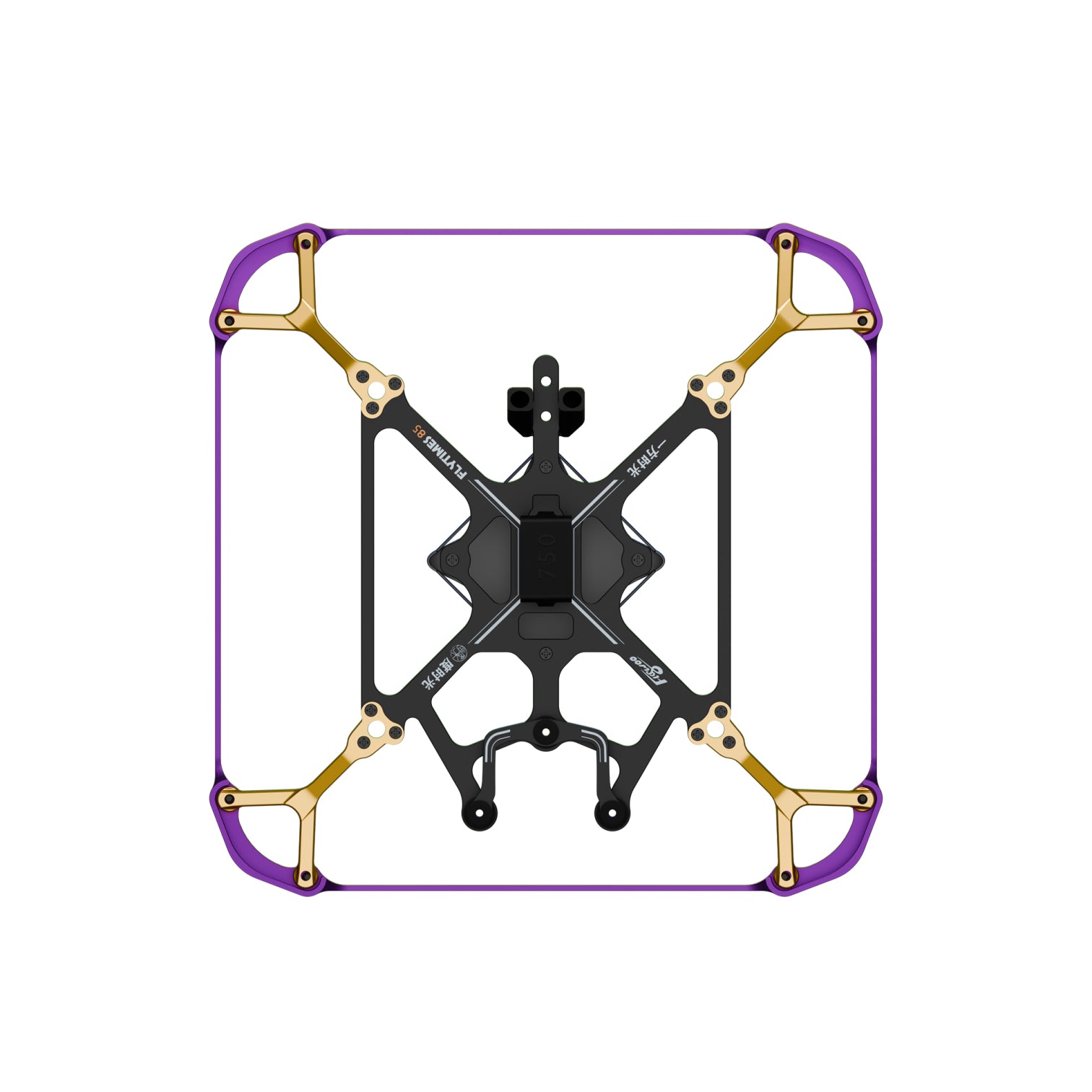

The Flywoo FlyTimes 85 frame is a tough, lightweight 2-inch platform designed for indoor spots and narrow gaps. This version supports the DJI O3 Lite / O4 18mm camera size and keeps your stack cool and protected with smart mechanical damping and a reinforced prop-guard system.

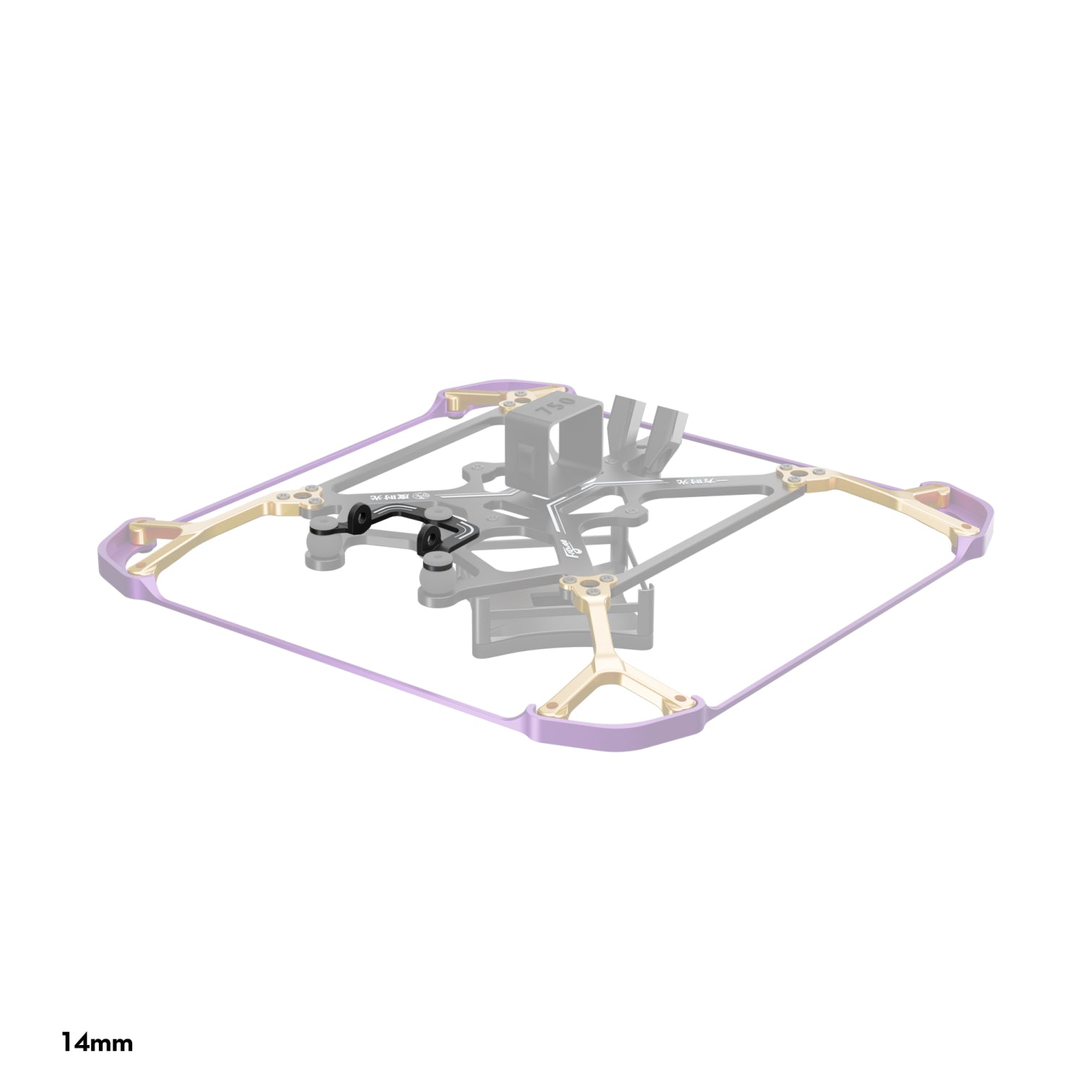

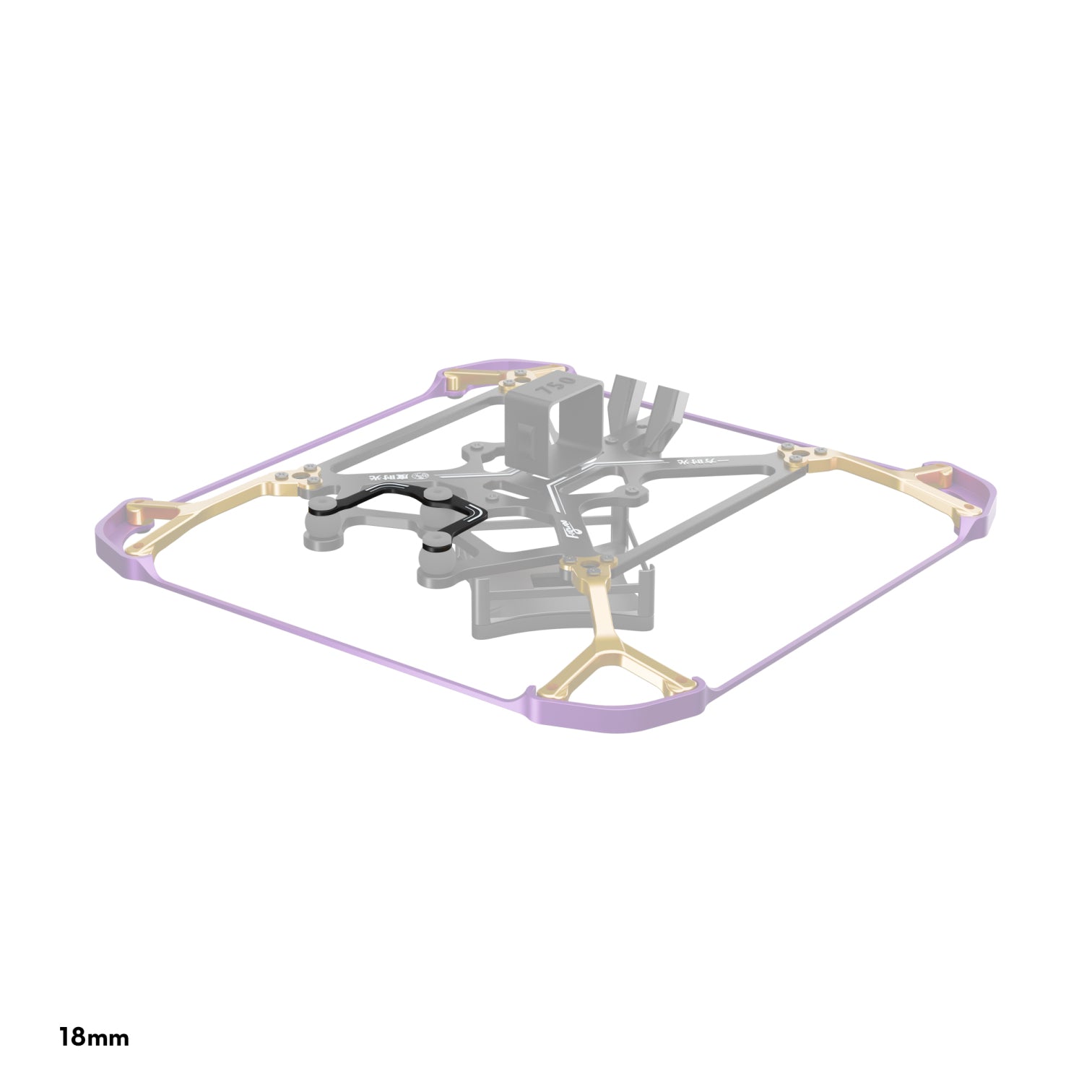

• Camera support: 18mm (DJI O3 Lite / O4). Nano 14mm cameras are supported on the alternate variant.
• Damping: three-point CNC vibration isolation reduces jello and keeps footage clean.
• Structure: Y-shaped alloy bracket with TPU guard for strength and easy color swaps.
• Thermals: downward VTX mounting improves heat dissipation; reverse-thrust layout for stable handling.

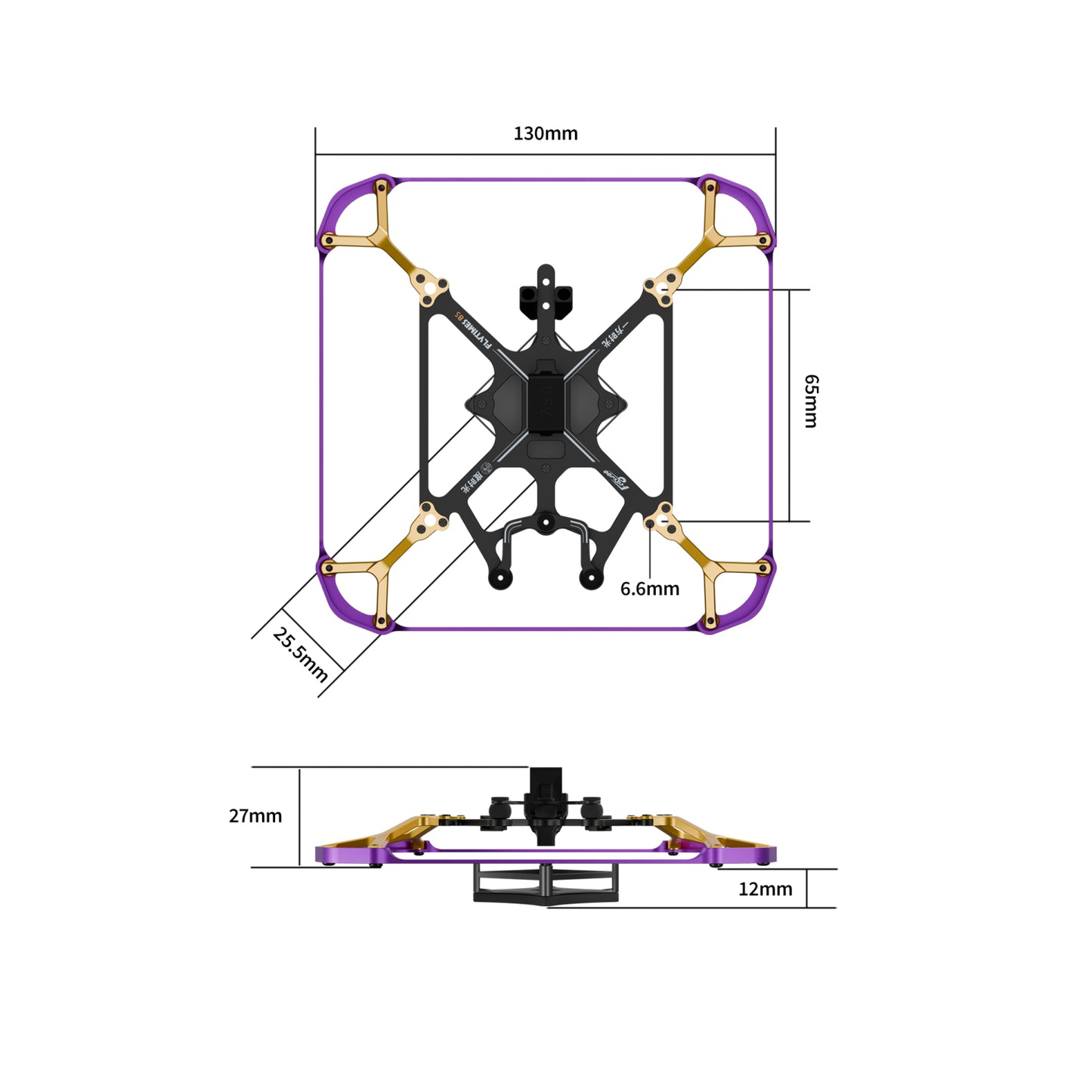

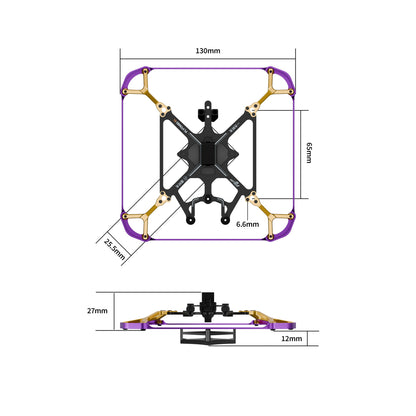

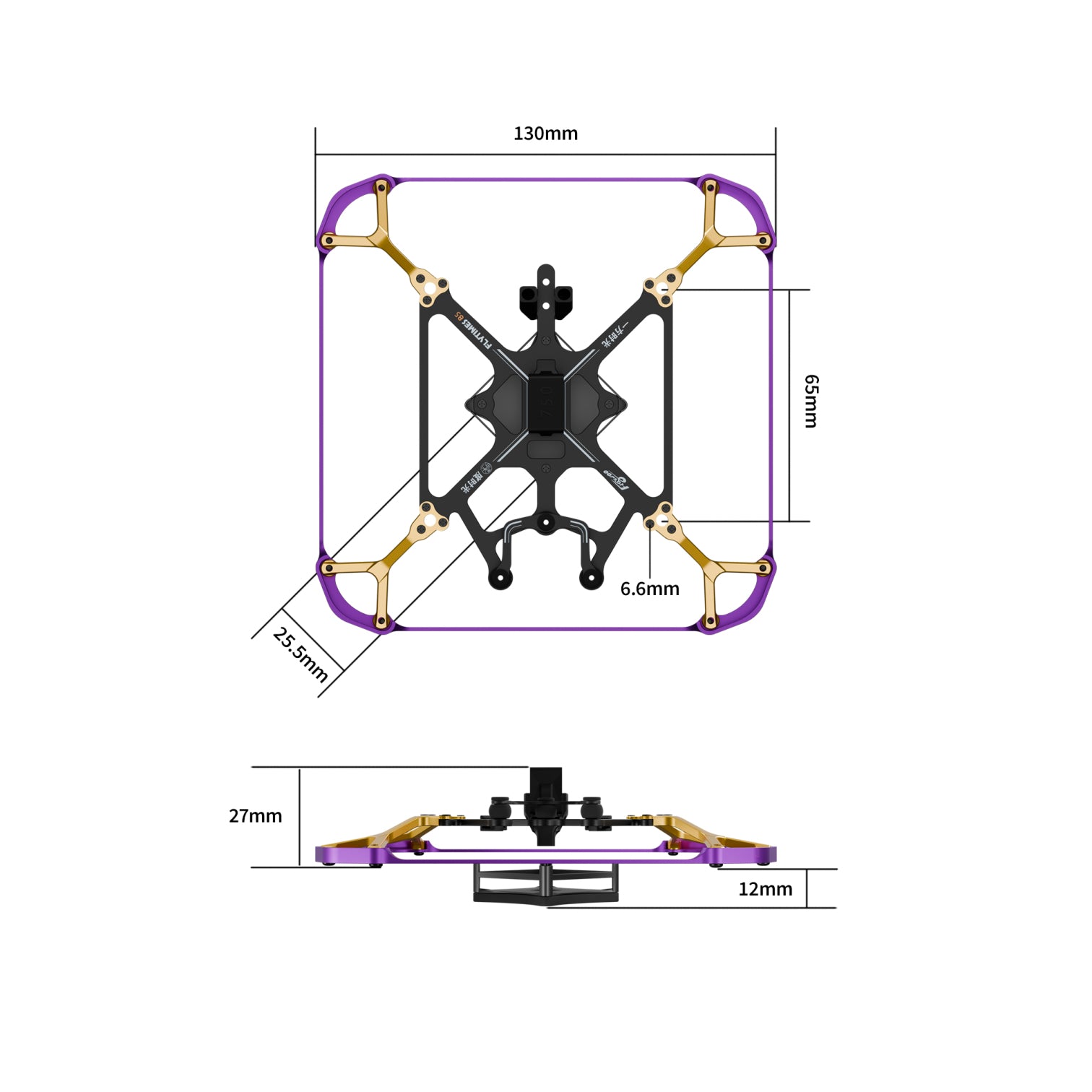

• Mounting: 25.5×25.5mm whoop pattern for both FC and VTX.
• Hardware: 2mm main board, 1mm CNC gimbal parts; TPU prop guard.
• Prop size: 2-inch class.

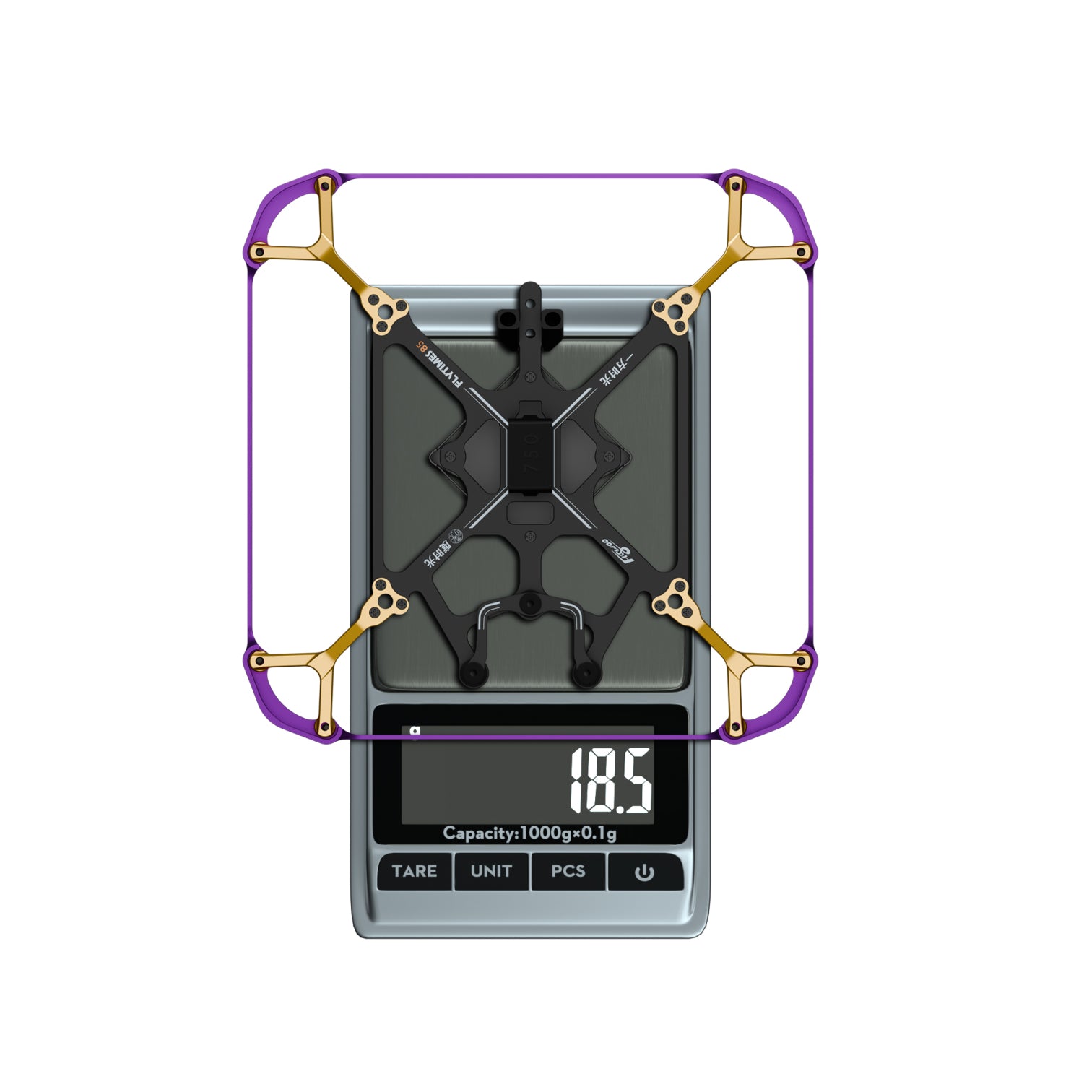

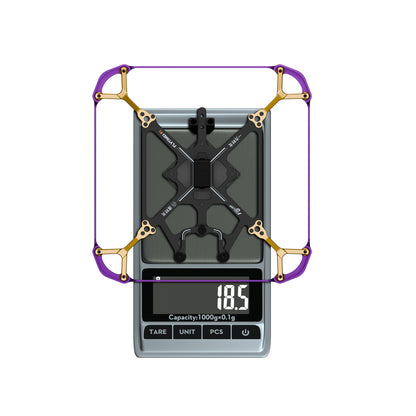

• Weight: about 18.5g (frame only).

Recommended pairing: 1–2S AIO (25.5×25.5), micro HD system (O3 Lite/O4 or other 18mm units), 2-inch props, and 1003-class motors for a lively, efficient build.

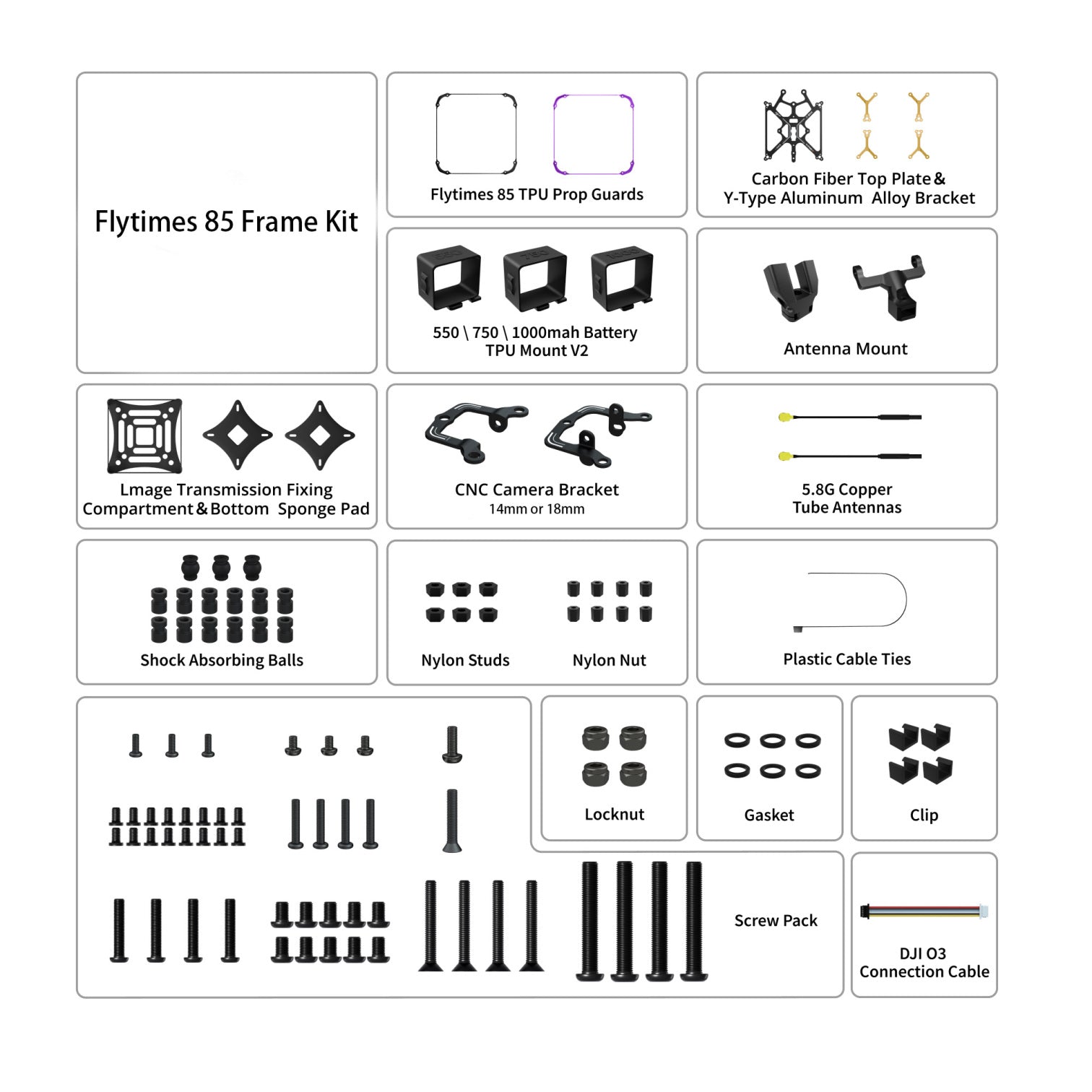

In the box: FlyTimes 85 frame parts set (O3 Lite/O4 18mm version), hardware.

Ships from Texas, USA with same-day dispatch on weekday orders.
