(The product model is O3 air unit , for reference only)
The Flylens85 features a quick-release battery compartment, allowing users to choose from various battery capacities and enabling swift battery replacement.
(The product model is Flylens 75 , for reference only)
FLYLENS 85 brushless whoop is an innovative small drone carefully crafted by the FLYWOO team that meets international regulations.
It adopts the latest O4 digital transmission system and is available in an optional O4 version, making it the lightest O4 2-inch drone on the market.
The carbon fiber frame has undergone a special carbon black treatment process. The reverse push propeller structure increases power, reduces noise, and easily adjusts the battery's center of gravity position.
Highlights

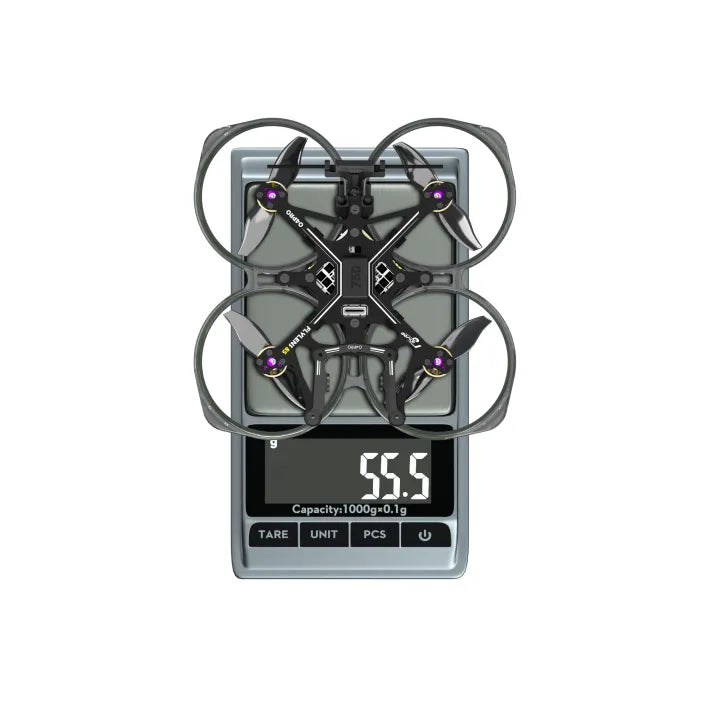

- Small size, lightweight, less than 100g, lightweight 2-inch drone.
- O4 digital transmission system, long-distance, 4K high-definition, low latency
- High-strength PC injection-molded protective ring enhances the strength and safety of the drone.
- Unique CNC damping platform for camera, no jelly effect, records high-quality video
- Quick-detachable frame for easy separation of parts.
- Reverse push propeller power for stable flight and longer endurance.
- Equipped with wireless control neon light strip and can carry external devices.
Specifications
| Model | Flylens 85 HD O4 PRO 2S Whoop FPV Drone |
| Frame | Flylens 85 PRO Frame kit |
| Electronic | GOKU F405 HD 1-2S ELRS AIO V2 （42688） |
| Transmission | DJI O4 PRO Air Unit |
| Camera | DJI O4 PRO Air unit |
| Propeller | 2015 2-Blade Propeller |
| Motor | ROBO 1003 14800KV |
| Antenna | Flywoo 5.8G Light 5.8G 3dBi Brass Antenna UFL |
| LED | Flywoo Flexible LED + 3.3V Bec 2.7mm |
| Weight | 87.5g |
| 550mah Battery |
( 32% Take off thrust / 2m40s / 60km/h ) |
| 750mah Battery |
( 34% Take off thrust / 5m / 60km/h ) |
| 1000mah Battery |
( 36% Take off thrust / 6m / 60km/h ) |
In the box :
1* Flylens 85 HD O4 PRO 2S LED Whoop FPV Drone V1.3
1* USB Data Cable For 04 Air Unit 90° Type C
1* 2S 550mah battery tpu mount
1* 2S 750mah battery tpu mount
1* 2S 1000mah battery tpu mount
8* 2015-2 Props
1* Screwdriver
1* hardware set
FAQ
Q: What is "FLY" Series ？
A： The FLY series is a 2S Done series. Members contain Flylens 75 / Flylens 85 / Flytimes 85 / Flybee 16 / Flybee 20.
The "FLY" series of Flywoo is like a magical flight cube. Each turn and recombination shows a new look. The series has a consistent powerful power unit (AIO / motor and most same Component ), like a stable heart. It offers new flight experiences with every form. You're a creator here. Easy hands-on practice unlocks diverse gameplay.
Q: How do I get CLI and STL files?
A: Please go to the FLYWOO Support Center.
