Note： the following two tips when you install Firefly 16 / 18 O4 version.
.jpeg?w=1600&h=1859)
About this product

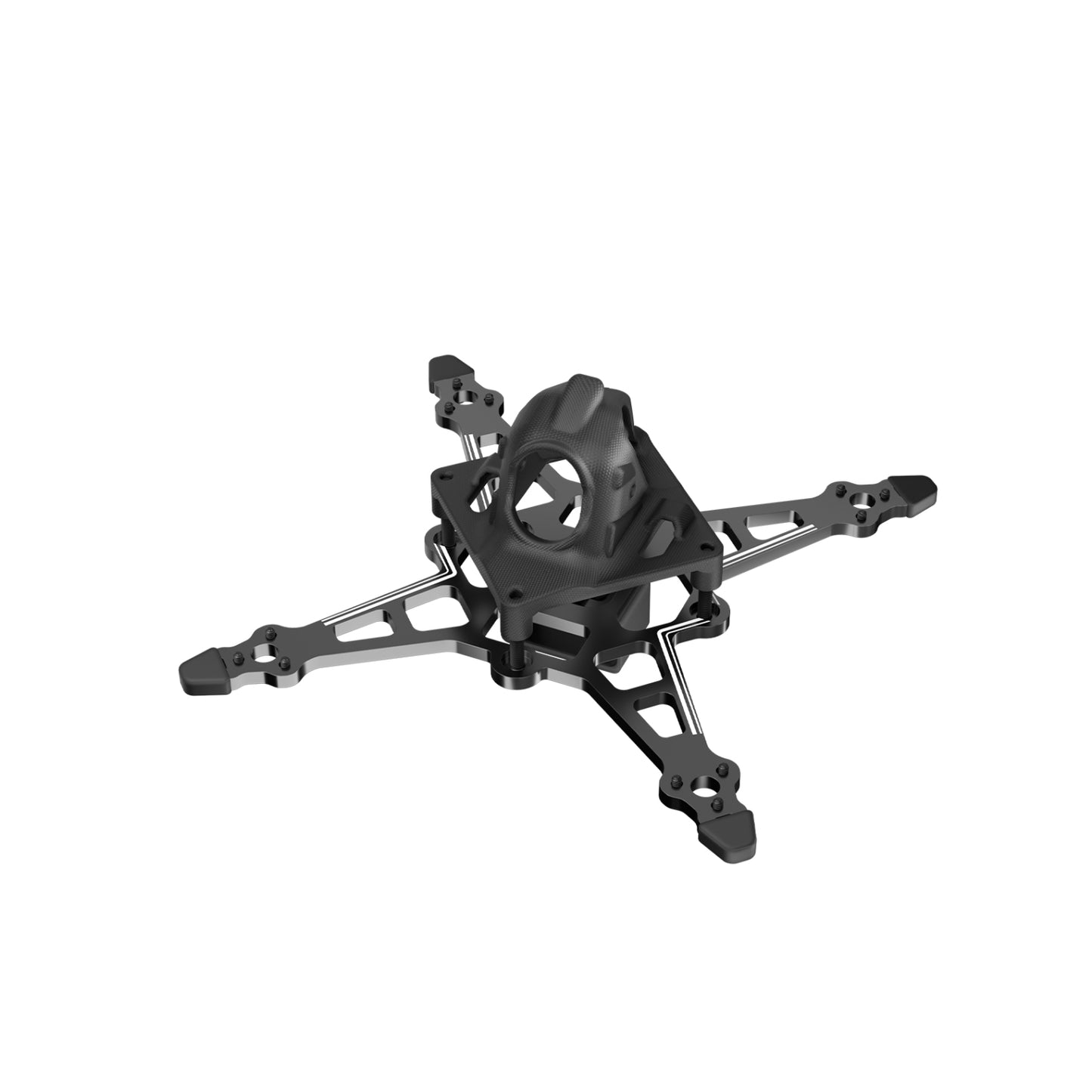

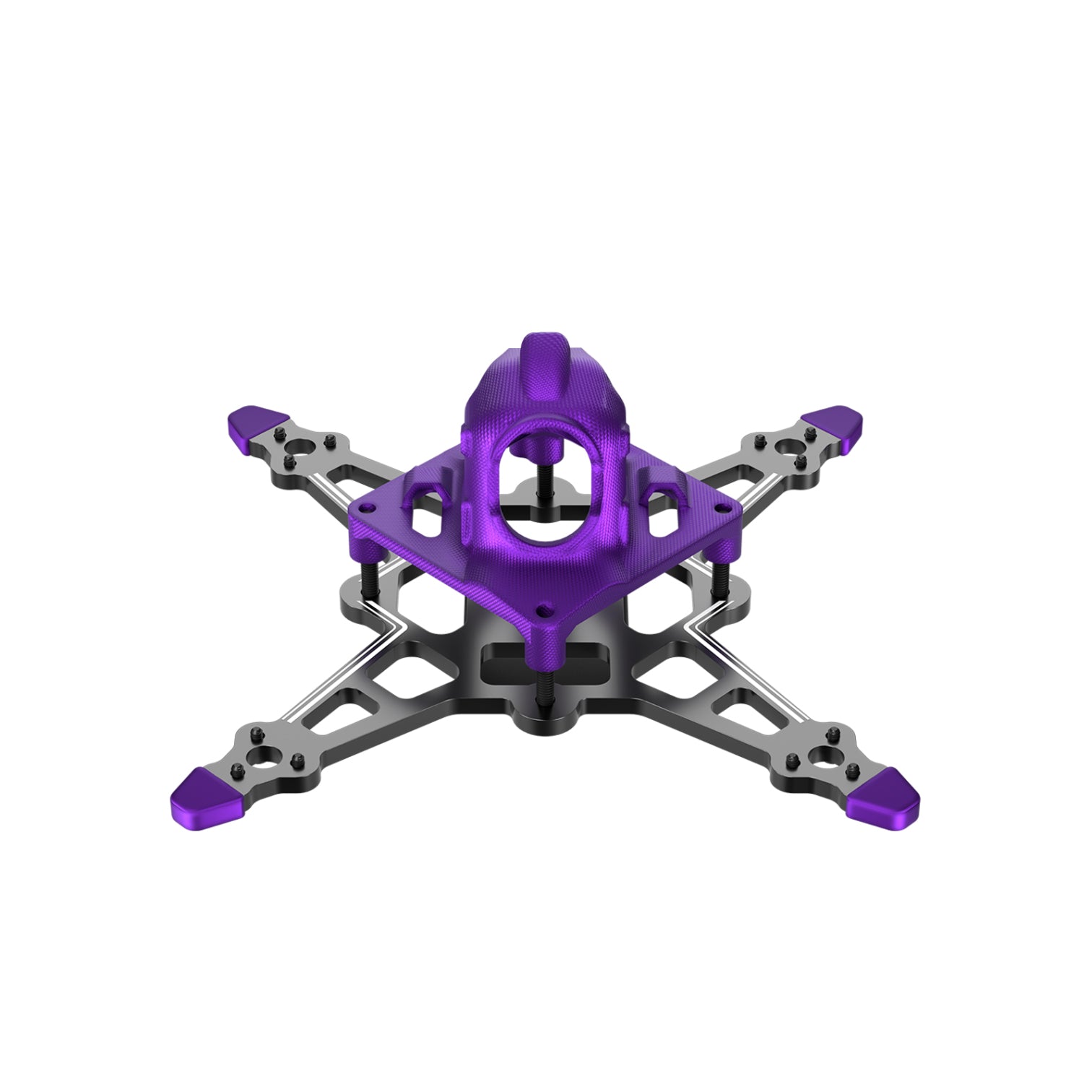

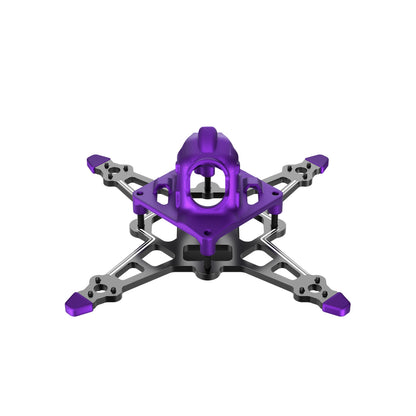

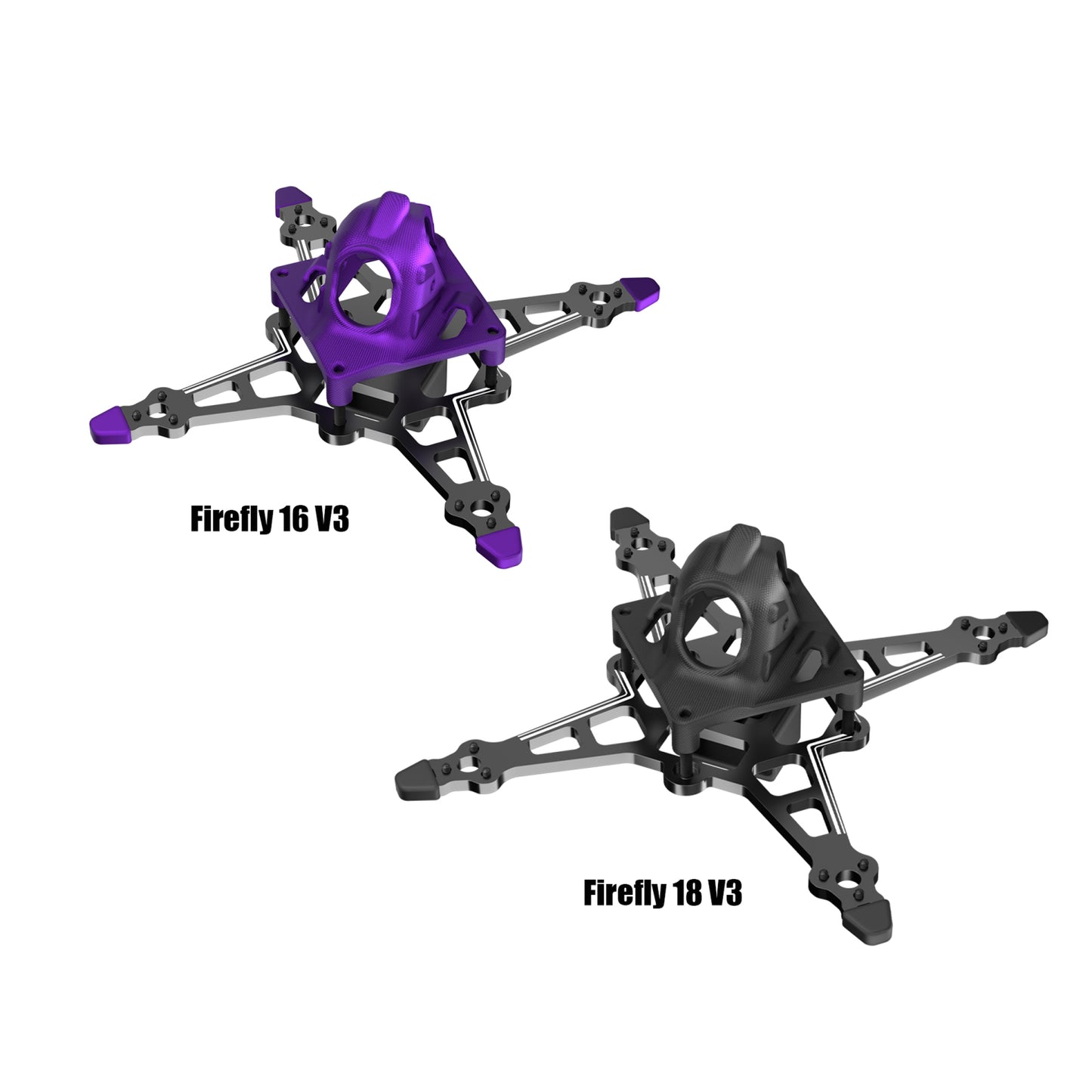

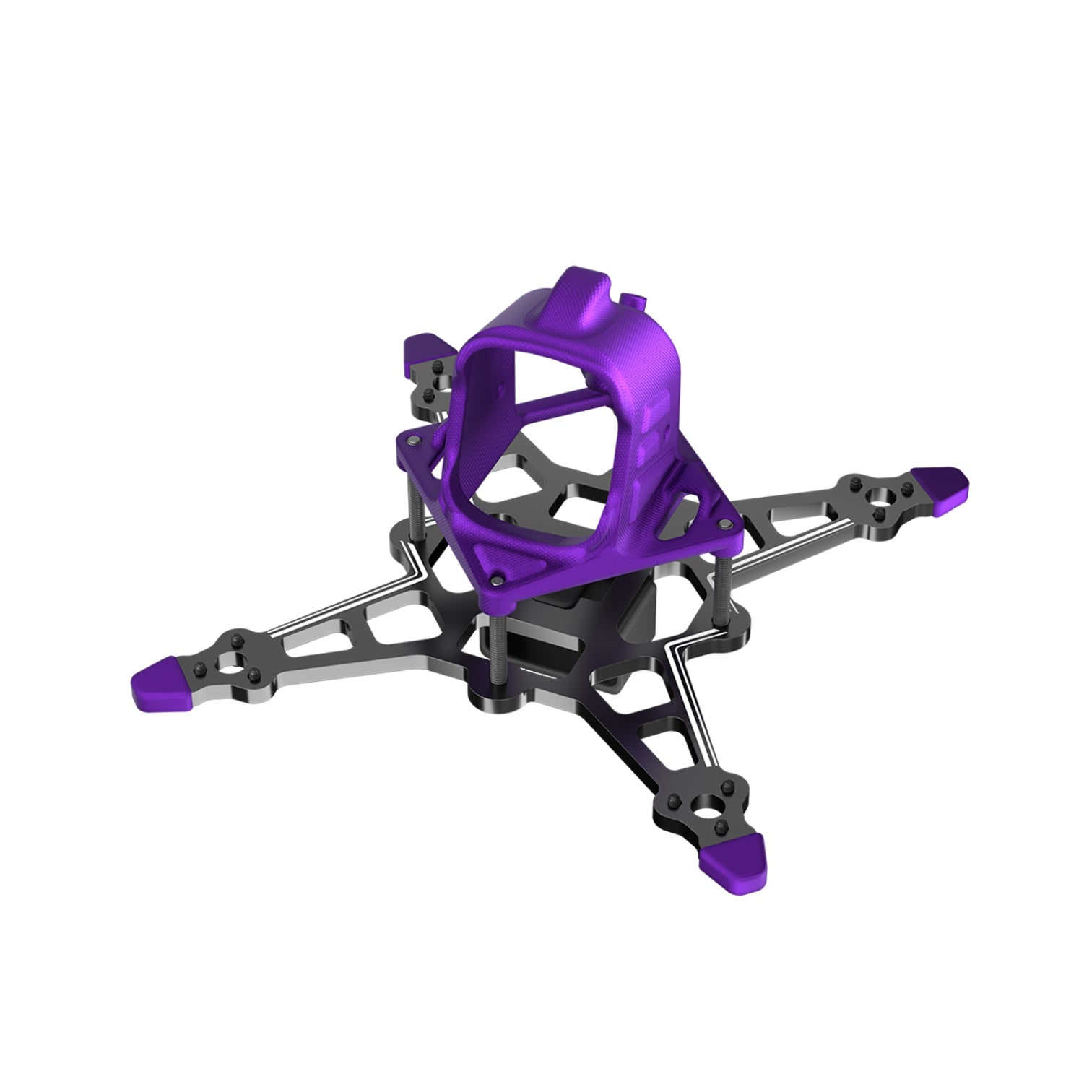

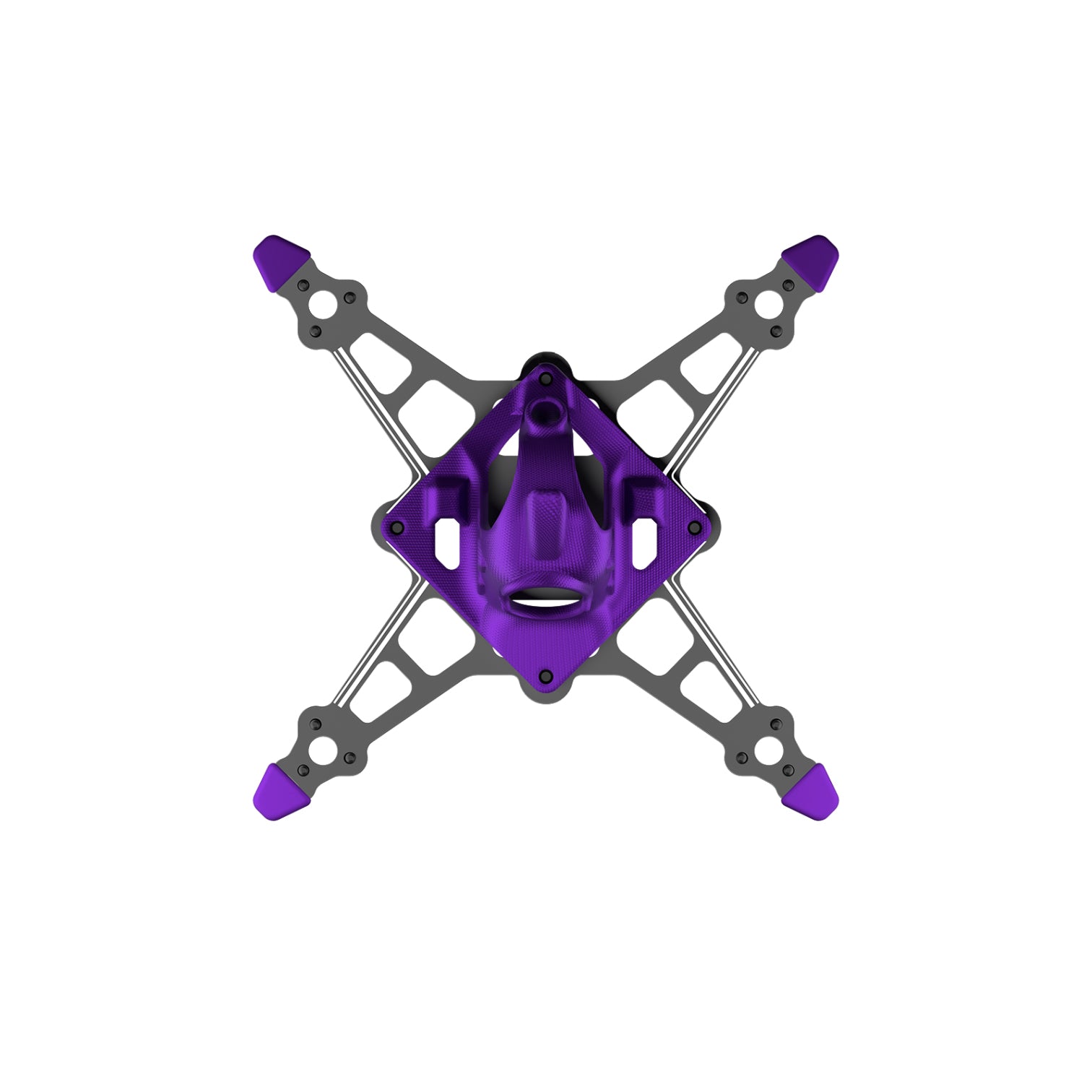

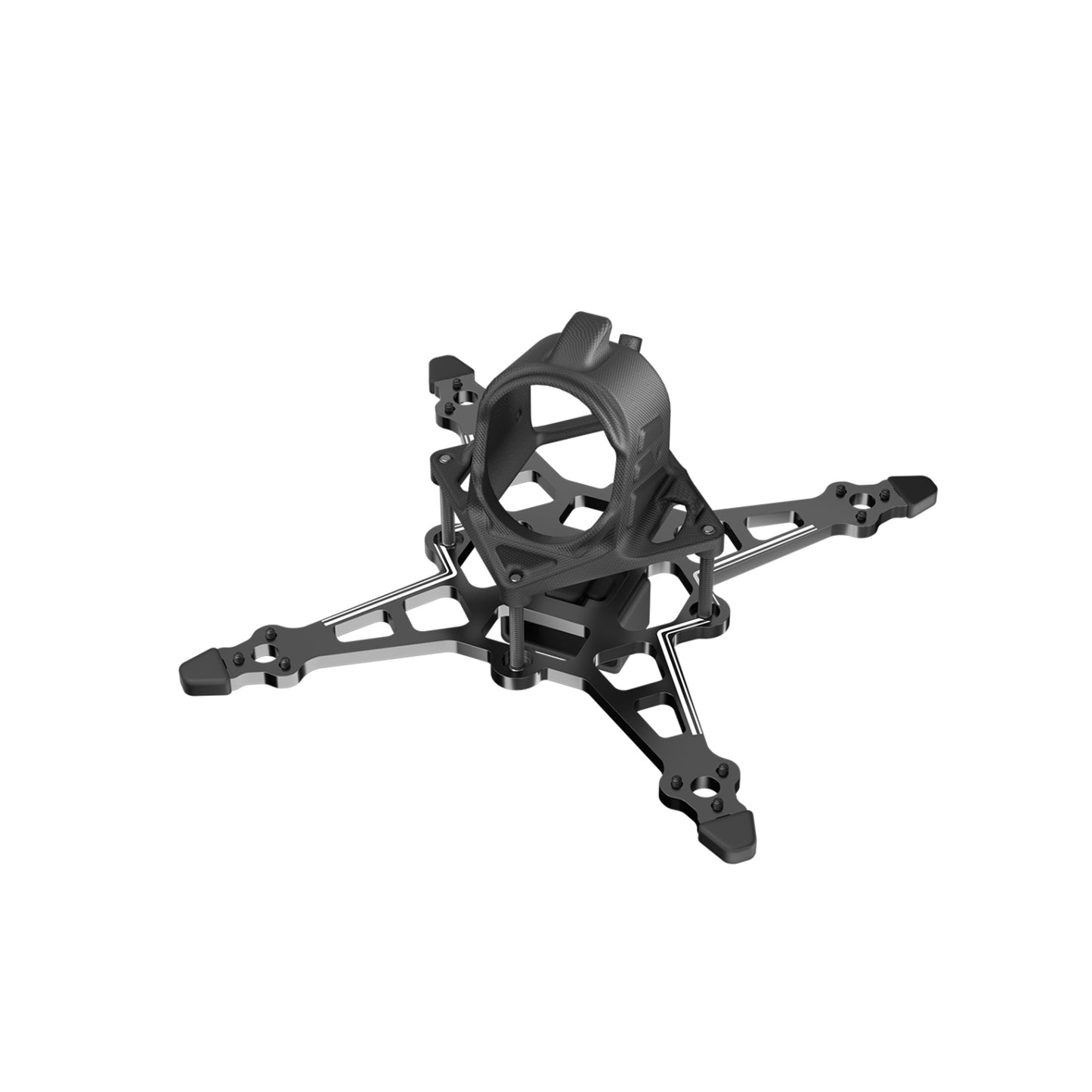

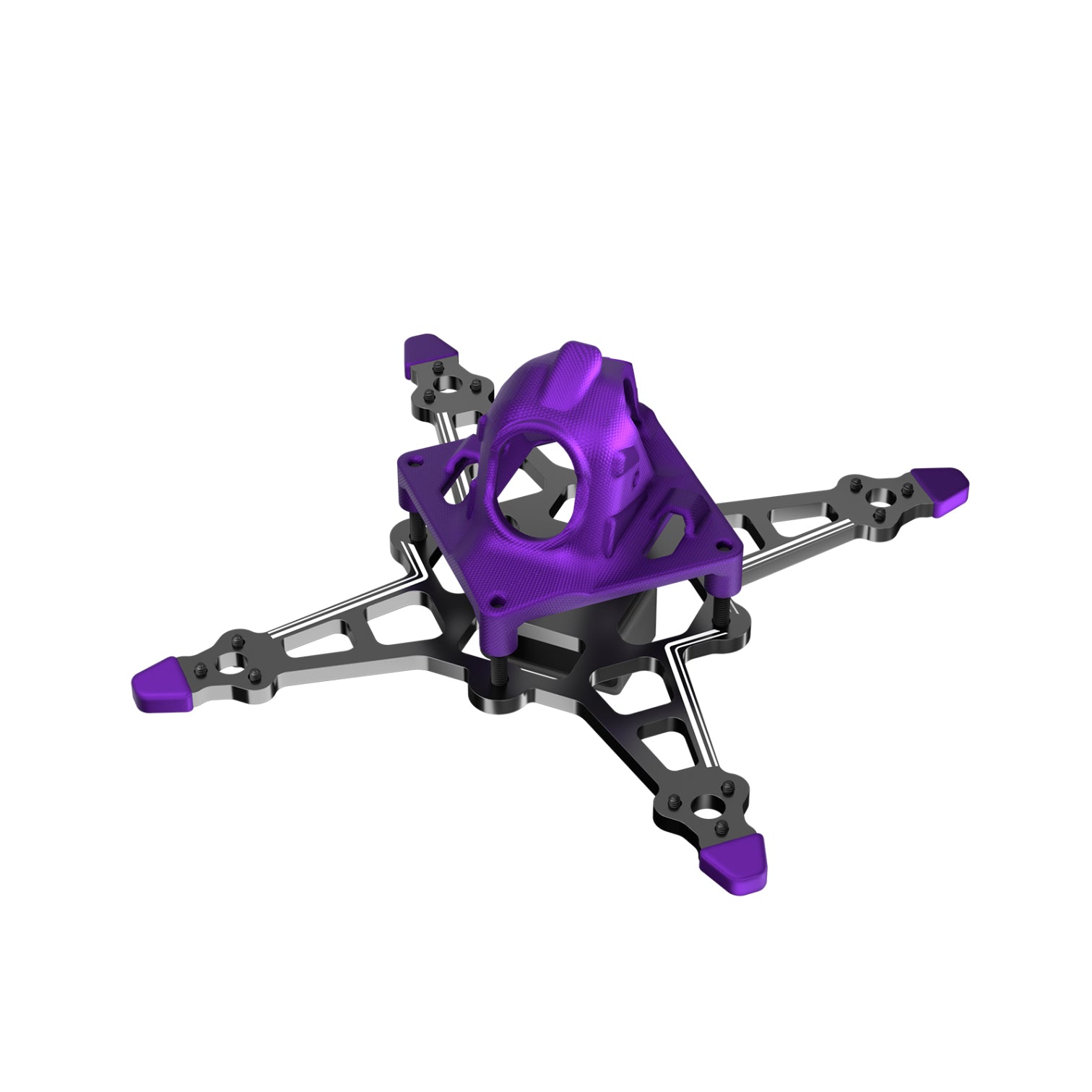

The Firefly 16/18 1S Nano Baby V3 Frame Kit, developed by FLYWOO, is an ultra-lightweight and compact frame solution designed for micro drones. It offers flexible size options (16 or 18 versions), enabling you to build high-performance Nano Baby-class drones with ease.

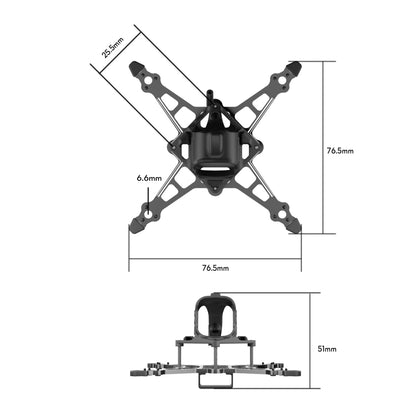

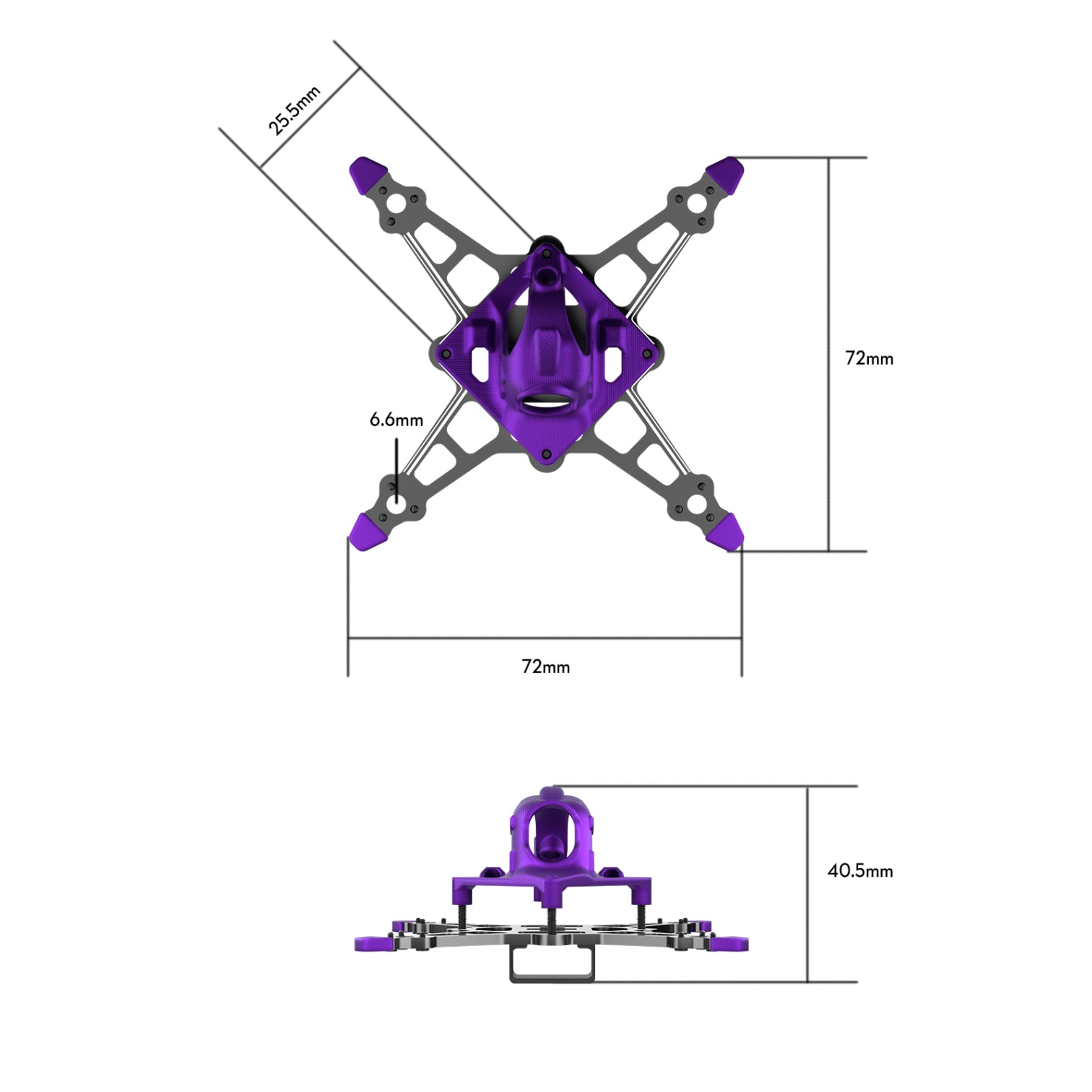

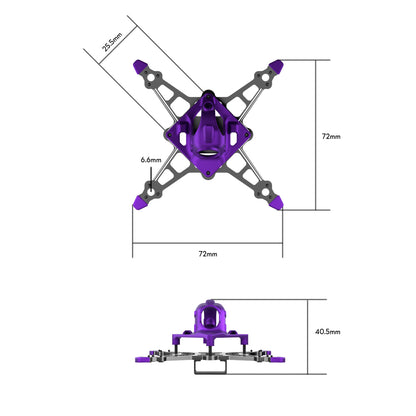

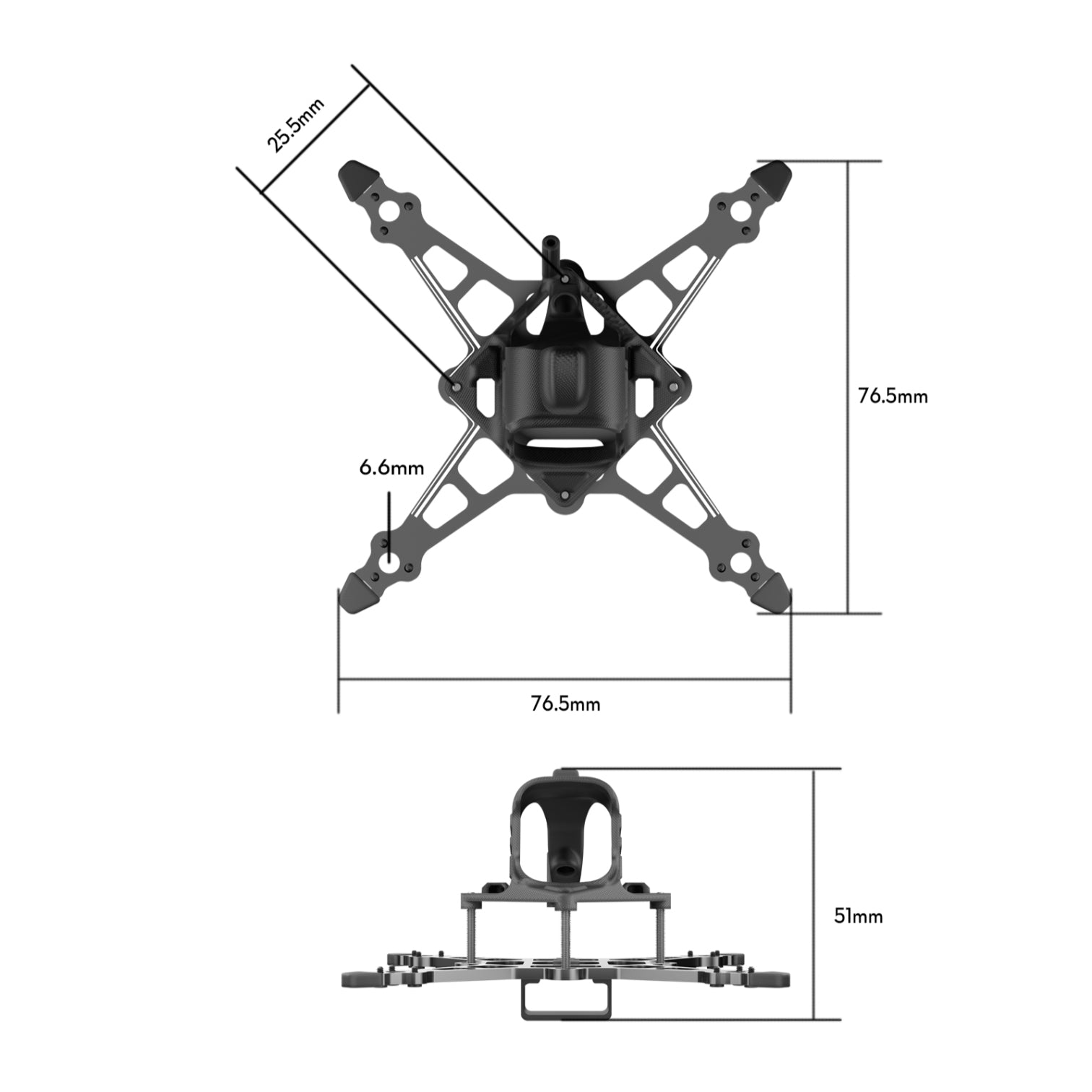

Specifications:
| Brand | FLYWOO |
| Model | Firefly16 / 18 1S V3 |
| Main Board Thickness | 2mm |
| Flight Control Hole Position | 25.5x25.5mm |
| Motor Position | 6.6mm |
|
Propeller Size
|
40mm x3 (16 ) / 45mm x2 (18)
|

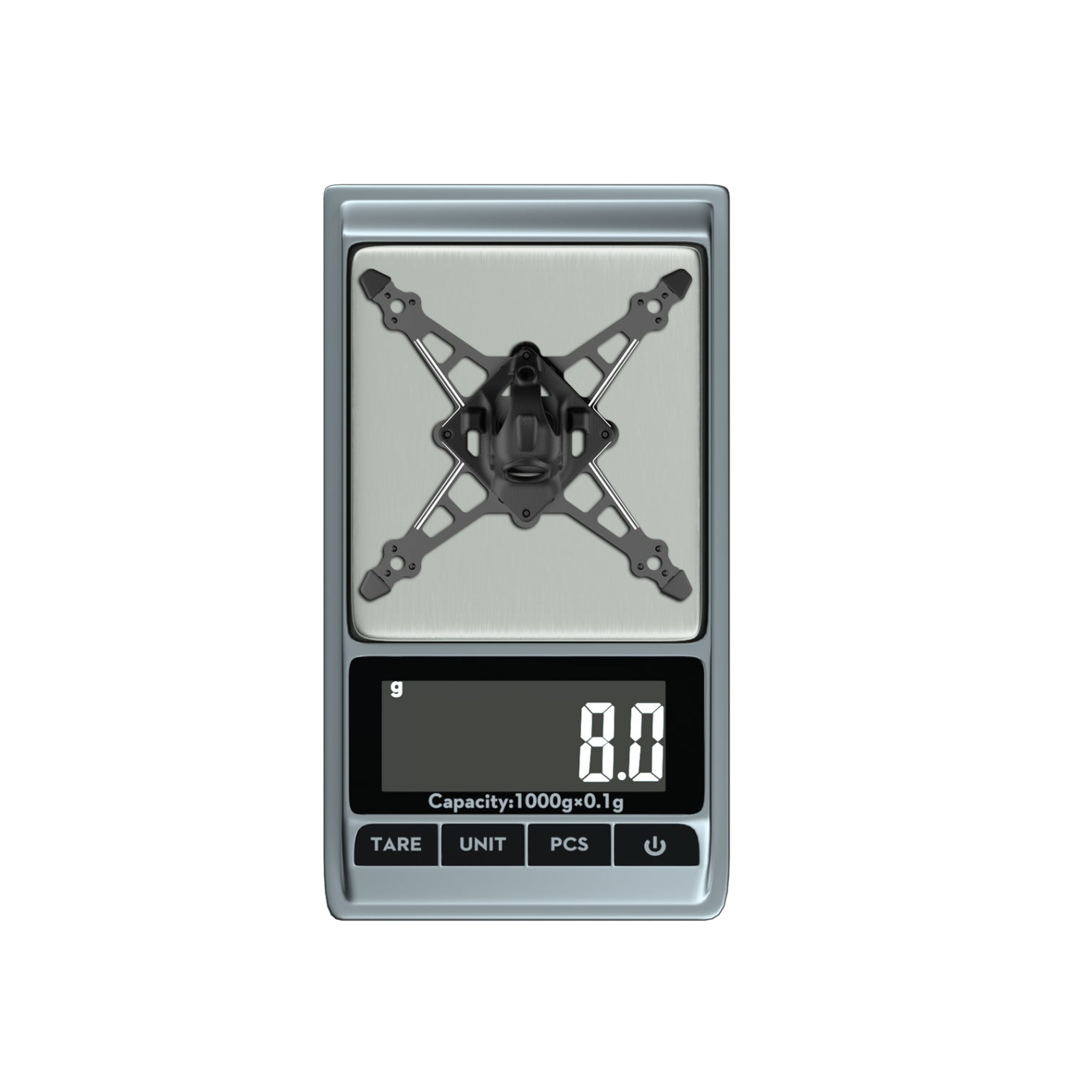

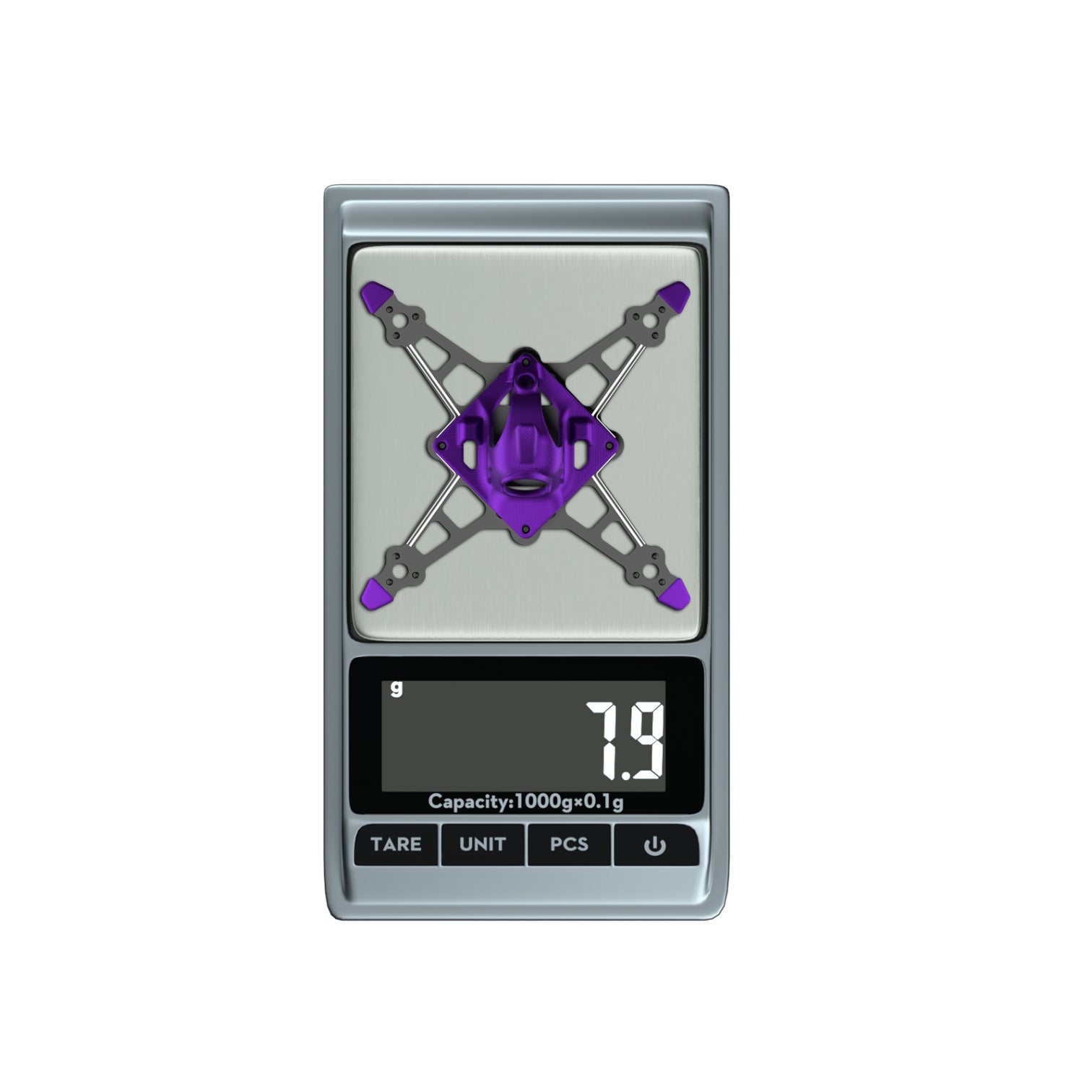

| Weight |
7.9g(16) / 8g(18)
|
Recommmend Configur16ation :
| Model | Firefly18 1S Nano Baby V3 Analog Tiny Drone |
| Frame | Firefly18 1S Nano Baby V3 O4 Frame kit |
| Electronic |
GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO
|
| Transmission | GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO |
| Camera | Flywoo 1S Nano Camera V3 |
| Propeller |
HQ 45MMX2 (Firefly18) / HQ 40MM X3 (Firefly 16)
|
| Motor |
ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16)
|
|
Battery Connector
|
A30
|
| Model | Firefly16 / 18 1S Nano Baby V3 O4 Tiny Drone |
| Frame | Firefly16 / 18 1S Nano Baby V3 O4 Frame kit |
| Electronic |
GOKU F405 HD 1S 1S 5A AIO W/TXCO ELRS （BNF-DJI without ELRS RX）
|
| Transmission | DJI O4 Air unit |
| Camera | DJI O4 Camera |
| Propeller |
HQ 45MMX2 (Firefly18) / HQ 40MM X3 (Firefly 16)
|
| Motor |
ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16)
|
|
Battery Connector
|
A30
|
| Model | Firefly 16 / 18 1S Nano Baby V3 HDZero Tiny Drone |
| Frame | Firefly16 / 18 1S Nano Baby V3 HDZero Frame kit |
| Electronic | GOKU F405 HD 1S 1S 5A ELRS AIO |
| Transmission | HDZero Whoop Lite VTX |
| Camera | HDZero Nano V3 Camera |
| Propeller |
HQ 45MMX2 (Firefly18) / HQ 40MM X3 (Firefly 16)
|
| Motor |
ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16)
|
|
Battery Connector
|
A30
|
| Model | Firefly 16 / 18 1S Nano Baby V3 Walksnail Tiny Drone |
| Frame | Firefly16 / 18 1S Nano Baby V3 Walksnail Frame kit |
| Electronic | GOKU F405 HD 1S 1S 5A ELRS AIO |
| Transmission | Walksnail Avatar HD Mini 1S VTX |
| Camera | Walksnail Avatar HD Nano Camera |
| Propeller |
HQ 45MMX2 (Firefly18) / HQ 40MM X3 (Firefly 16)
|
| Motor |
ROBO 1002 19800KV（Firefly18）/ ROBO 1002 23500KV (Firefly 16)
|
|
Battery Connector
|
A30
|
