Purpose-built for HD digital FPV. Shared dual-platform design for 2-inch high-speed racing and 2.5-inch long-endurance freestyle, breaking the boundaries between frame types.

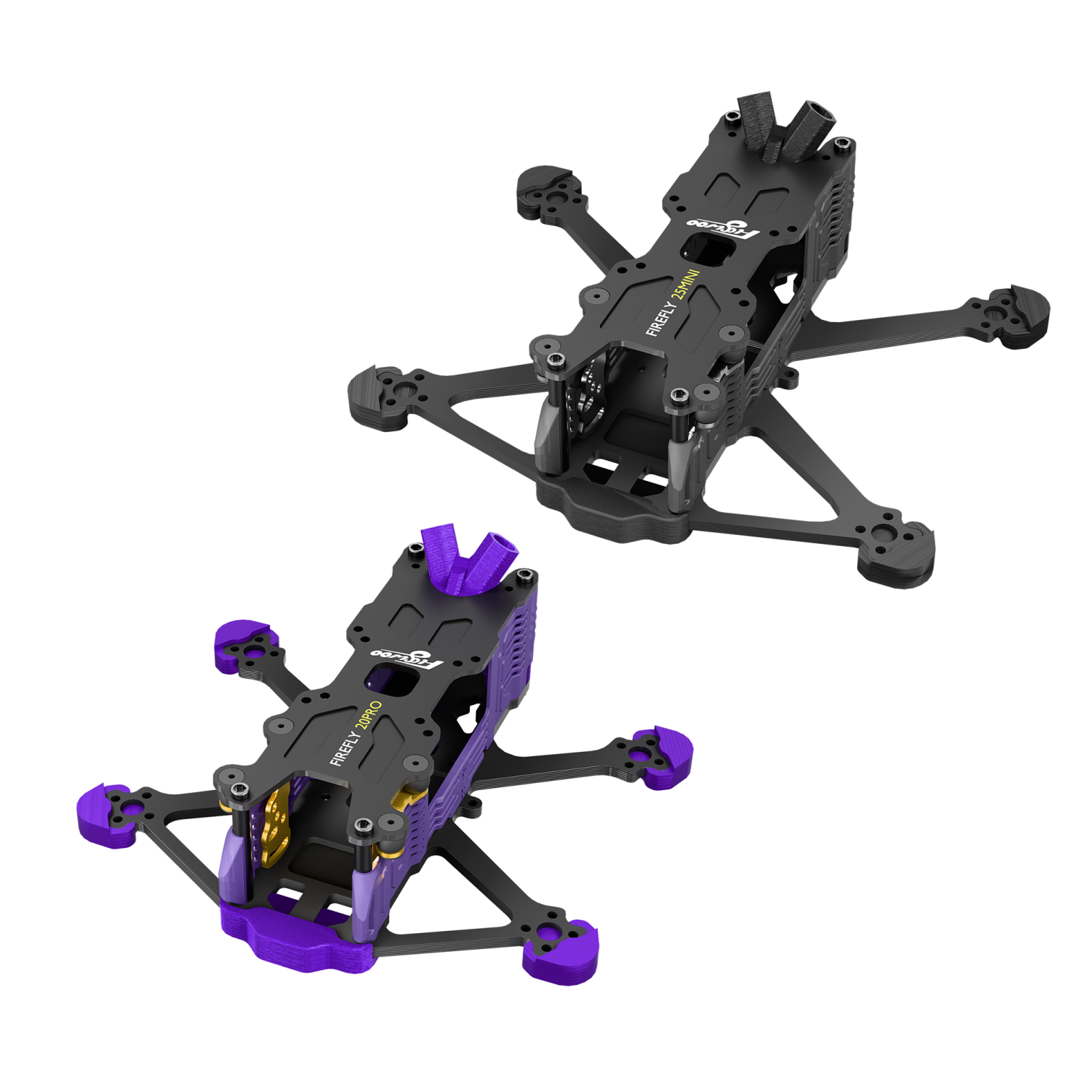

The Firefly 20PRO/25MINI is a dual-format micro FPV frame tailored for pilots. Designed with the core philosophy of "lowering the entry barrier, reducing duplicate investments, and improving crash resilience," it perfectly fits DJI O4 / O4 PRO / Walksnail / HDZero digital FPV systems. One HD VTX setup can be seamlessly swapped between the 2-inch racing and 2.5-inch freestyle builds.
Crafted from high-strength carbon fiber, featuring a 2.5mm thickened base plate combined with reinforced front arm structures, ensuring ultra-high rigidity and impact resistance while maintaining extreme lightness. From the tool-free quick-release side guards and clean wiring layout to the adjustable shock-dampening camera mount, it comprehensively covers all flight scenarios from beginner entry-level to high-tier racing, letting every pilot focus purely on the flight.
Product Highlights
-
Shared dual-frame platform for 2-inch high-speed racing and 2.5-inch long-endurance freestyle
-
4-screw quick swap for full HD FPV system, no repeated gear investment
-
Fully compatible with DJI O4/O4 PRO, Walksnail and HDzero digital FPV systems
-

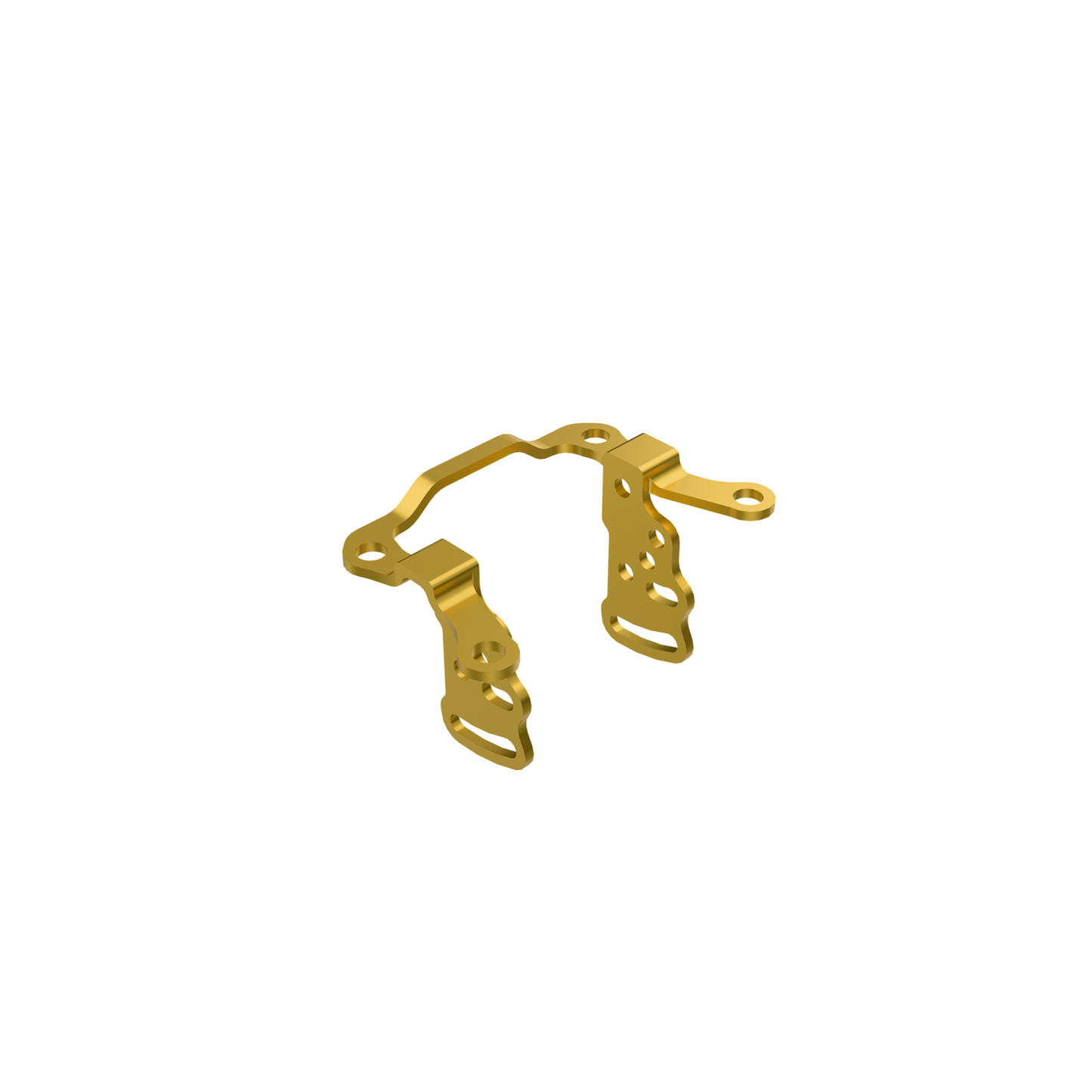

4-point shock-isolating camera mount, eliminates image jello completely
-
0°-25° adjustable camera tilt, fits all mainstream FPV camera sizes
-

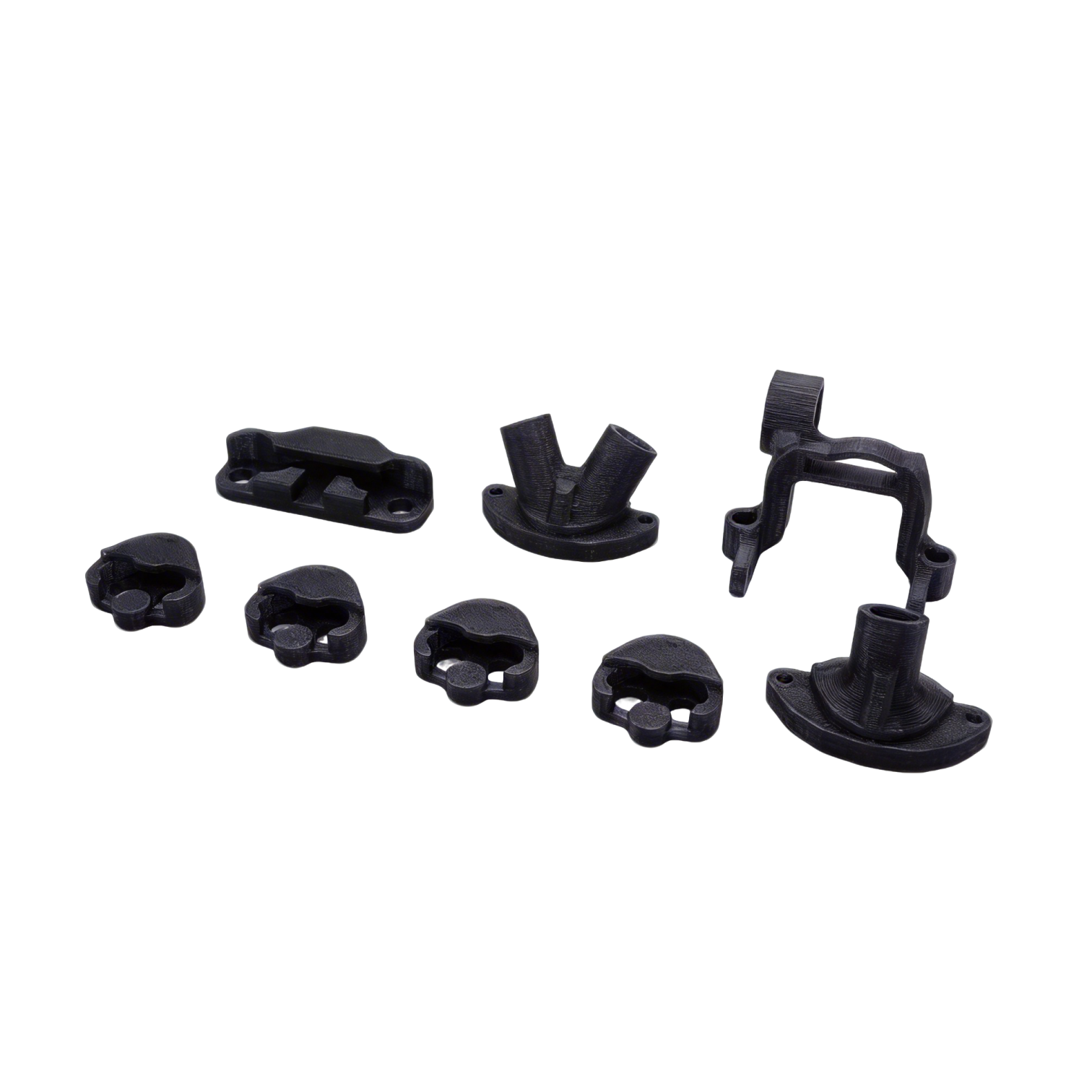

Tool-free quick-release side guards for instant installation and removal
-
High-strength carbon fiber construction, balances ultra-light weight and extreme rigidity
-

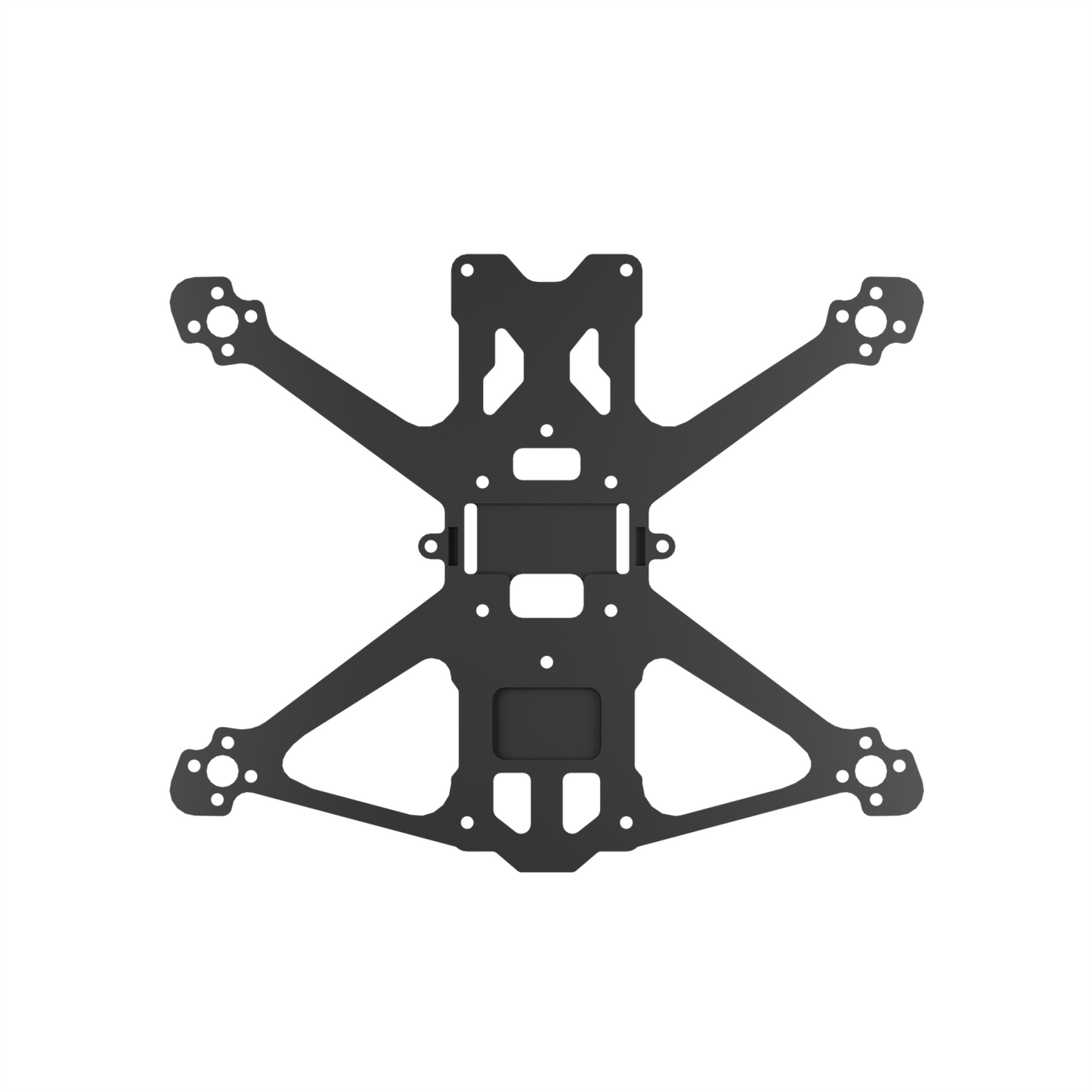

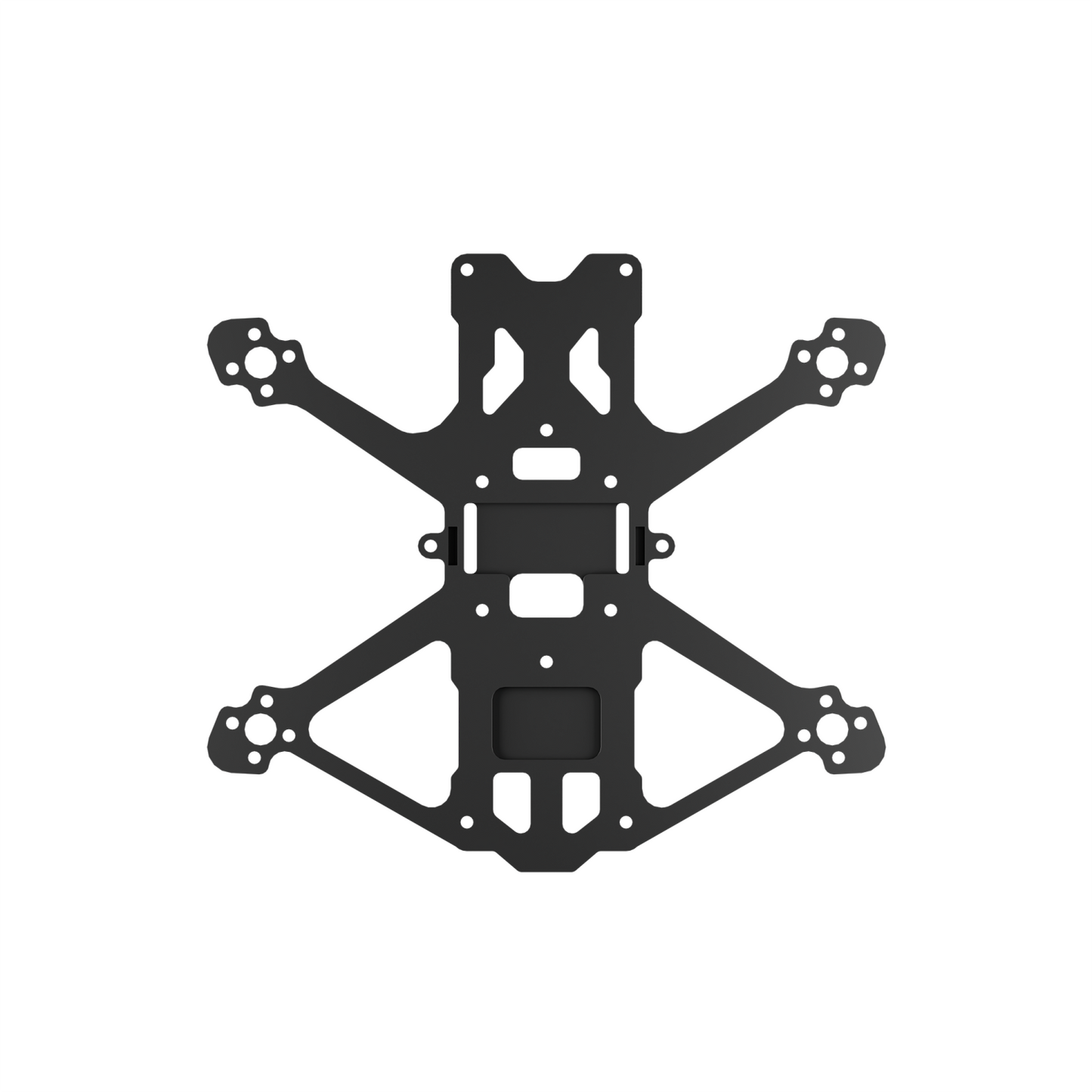

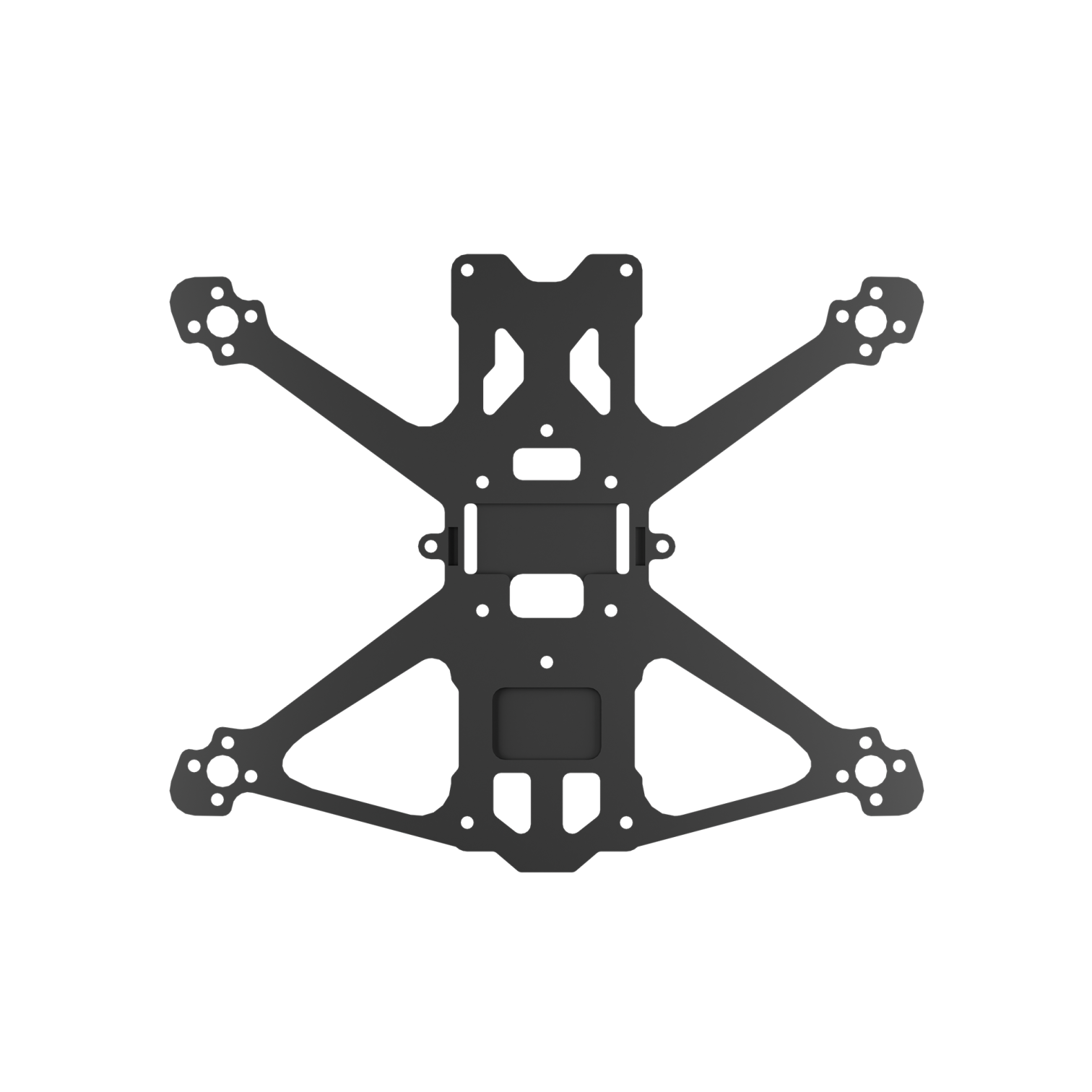

2.5mm thickened base plate + reinforced one-piece arms for maximum crash resistance
Specifications：

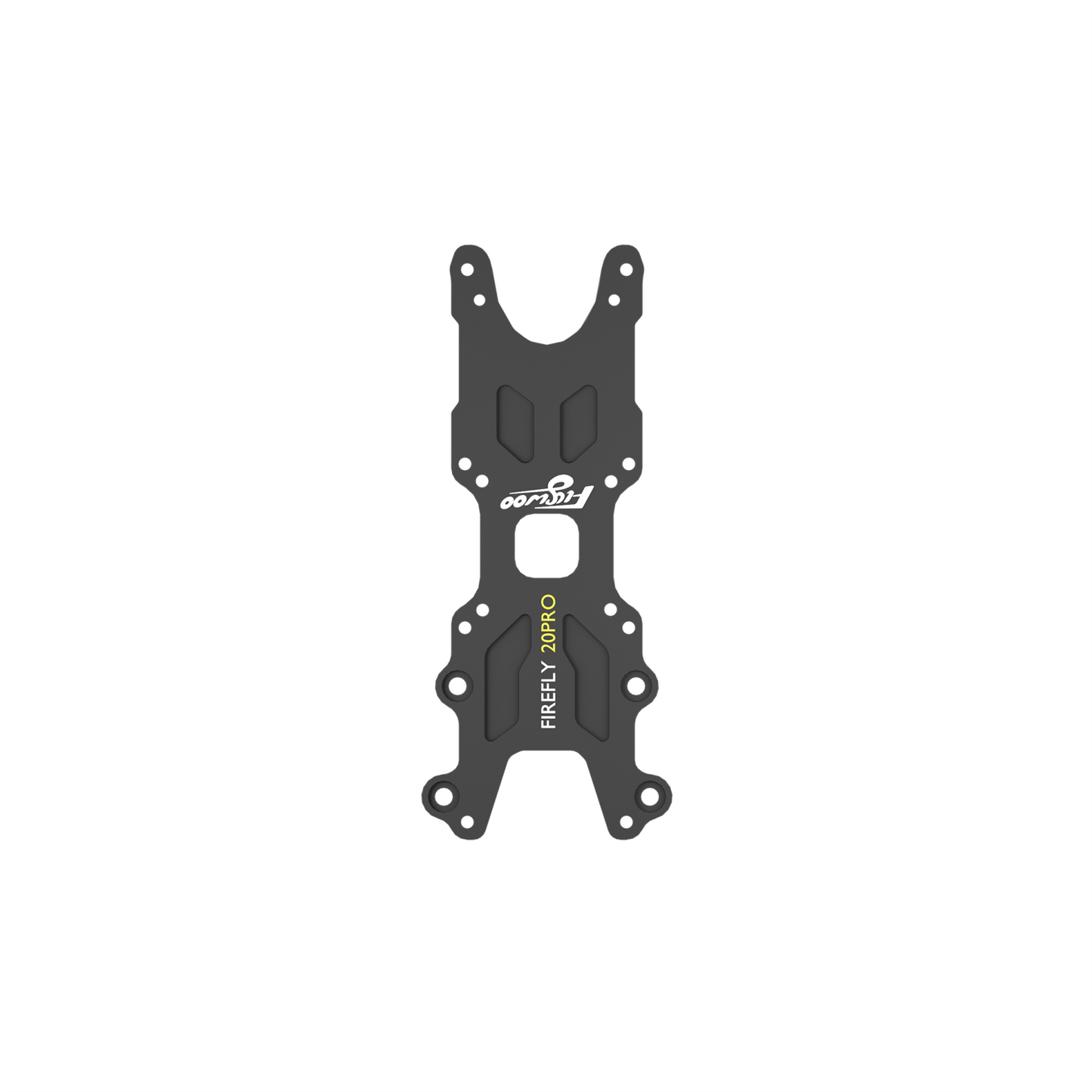

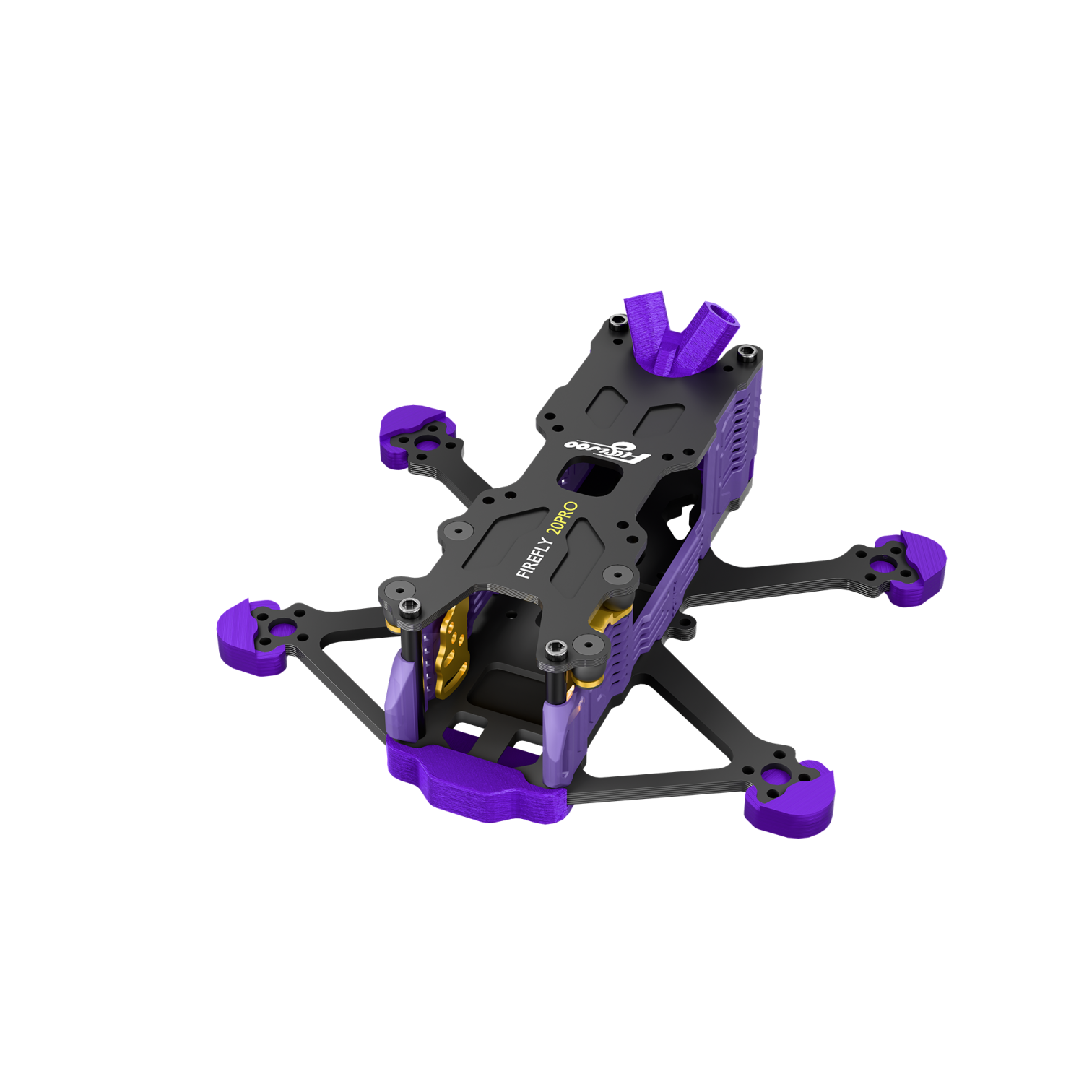

| Product Name | Firefly 20PRO Frame Kit |
| Dimensions | 110mm*105mm*33mm |
| Wheelbase | 105mm |
| FC Mount Hole | 20*20mm |
| VTX Mount Hole |
20*20mm / 25.5*25.5mm
|
| Motor Mount Hole |
4-M2-φ9mm
|
| Weight |
26g
|
| Propeller |

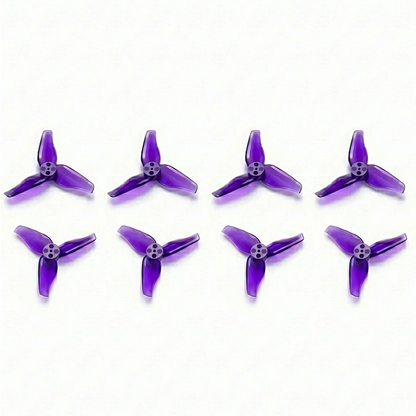

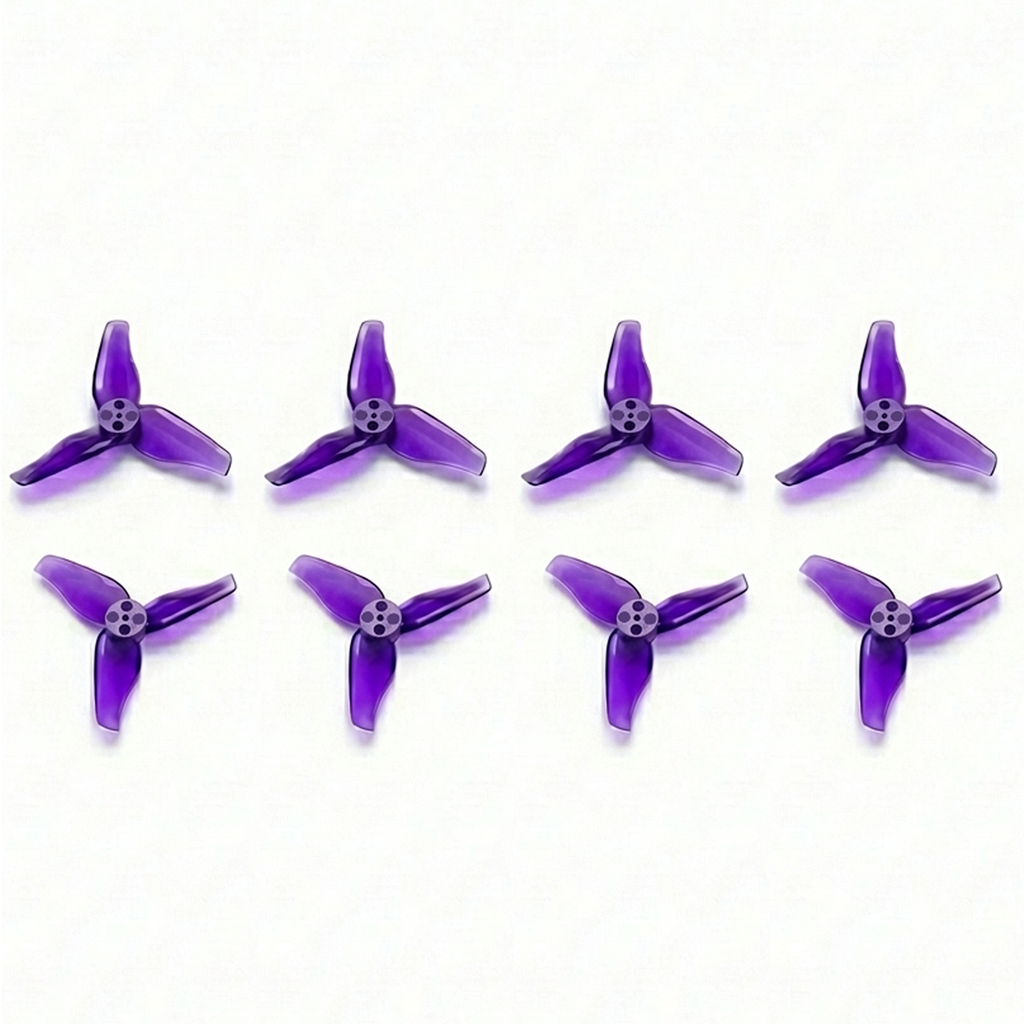

Gemfan 2023-3 3-Blade Prop
|
| FC & ESC |
GOKU F405 SE 3-4S 20A AIO
|
| Motor |
ROBO 1303 6000KV Brushless Motor
|
| HD System |
O4 Wide Air Unit / Walksnail Avatar Pro Kit / O4 PRO Air Unit / HDZero Whoop Lite W/ Runcam Micro cam
|
| Receiver |
Flywoo TCXO 2.4G ELRS EL24P
|
| Recommended Battery |
Flywoo 4S 450mAh LiHV / 4S 750mAh LiHV
|

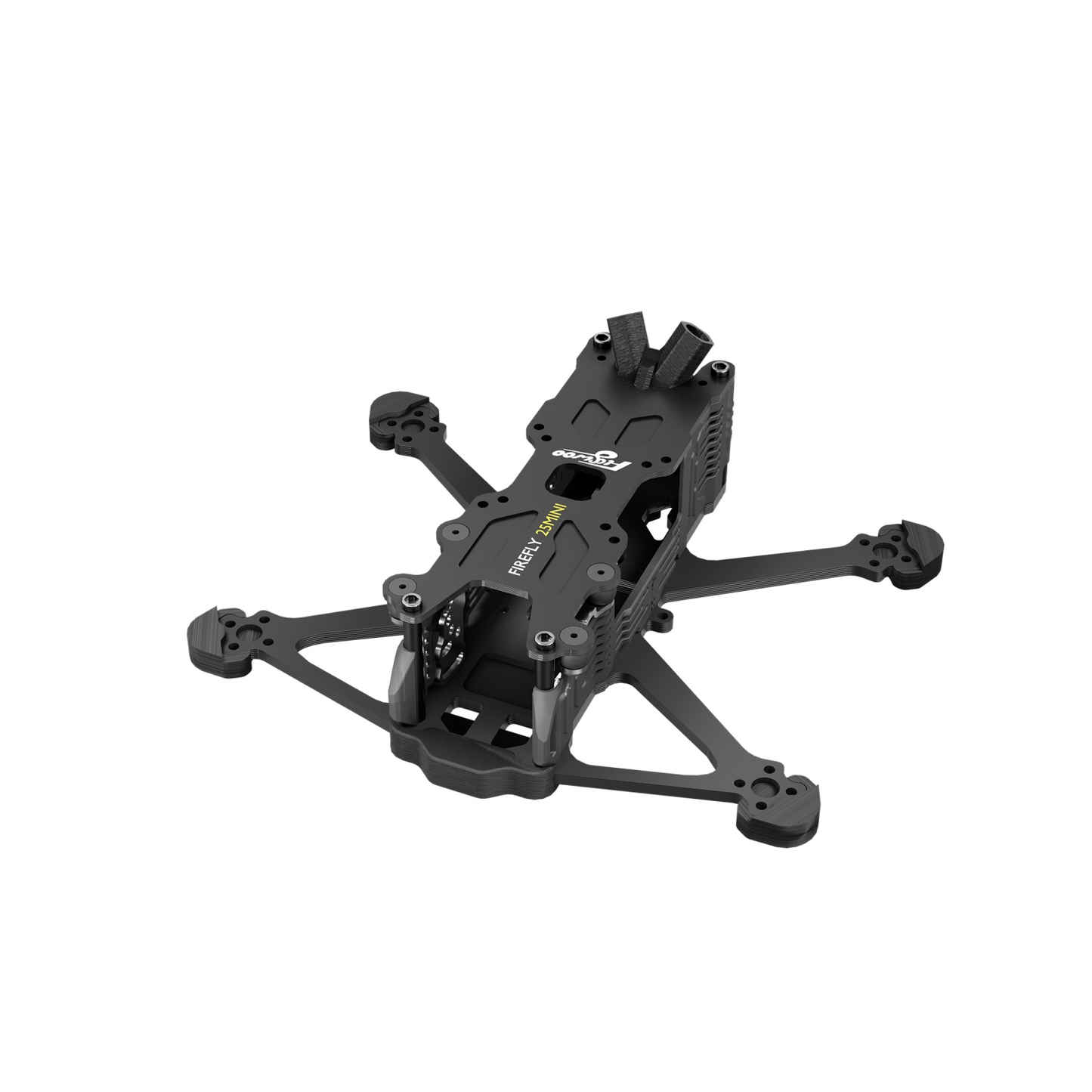

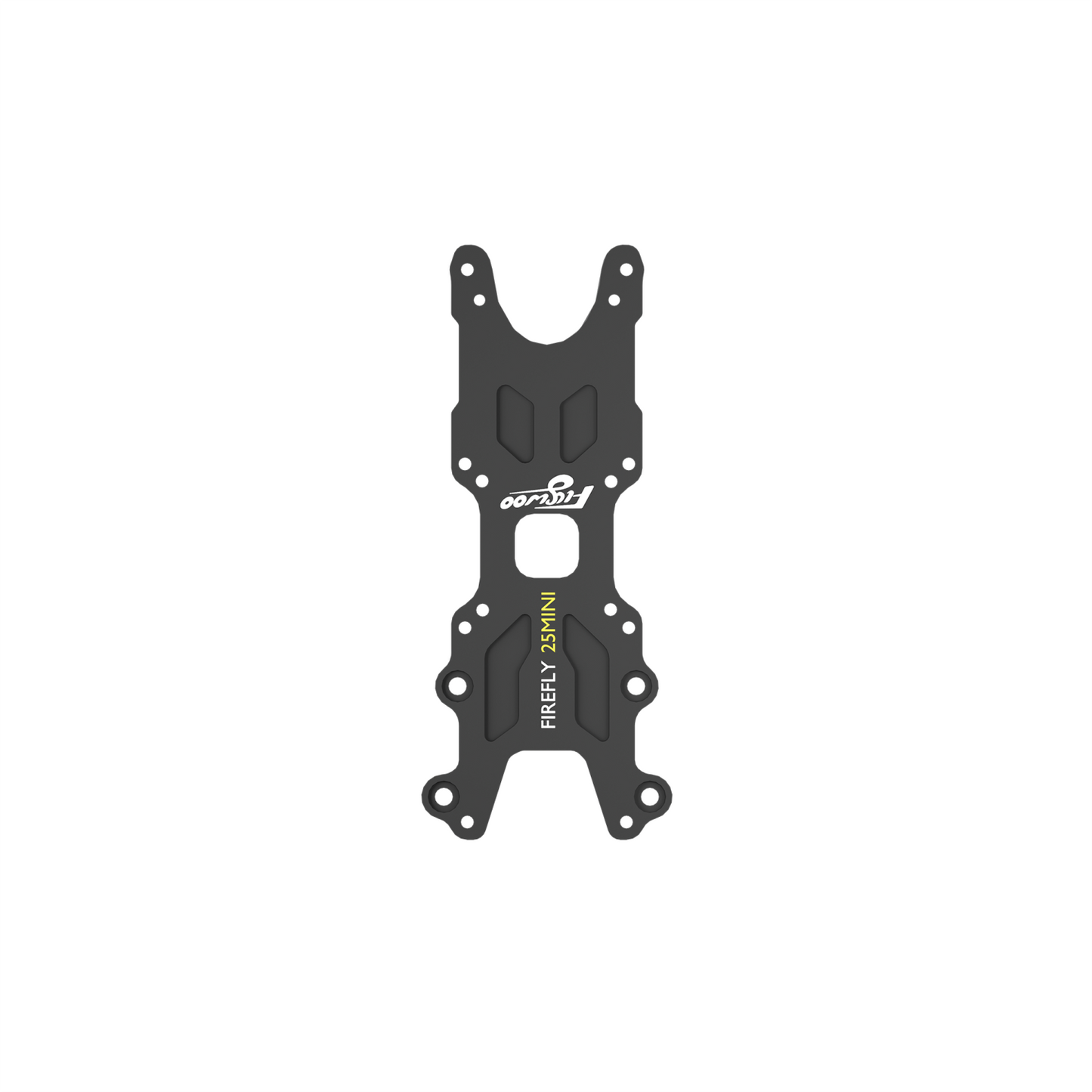

| Product Name | Firefly 25MINI Frame Kit |
| Dimensions | 122mm*105mm*33mm |
| Wheelbase | 122mm |
| FC Mount Hole | 20*20mm |
| VTX Mount Hole |
20*20mm / 25.5*25.5mm
|
| Motor Mount Hole |
4-M2-φ9mm
|
| Weight |
27g
|
| Propeller |

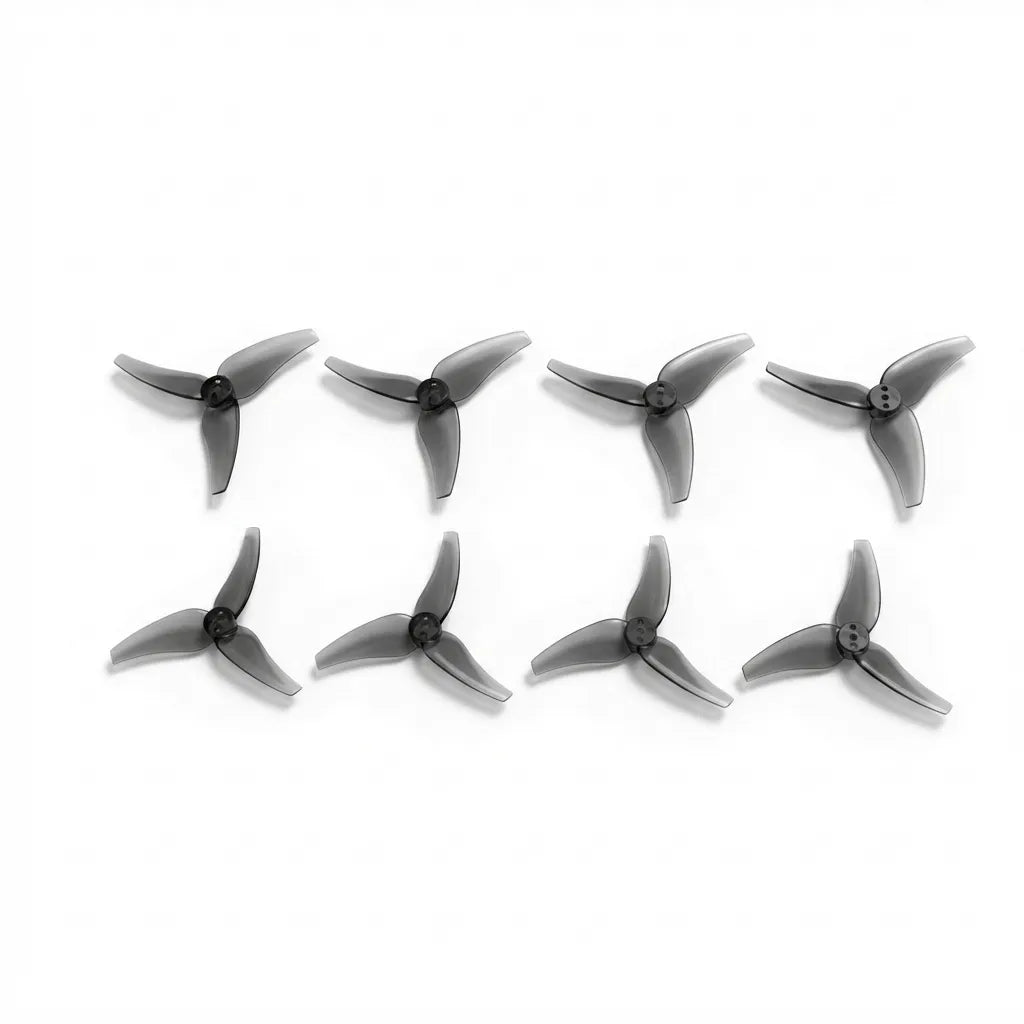

Gemfan 2520-3 3-Blade Prop
|
| FC & ESC |
GOKU F405 SE 3-4S 20A AIO
|
| Motor |
ROBO 1303 6000KV Brushless Motor
|
| HD System |
O4 Wide Air Unit / Walksnail Avatar Pro Kit / O4 PRO Air Unit / HDZero Whoop Lite W/ Runcam Micro cam
|
| Receiver |
Flywoo TCXO 2.4G ELRS EL24P
|
| Recommended Battery |
Flywoo 3S 550mAh LiHV / 3S 750mAh LiHV / 3S 1000mAh LiHV
|
