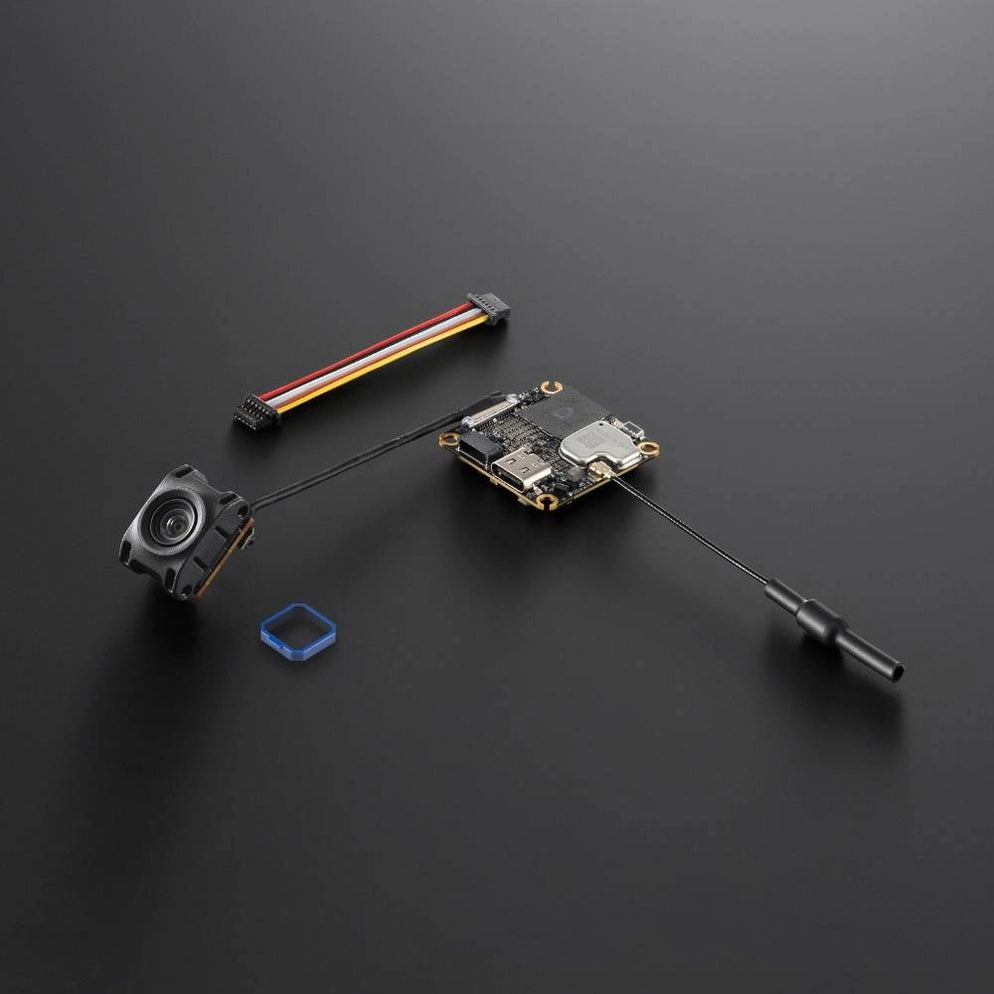

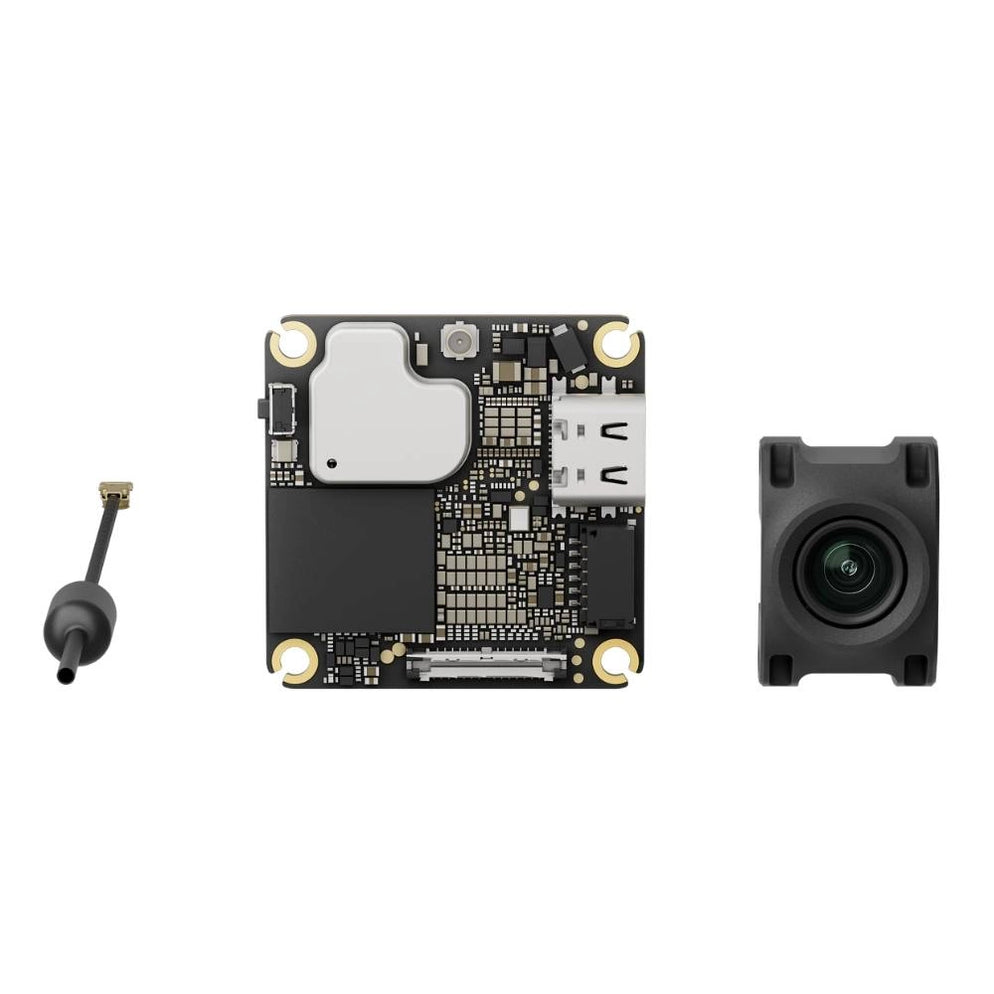

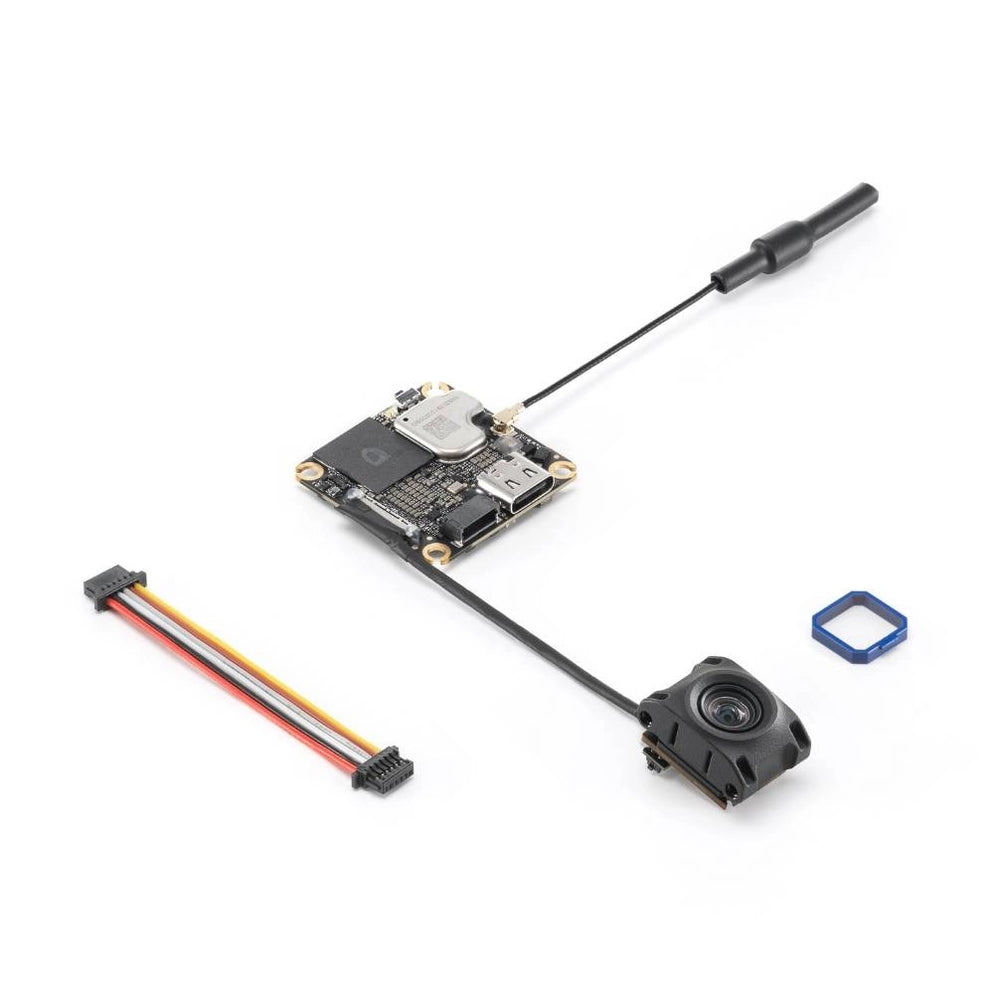

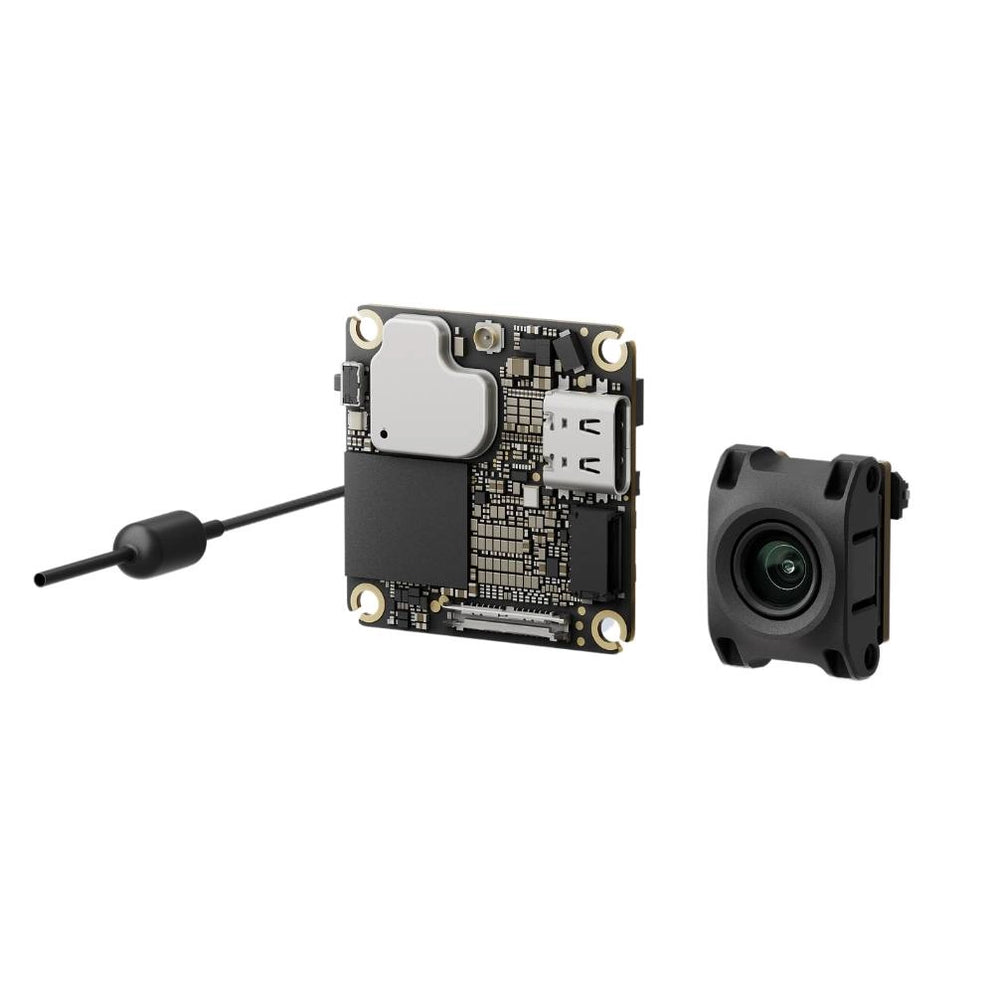

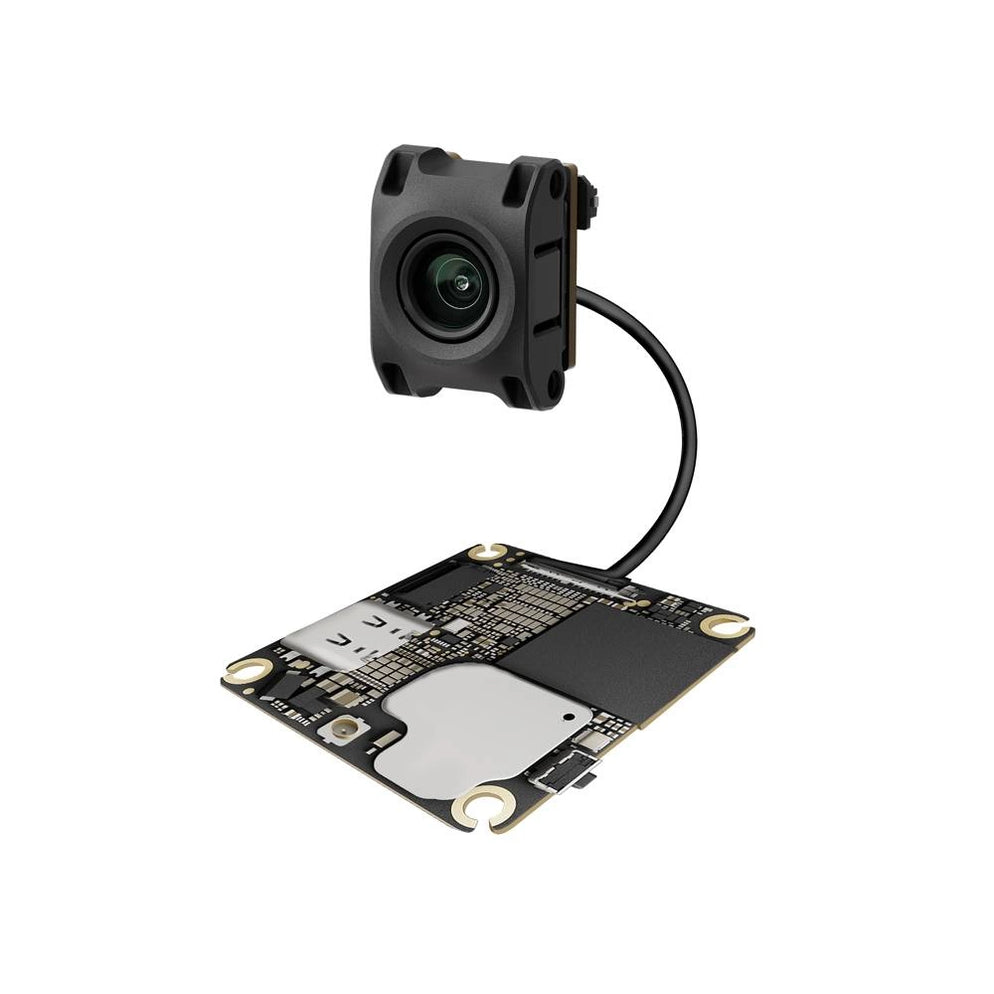

DJI O4 Air Unit Digital Transmission System

The DJI O4 Air Unit is a state-of-the-art digital video transmission system, designed to elevate your FPV drone experience with ultra-low latency, extended range, and superior image quality. Weighing approximately 8.2 grams, this compact unit integrates a 1/2-inch CMOS sensor, capable of recording 4K/60fps video, ensuring crisp and fluid visuals for both professional and hobbyist pilots.

Key Features:

• Ultra-Low Latency & Extended Range
  Experience latency as low as 20 ms and a maximum transmission distance of up to 10 kilometers, providing responsive controls and confidence during long-range flights.

• High-Definition Video Recording
  Capture stunning footage with 4K resolution at 60 frames per second, delivering smooth and detailed videosthat bring your aerial adventures to life.

• 1080p/100fps Live View
  Enjoy a crystal-clear live feed with high frame rates, ensuring immersive and responsive FPV experiences.

• Lightweight and Compact Design
  At just 8.2 grams, the DJI O4 Air Unit adds minimal weight to your drone, making it ideal for various FPV builds, including racing and freestyle configurations.

• Compatibility with DJI Goggles and Controllers
  Seamlessly integrates with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3, and DJI Goggles N3, and supports DJI FPV Remote Controller 2 and 3, offering versatile options for pilots.

Specifications:

• Weight:

  • Air Unit (excluding camera): Approx. 5.1 g
  • Air Unit (including camera): Approx. 8.2 g
  • Antenna: Approx. 0.75 g

• Dimensions:

  • Transmission Module: 30 × 30 × 6 mm
  • Camera Module: 13.44 × 12.36 × 16.50 mm
  • Coaxial Cable: 50 mm
  • 3-in-1 Cable: 50 mm
  • Antenna: 80 mm

• Operating Frequencies:

  • 5.170-5.250 GHz
  • 5.725-5.850 GHz
    (Note: Operating frequencies may vary by region. Please adhere to local regulations.)

• Video Transmission:

  • Live View Quality: 1080p at 30/50/60/100fps
  • Communication Bandwidth: Up to 60 MHz
  • Antenna Configuration: Single antenna, 1T1R

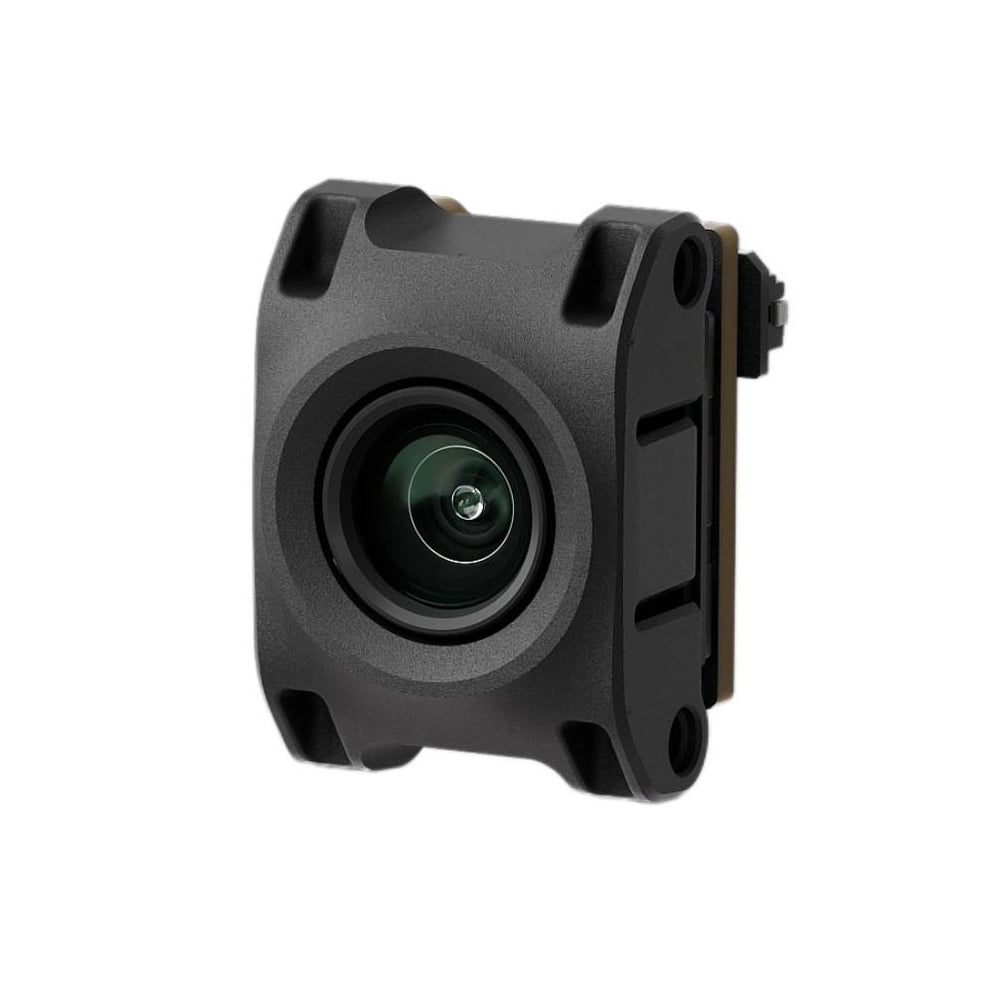

• Camera Specifications:

  • Image Sensor: 1/2-inch CMOS
  • Lens:
    • FOV: 155°
    • Aperture: f/2.8
    • Focus Range: 0.6 m to ∞
  • ISO Range: 100-25600 (Auto/Manual)
  • Video Resolutions:
    • 4K: 3840 × 2160 @ 30/48/50/60fps
    • 2.7K: 2688 × 1512 @ 30/48/50/60/100/120fps
    • 1080p: 1920 × 1080 @ 30/48/50/60/100/120fps
  • Video Format: MP4
  • Maximum Video Bitrate: 130 Mbps

• Hardware:

  • Input Voltage: 7.4-26.4 V
  • Operating Temperature: -10° to 40° C

• Storage:

  • Built-in Storage: 4GB
  • Supported microSD Cards: Up to 512 GB

Compatibility:

• Flight Controllers:

  • Supports Betaflight 4.3.0 and higher versions

• DJI Goggles and Remote Controllers:

  • DJI Goggles 3 with DJI FPV Remote Controller 3
  • DJI Goggles N3 with DJI FPV Remote Controller 3
  • DJI Goggles 2 or Goggles Integra with DJI FPV Remote Controller 2

(Note: Flight controller firmware must support the SBUS protocol to use the DJI FPV remote controller.)

Enhance your FPV experience with the DJI O4 Air Unit, combining cutting-edge technology with user-friendly features to deliver unparalleled performance.
