BetaFPV Matrix 5-in-1 AIO Brushless FC (1S 5A, 400mW VTX, ELRS 2.4GHz)

Product Description

The BetaFPV Matrix 5-in-1 AIO Brushless Flight Controller is a game-changing all-in-one solution designed for ultralight 1S whoops and toothpick drones. Featuring an integrated ELRS 2.4GHz receiver, 400mW analog VTX, 16MB Blackbox, SPI Gyro, and 5A ESCs, this compact board simplifies your build without compromising performance.

Whether you’re upgrading a micro quad or building a new 1S HD-capable whoop, the Matrix AIO provides clean wiring, less weight, and rock-solid reliability for both beginners and pros.

Key Features:

• All-in-one design: FC + ESC + VTX + ELRS RX + Blackbox

• 400mW analog video transmitter with SmartAudio

• Built-in ELRS 2.4GHz receiver for reliable signal link

• 16MB Blackbox for tuning and flight logs

• SPI MPU6000 Gyro for ultra-smooth flight performance

• Lightweight and compact for 65–85mm frames

• Ideal for micro FPV builds and tight spaces

Specifications:

• MCU: STM32F411

• Gyro: MPU6000 (SPI)

• Firmware Target: BETAFPVF411

• Receiver: Built-in ELRS 2.4GHz (UART)

• VTX: Integrated 400mW analog with adjustable power (0/25/100/200/400mW)

• ESC: 4-in-1 5A BLHeli_S (1S only)

• Blackbox: 16MB onboard

• Dimensions: 28.5mm x 28.5mm (25.5×25.5mm mounting)

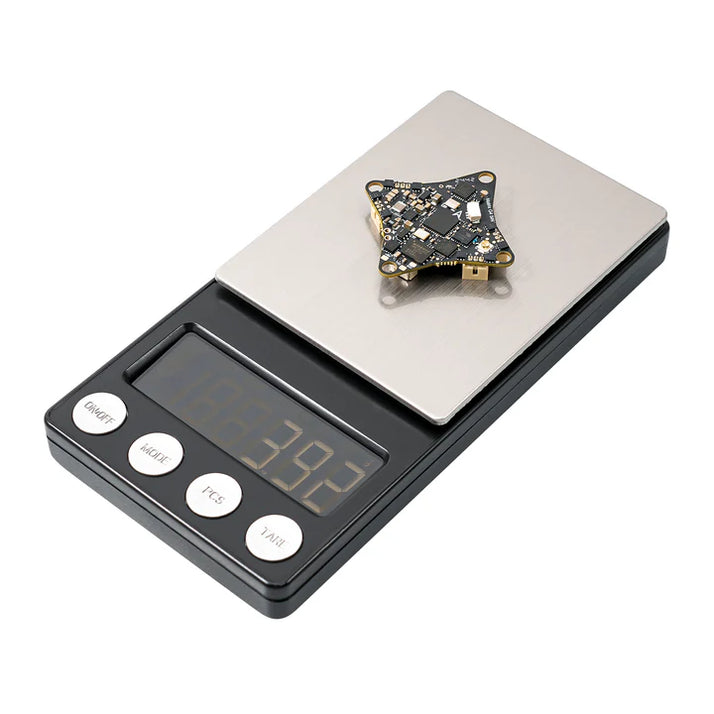

• Weight: ~5.5g

• Input Voltage: 1S LiPo / LiHV only

Perfect For:

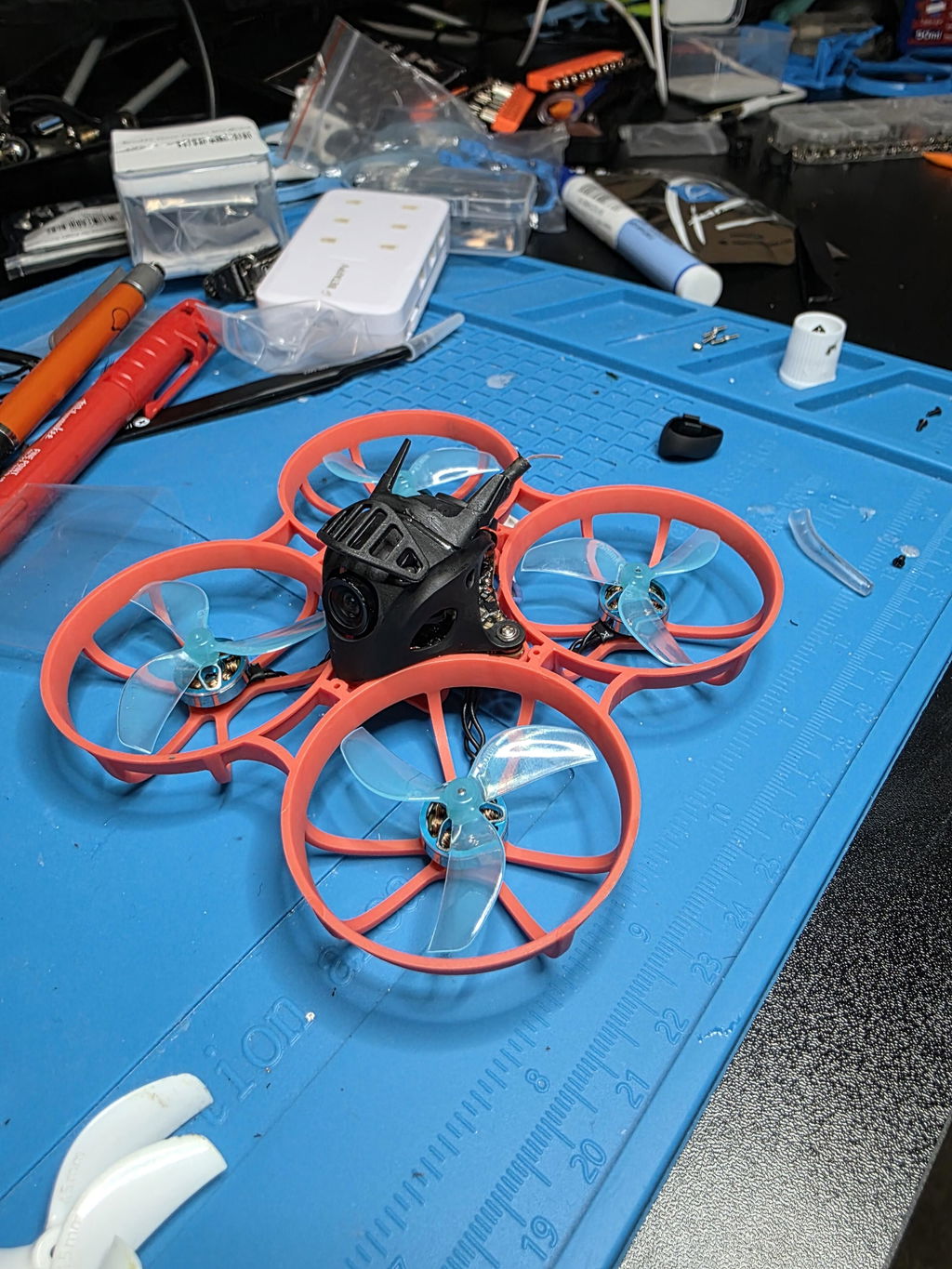

• 65mm–85mm brushless whoop builds

• Toothpick and indoor freestyle quads

• Clean, simple, and minimal wiring setups

• Lightweight analog FPV setups with ELRS

Package Includes:

• 1x BetaFPV Matrix 5-in-1 AIO FC

• 1x Micro antenna

• 1x VTX pigtail and connector

• 1x Cable set and mounting hardware

Explore related gear:

• Flight Controllers – Electronics

• Electronic Speed Controller – ESC

• Electronics

• Stacks



Product FAQs

Q1: Can I use this AIO FC with 2S batteries?

A: No, this board supports only 1S LiPo/LiHV batteries.

Q2: Does it support ExpressLRS out of the box?

A: Yes, it includes a built-in ELRS 2.4GHz receiver.

Q3: What video goggles are compatible?

A: This board has a 400mW analog VTX, so it’s compatible with analog FPV goggles or VRX systems.

Q4: What frame size is this ideal for?

A: It’s best suited for 65mm to 85mm whoop frames or other micro builds with 25.5x25.5mm mounting.

Q5: Is SmartAudio supported on the VTX?

A: Yes, it supports SmartAudio for remote VTX power and channel adjustments.
