BETAFPV Matrix 1S Brushless Flight Controller HD – G4 3-in-1 HD V1.0

BETAFPV Matrix 1S Brushless Flight Controller HD – G4 3-in-1 HD V1.0

Regular price $49.99 USD
Regular price Sale price $49.99 USD
Sale Sold out
Shipping calculated at checkout.

The Matrix 1S Brushless Flight Controller redefines 1S whoop performance with two purpose-driven architectures: the 3IN1 for DJI O4 digital dominance (integrating FC, ESC, and ELRS 2.4G RX while omitting analog OSD), and the 4IN1 for analog mastery (adding built-in OSD + solder pads for external VTXs). Both feature the iconic cross-design architecture, newly developed BEC, 18A peak ESCs, and the STM32G473 MCU for 55% faster processing—delivering effortless setup, pro-tier control, and uncompromised flight dynamics that rewrite 1S standards.

Matrix 1S FC 4IN1 & 3IN1 - Dual DNA. One Legend

Attention

  • Crafted for newcomers and recreational pilots, the Matrix FC features a robust 1mm board for enhanced durability, a solder-free design for easy installation, and a beginner-friendly experience. For advanced pilots, the ultra-thin and lightweight Air FC is the definitive choice, engineered with race-winning agility to push the boundaries of FPV flight performance.
  • Flight controllers are covered for manufacturer defects. Issues arising from user errors, physical crash damage, damage during installation or dismantling, modifications, power surges, electrical fires, or water exposure are not covered.

    Bullet Points

    • Dual DNA: 3IN1 (FC, ESC, and ELRS 2.4G RX) for DJI O4 digital dominance (omits analog OSD), 4IN1 for analog mastery with OSD.
    • STM32G473 MCU: 55% faster processing than F411 for responsive tuning.
    • Stable Video Transmission: Features a newly developed BEC to ensure consistent power delivery for seamless HD performance.
    • Enhanced Overcurrent Capacity: Supports 12A continuous current and 18A peak ESC, providing robust performance for demanding flights.
    • Reliable Precision: Includes an independent 3.3V LDO design to deliver stable, interference-free power directly to the IMU for accurate control.
    • Whoop-ready Installation: The 3IN1 is equipped with motor plugs and a SH1.0-6Pin HD digital port for a hassle-free installation and maintenance experience, while the 4IN1 has external VTX soldering pads for protocol flexibility.

    Specifications

    FC

    • MCU: STM32G473CEU6 (168MHz)
    • Gyro: ICM42688P
    • Blackbox Memory: 16MB
    • Sensor: Voltage & current
    • BEC: 5V/3A
    • UART (3IN1 Version): UART 1 (RX Only/SBUS), UART 2 (Free), UART 3 (For RX), UART 4 (Free/HD MSP)
    • UART (4IN1 Version): UART 1 (For VTX), UART 2 (Free), UART 3 (For RX), UART 4 (NONE)
    • ESC: 12A continuous
    • RX: Serial ELRS 2.4GHz (V3.4.3)
    • FC Firmware: Betaflight_4.5.1_BETAFPVG473 (3IN1 version), Betaflight_4.5.2_BETAFPVG473_V2 (4IN1 version)
    • USB Port: SH1.0-4Pin
    • OSD: AT7456E (4IN1 version only)
    • HD Digital VTX Port: SH1.0-6Pin (3IN1 version only)
    • Motor Plug: JST1.25-3Pin
    • Battery Connector: BT2.0
    • Mounting Size: 25.5mm x 25.5mm

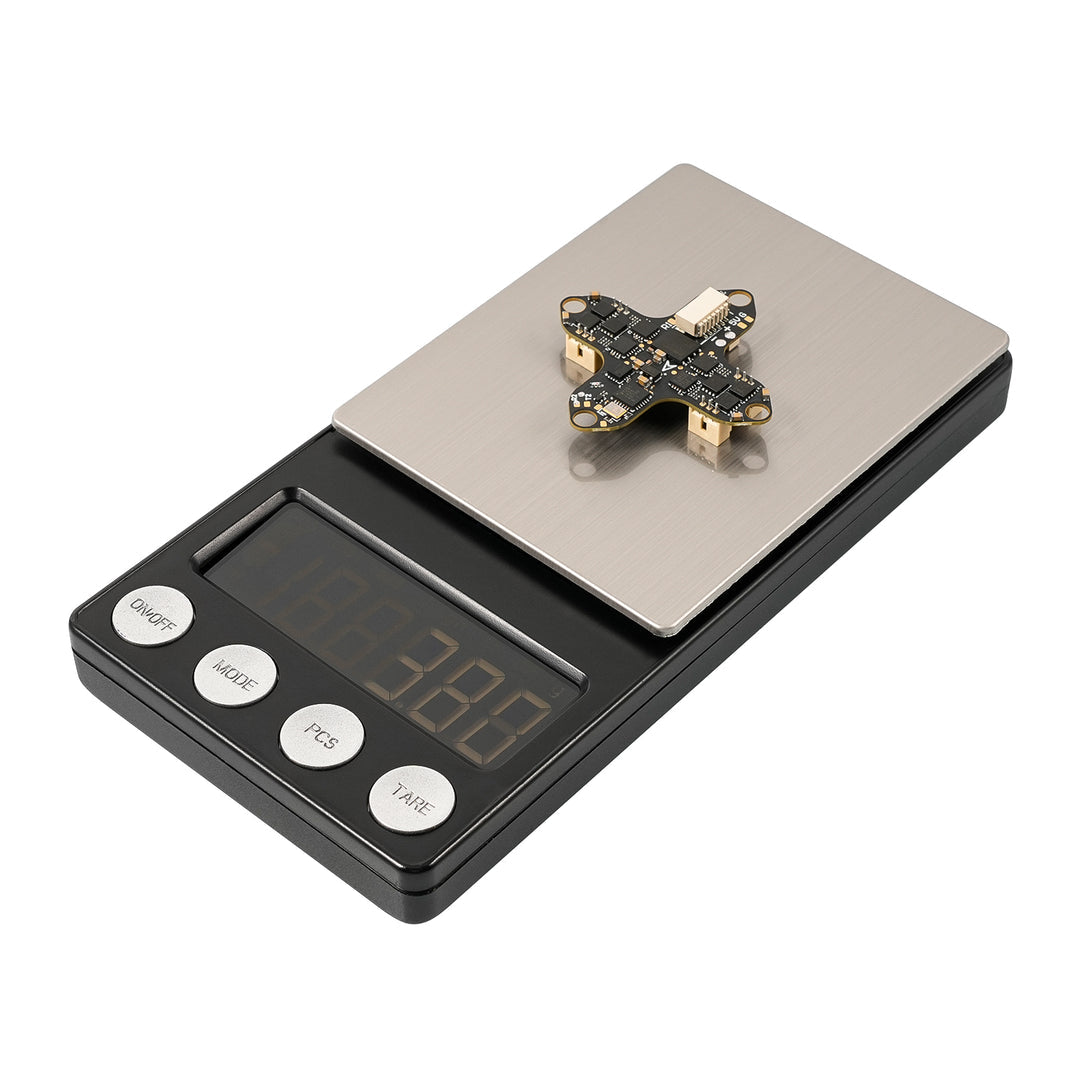

    • Weight (3IN1 Version): 3.8±0.1g (battery connector excluded), 4.2±0.1g (battery connector included)
    • Weight (4IN1 Version): 3.6±0.1g (battery connector excluded), 4.6±0.1g (battery connector included)

    ESC

    • Power Input: 1S only
    • Current: 12A continuous, 18A peak
    • ESC Firmware: A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware
    • Digital Signal Protocol: DSHOT300, DSHOT600



    Matrix 1S 3IN1

    Matrix 1S 4IN1

    F4 1S 5A AIO

    MCU

    STM32G473CEU6

    STM32F411CEU6

    MCU frequency

    168MHz

    108MHz

    Gyro, max. sampling rate

    ICM42688P, 8KHz

    BMI270, 3.2KHz

    ESC

    12A continuous

    1S, 5A

    Blackbox

    memory

    16M

    8M

    OSD

    -

    Betaflight OSD: AT7456E

    RX

    Onboard Serial ELRS 2.4GHz

    Motor plug

    JST1.25

    Weight

    3.8g

    3.6g

    3.64g

    Matrix 1S FC 4IN1 & 3IN1 - STM32G473 MCU

    Diagram

    Matrix 1S Brushless Flight Controller (3IN1):

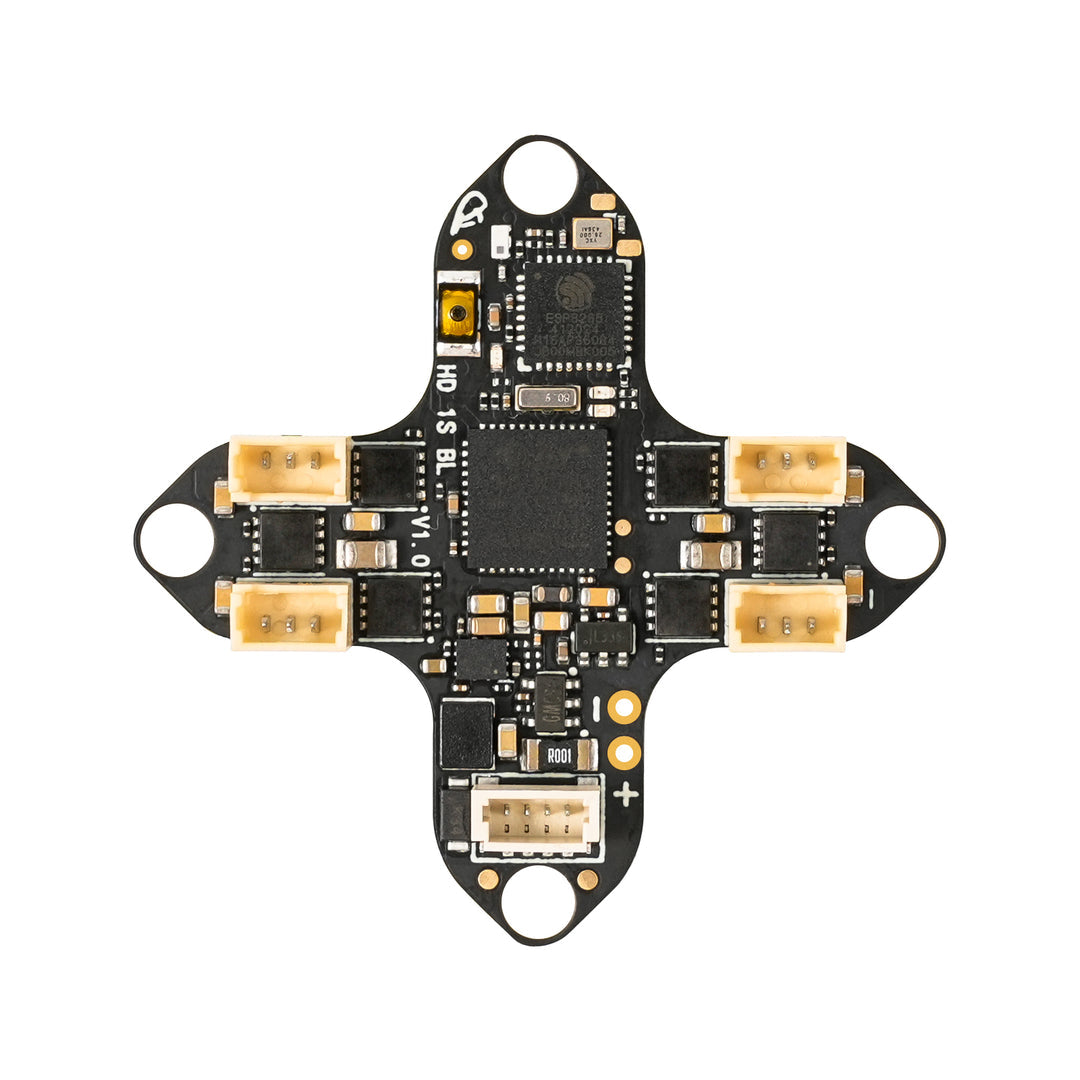

    Matrix 1S 3IN1 HD FC top front

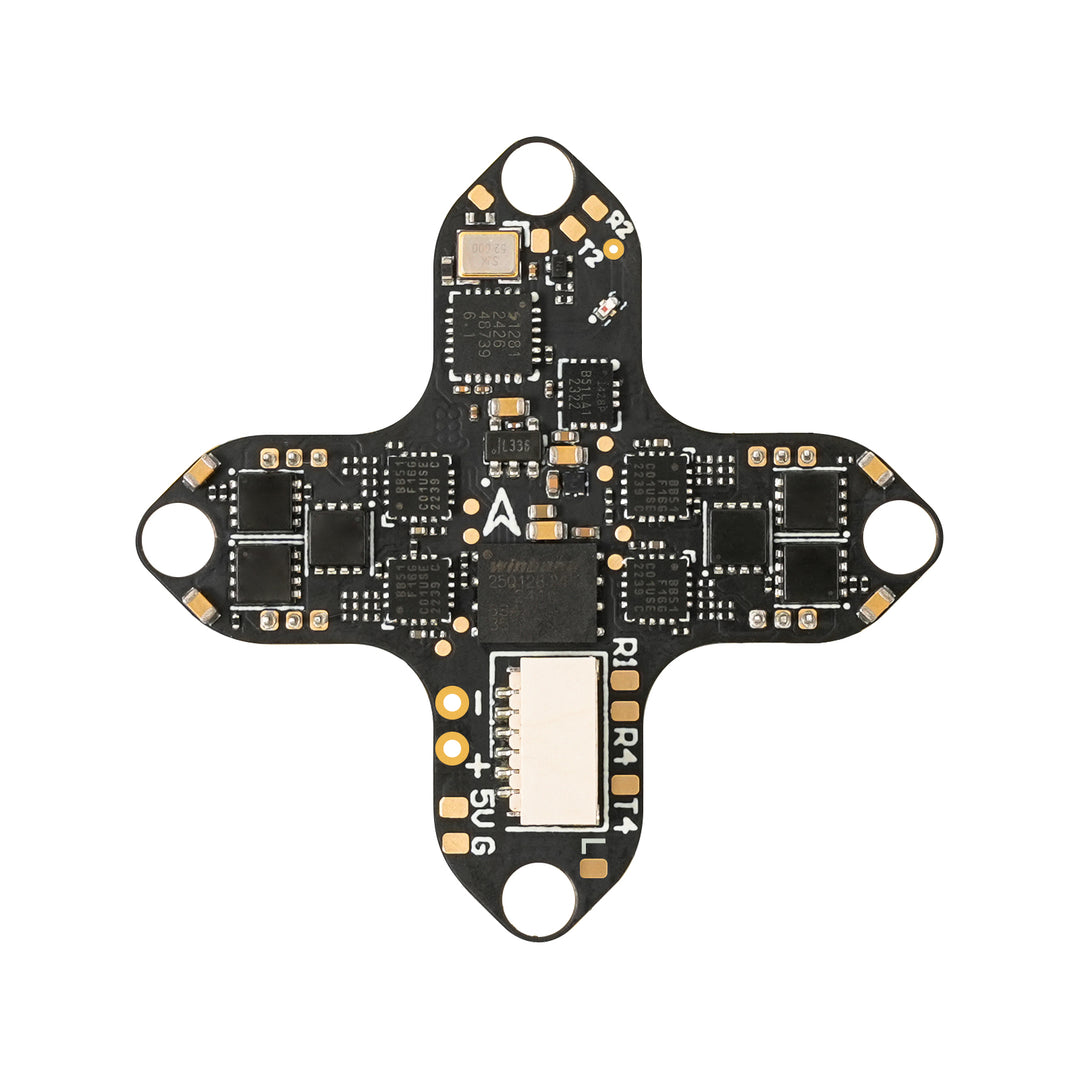

    Matrix 1S 3IN1 HD FC


    Ultra-Resilient BEC

    1S whoops often fly at voltages as low as 3.3V and digital image transmission requires higher current, placing significant demands on the BEC. To meet these challenges, an advanced BEC has been developed, capable of delivering over 3A of current at ultra-low voltages down to 2.85V. This ensures stable image transmission even in critical situations. While flying to such low voltages isn't recommended, this innovation provides pilots with a greater chance of safely recovering from unexpected situations.

    Enhanced Continuous 12A ESC

    Whether powering digital HD systems or high-performance analog builds, 1S whoops demand ESCs that won’t flinch. Our engineers exceeded expectations, delivering a robust ESC with 12A continuous output and 18A peak capacity on the iconic "cross" flight controller. This ensures optimal thrust-to-weight ratio, reliable performance, and worry-free high-definition flights.

    Individual Power Supply for IMU

    Unlike traditional shared power supply designs, the Matrix 1S FC features an independent 3.3V LDO power supply exclusively for the IMU. This innovation eliminates interference, creating a cleaner and more stable environment that enhances flight precision, improves sensitivity, and reduces the risk of performance issues—ensuring unmatched stability during every flight.

    Whoop-ready Installation

    Equipped with convenient motor plugs and a SH1.0-6Pin HD digital port, the 3IN1 version allows for a completely solder-free installation and maintenance process. Spend less time building and more time flying HD whoops.

    Matrix 1S 3IN1 HD FC motor plug and HD digital port

    The 4IN1 version retains soldering pads for external analog VTX, giving you protocol freedom while reducing voltage ripple interference for cleaner video signals.

    Matrix 1S 4IN1 FC soldering pads for external analog VTX

    Serial ELRS 2.4G RX

    Serial ELRS 2.4G RX uses the Crossfire serial protocol (CRSF protocol) to communicate between the receiver and the flight controller board. So the Serial ELRS 2.4G RX is available to support upgrading to ELRS V3.0 with no need to flash Betaflight flight controller firmware. Enter binding status by power on/off three times.

    • Plugin and unplug the flight controller three times;
    • Make sure the RX LED is doing a quick double blink, which indicates the receiver is in bind mode;
    • Make sure the RF TX module or radio transmitter enters binding status, which sends out a binding pulse;
    • If the receiver has a solid light, it's bound.

    The Serial ELRS 2.4G RX can be updated via Wi-Fi or Betaflight serial passthrough. Here is the way to update the Serial ELRS 2.4G RX firmware through passthrough.

    • Plug in your FC to your computer, connect to ExpressLRS Configurator instead of Betaflight Configurator;
    • Choose target "BETAFPV 2.4GHz AIO RX";
    • Flash using the BetaflightPassthrough option in ExpressLRS Configurator.

    How to flash firmware via Wi-Fi here.

    Betaflight Firmware and CLI

    Betaflight official developers recommend using version 42688 of the gyroscope, and many issues with ICM42688 have been fixed in version 4.5.0. Please learn more from version 4.5.1 and 4.5.2.

    Matrix 1S Brushless Flight Controller (3IN1):

    Matrix 1S Brushless Flight Controller (4IN1):

    IMPORTANT: The Matrix 1S 3IN1 and 4IN1 require different firmware - always verify your version before flashing to avoid performance issues.

    Bluejay ESC Firmware

    With BB51 ESC solution, Matrix 1S 3IN1 HD Brushless Flight Controller is based on A_X_5_96_v0.19.2.hex for BB51 Bluejay firmware, it supports DSHOT300, DSHOT600, and even RPM filtering in Betaflight, offers 24KHz, 48KHz, and 96KHz fixed PWM frequency for options, and custom start-up melodies.

    DO NOT flash the firmware with a shorter interval, otherwise, there will be a certain chance of stalling and burning the flight controller.

    How to Use Serial Ports, Intergrated RX and VTX

    UART3 is connected to the built-in serial ELRS RX. To release UART3, please remove the resistor. Additionally, Matrix 1S FC reserves 2 complete full-featured serial ports that can be used for external serial receivers, GPS, HD VTX, or other serial devices. Refer to the pictures below.

    Matrix 1S Brushless Flight Controller (3IN1):


      Recommended Parts

      Matrix 1S Brushless Flight Controller (3IN1)

      Package

      • 1 * Matrix 1S Brushless Flight Controller (3IN1)
      • 1 * Type-C to SH1.0 Adapter
      • 1 * SH1.0-4Pin Adapter Cable
      • 1 * SH1.0-6Pin Adapter Cable
      • 4 * M1.2*4 Self-tapping Screws
      • 4 * M1.4*5 Self-tapping Screws
      • 4 * Shock Absorbing Balls
      package for Matrix 1s brushless flight controller
