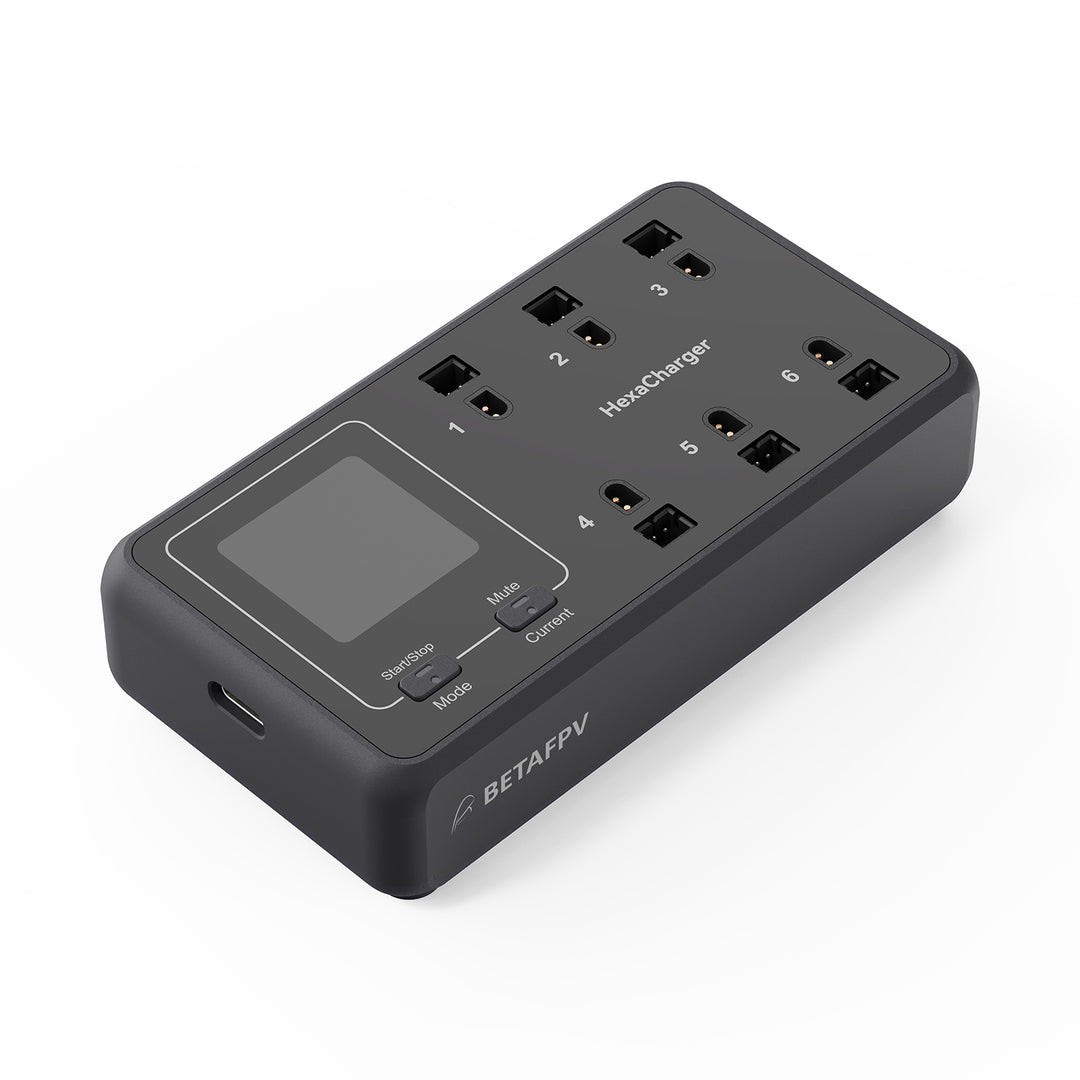

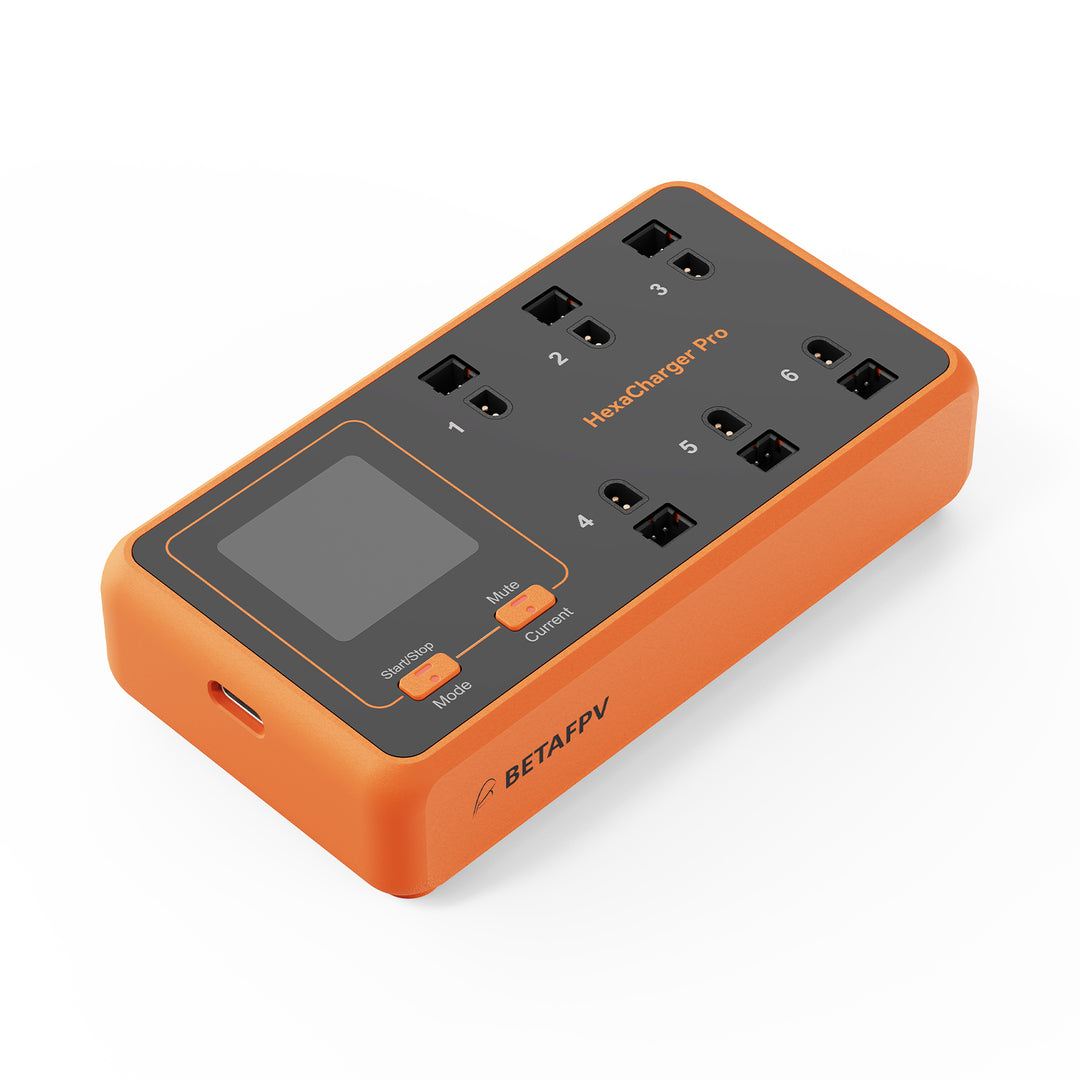

BETAFPV HexaCharger 1S Battery Charger – 6 Port Whoop Charger

Get back in the air faster with the HexaCharger 1S Charger. This palm‑sized hub charges six 1S batteries at once, available in 24W and 78W Pro outputs for rapid PD 3.0 charging. With an easy‑read color display, dual‑port compatibility, and robust safety systems, it’s built to simplify charging and maximize flight time for whoop pilots of all styles.

Bullet Points

• Palm‑Sized & Portable: Weighs just 109g (Standard) / 115g (Pro) and fits in the palm of your hand.
• All‑In‑One Charging Hub: Charge, storage mode, and adjustable current settings all in one device.
• Easy to Use: Start, stop, and adjust settings with just two buttons, guided by a clear color screen.
• Fast PD 3.0 Charging: Delivers up to 24W total (Standard) or 78W total (Pro) for rapid, efficient charging of all six ports simultaneously.
• 1.3” TFT Color Display: Clear, zoned screen shows real‑time voltage, current, and status for all six channels at a glance.
• Dual BT2.0 & PH2.0 Ports: Compatible with virtually all popular 1S whoop batteries.
• Smart Cooling System: Intelligent thermal management and high‑flow 9,000 RPM fan ensure safe and reliable charging.
• Physical Safety Design: Fool-proof ports prevent incorrect insertions.

Specifications

Diagram

Palm-Sized & Portable

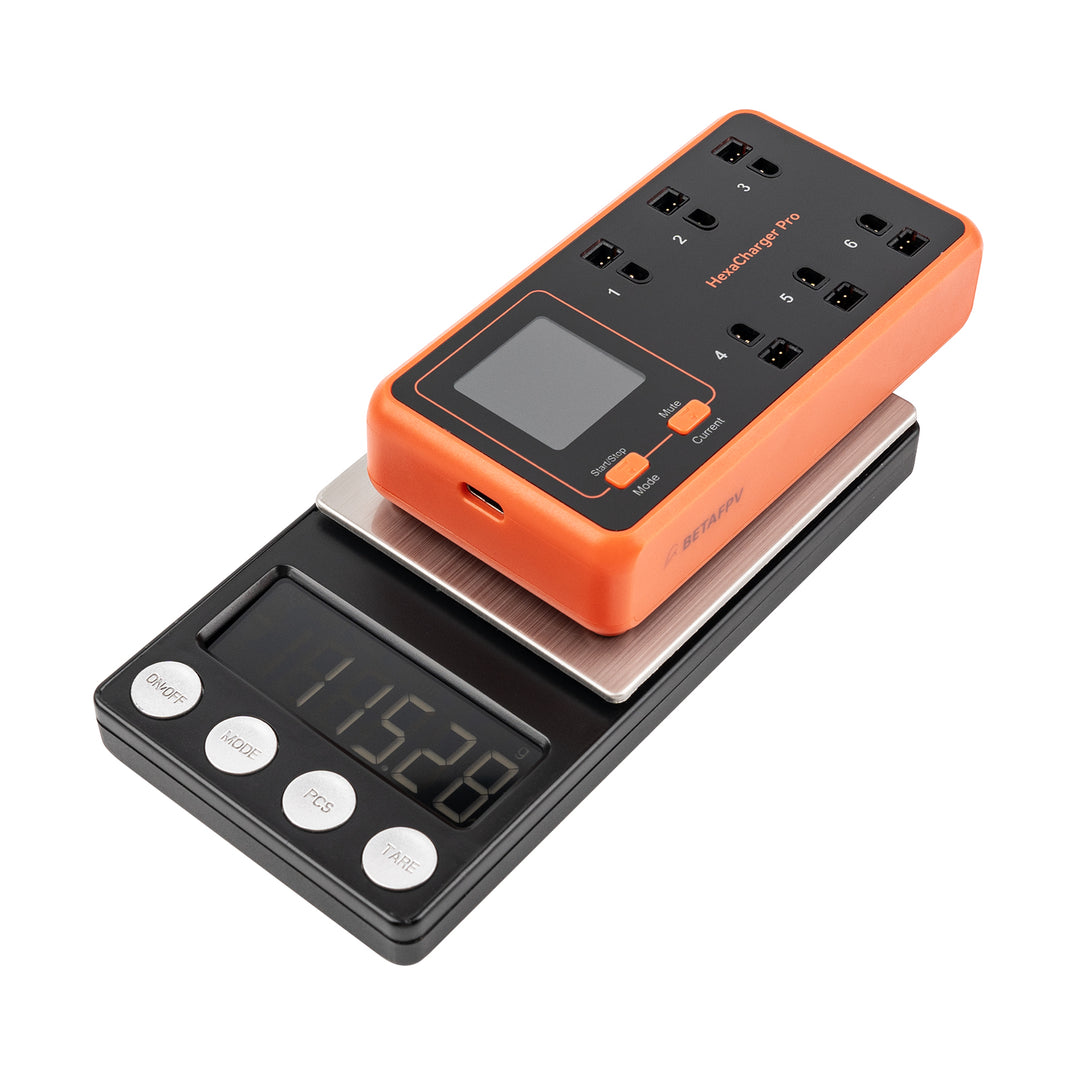

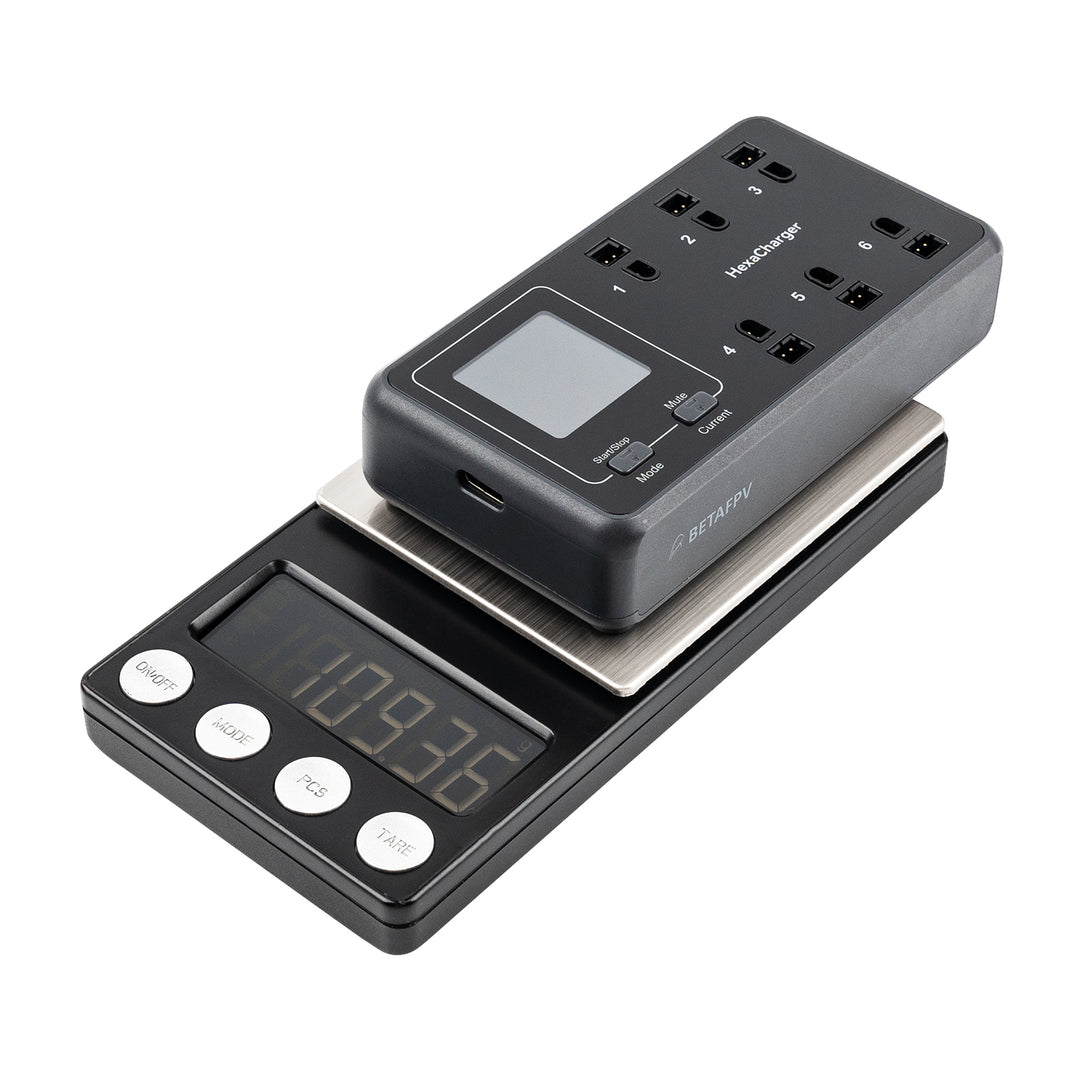

The HexaCharger weighs just 109g (Standard) or 115g (Pro), with a compact design that fits in your palm—and it works with most common adapters for easy power on the go.

All-In-One Charging Hub

Fulfill all your battery‑management needs with built-in charging, storage, and adjustable current settings—all controlled through an intuitive two‑button interface and clear color display.

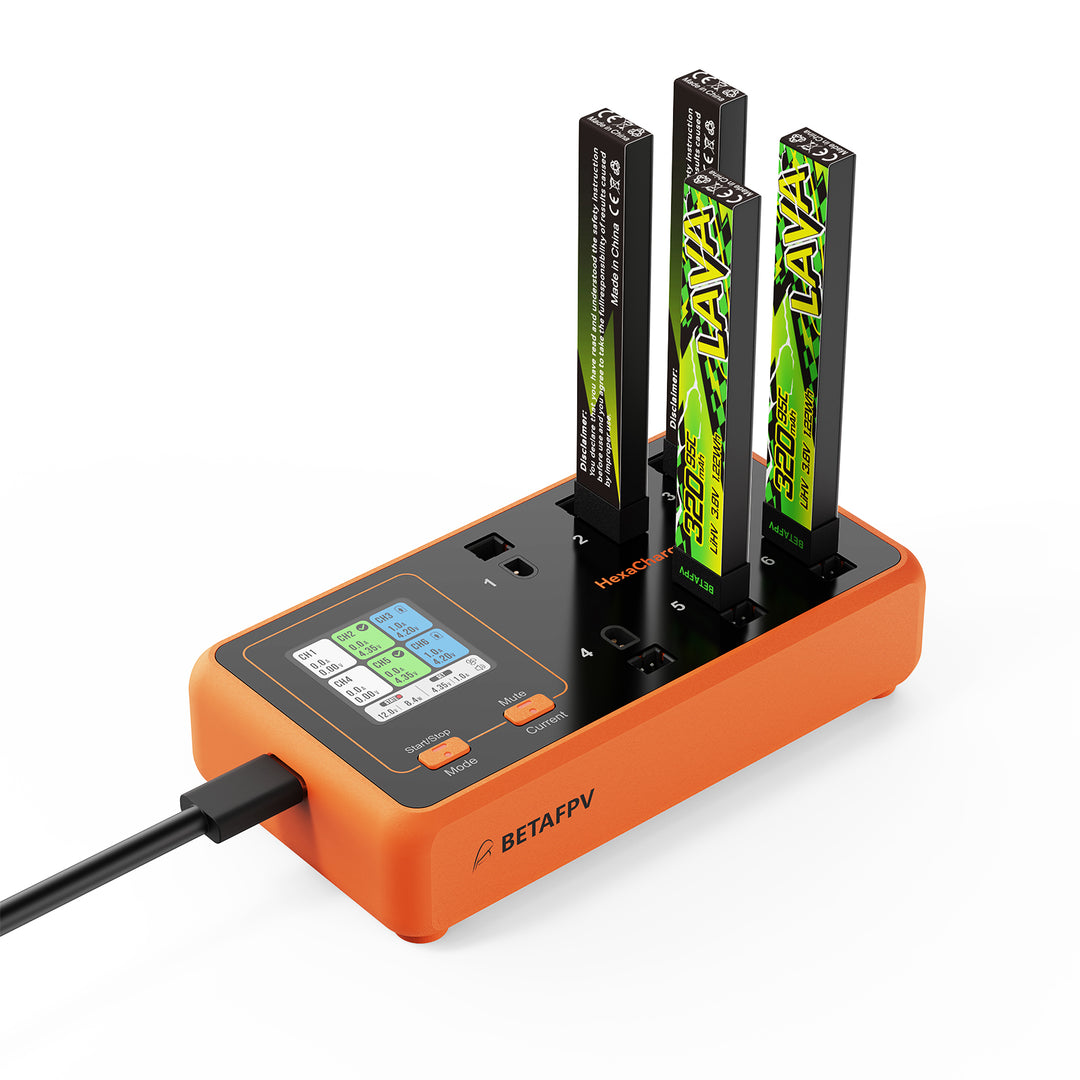

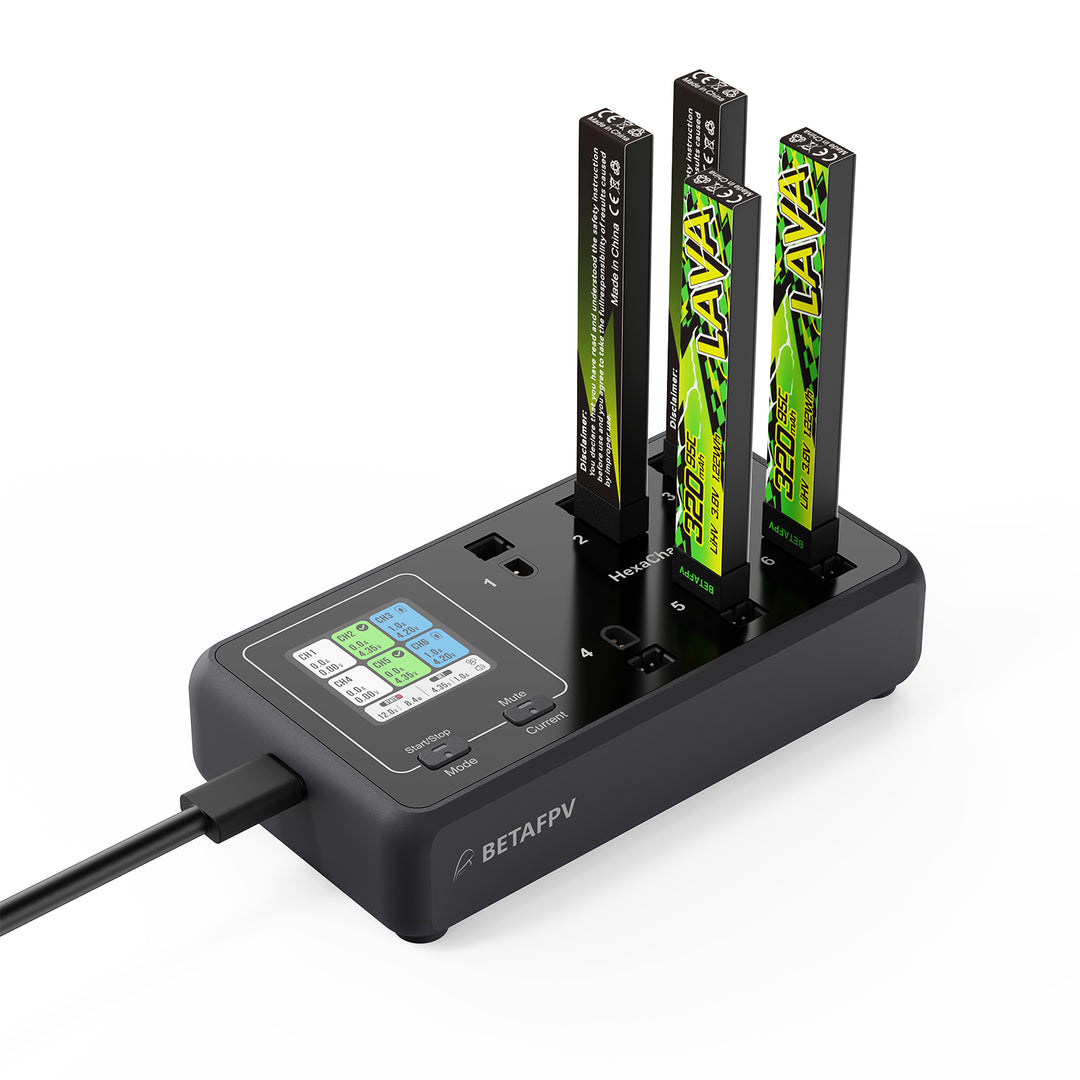

Fast PD 3.0 charging delivers up to 24W total for the HexaCharger or 78W total for the HexaCharger Pro, with the Pro supporting up to 3A max charging current and 400mA discharging current on all six ports simultaneously. Just press to start, then monitor all six ports and real‑time status on the clear 1.3” TFT display. Dual BT2.0/PH2.0 ports ensure full compatibility with popular 1S whoop batteries.

Smart Cooling & Safety Design

Usage Notes

Charging Current

For optimal battery health and performance, set the charging current according to the recommended values in the chart below. Do not exceed the maximum current for your battery.

Charging Adapter

POWER ADAPTER RECOMMENDATIONS

HexaCharger: Use a PD 3.0 adapter with at least 30W output.

HexaCharger Pro: Use a PD 3.0 adapter with 100W output or higher.

• ANKER Charger (100W)
• NOVOO RG120 3-Port 120W GaN Charger
• UGREEN Nexode 100W USB-C GaN 4-Port Charger
• AOHI The Youth PD 100W GaN 3-Port Fast Charger

ADAPTER COMPATIBILITY & BEHAVIOR

• If the adapter cannot supply the requested charging current, the charger will reduce the current per port to stay within the adapter’s maximum power limit.
• If the charger detects that the adapter's output is ≤5W (5V/1A), it will charge batteries sequentially by port number, while keeping the other channels off.
• If charger can only detects the adapter's voltage but not the maximum current, power limit is unknown, *  shown next to voltage. If the input voltage is below 5V, - shown next to voltage. No symbol if the adapter is providing full compatible power.
• If using a non-PD adapter, wait 5 seconds after powering on for the charger to recognize the protocol before starting to charge.

File

User Manual

Recommended Parts

• Battery: LAVA II 1S Battery

Package

• 1 * HexaCharger 1S Charger / HexaCharger Pro 1S Charger
• 1 * User Manual
