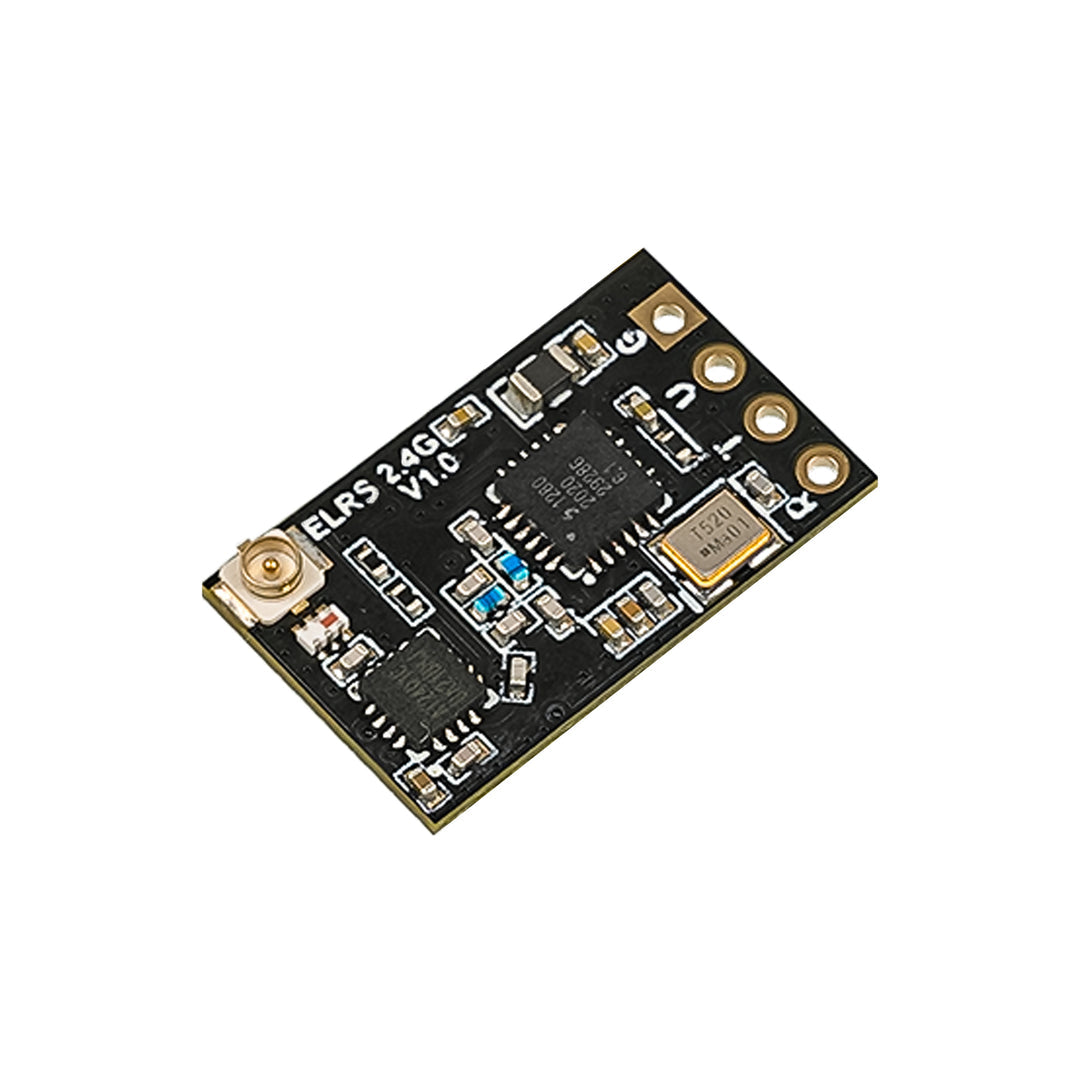

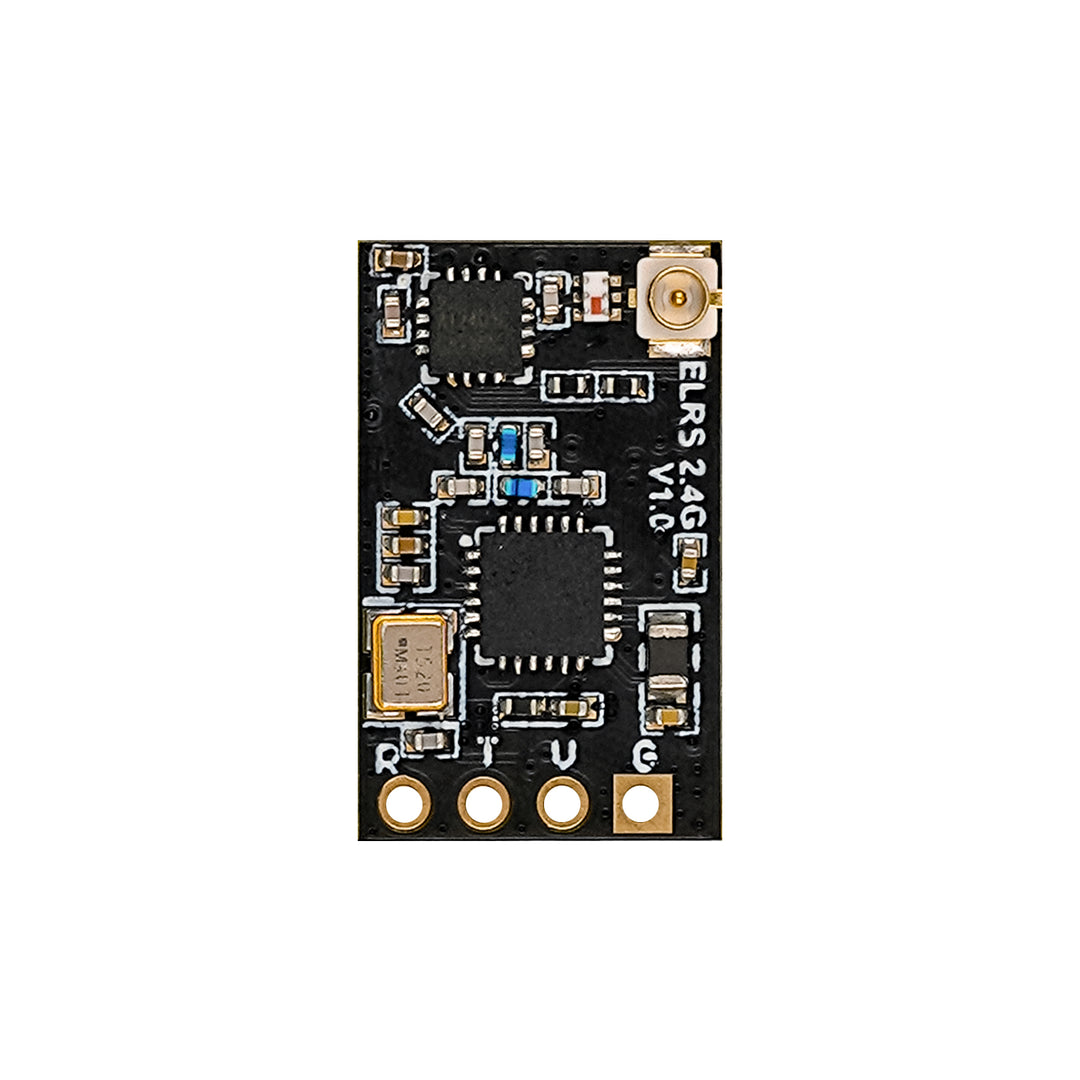

The BETAFPV ELRS Nano Receiver is a lightweight, high-performance receiver designed for FPV drones requiring reliable, long-range control. Operating on the 2.4GHz frequency band, it offers ultra-low latency and robust signal integrity, making it ideal for both racing and freestyle applications. With a compact form factor and a 46mm antenna, this receiver is perfect for builds where space and weight are critical considerations.
Key Features:
Based on the open-source ExpressLRS protocol for high-speed, low-latency communication
Operates on the 2.4GHz ISM frequency band
Compact size: 12mm x 19mm

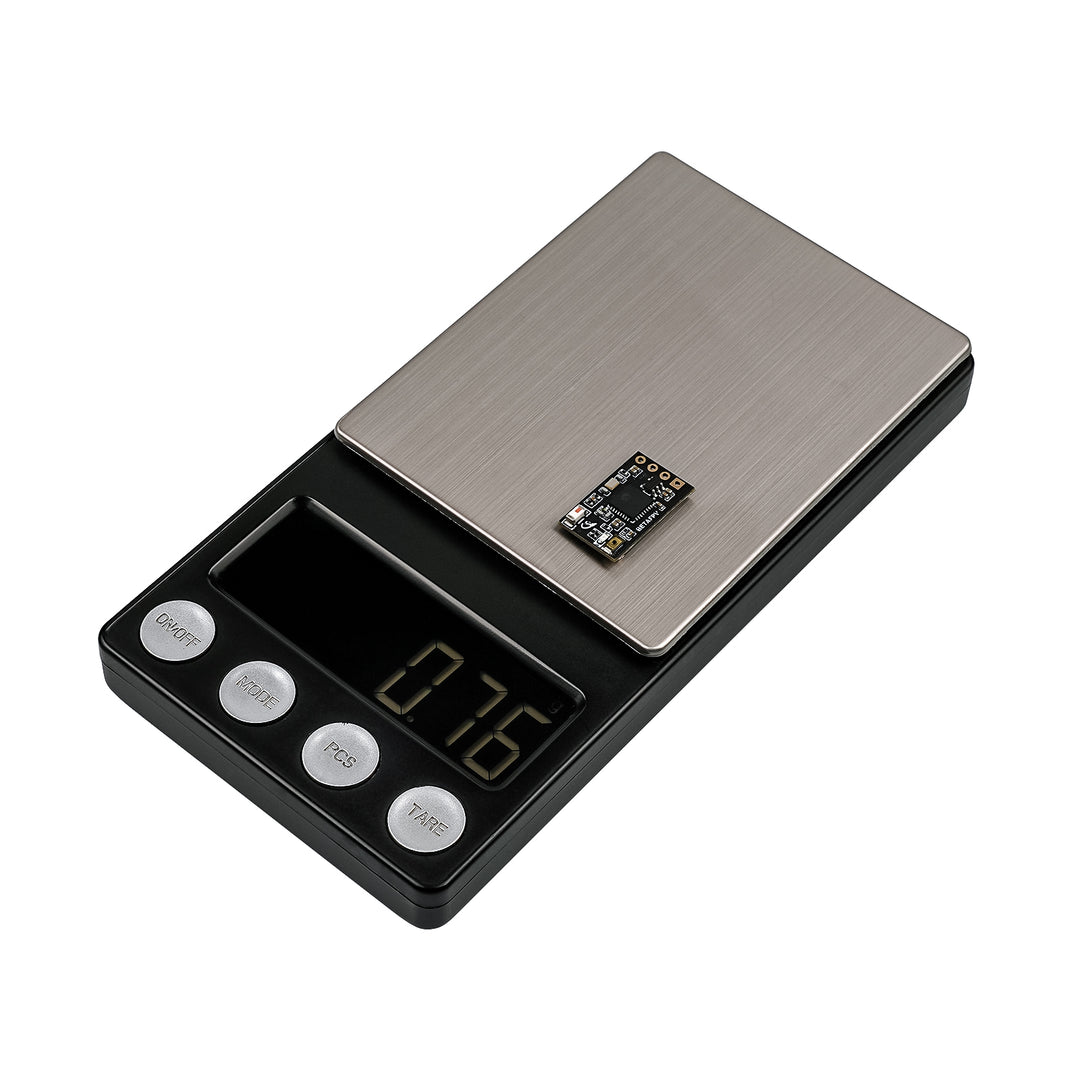

Lightweight design: 0.7g (receiver only)
Telemetry power: 20dBm for extended range
Input voltage: 5V
Antenna connector: IPEX MHF

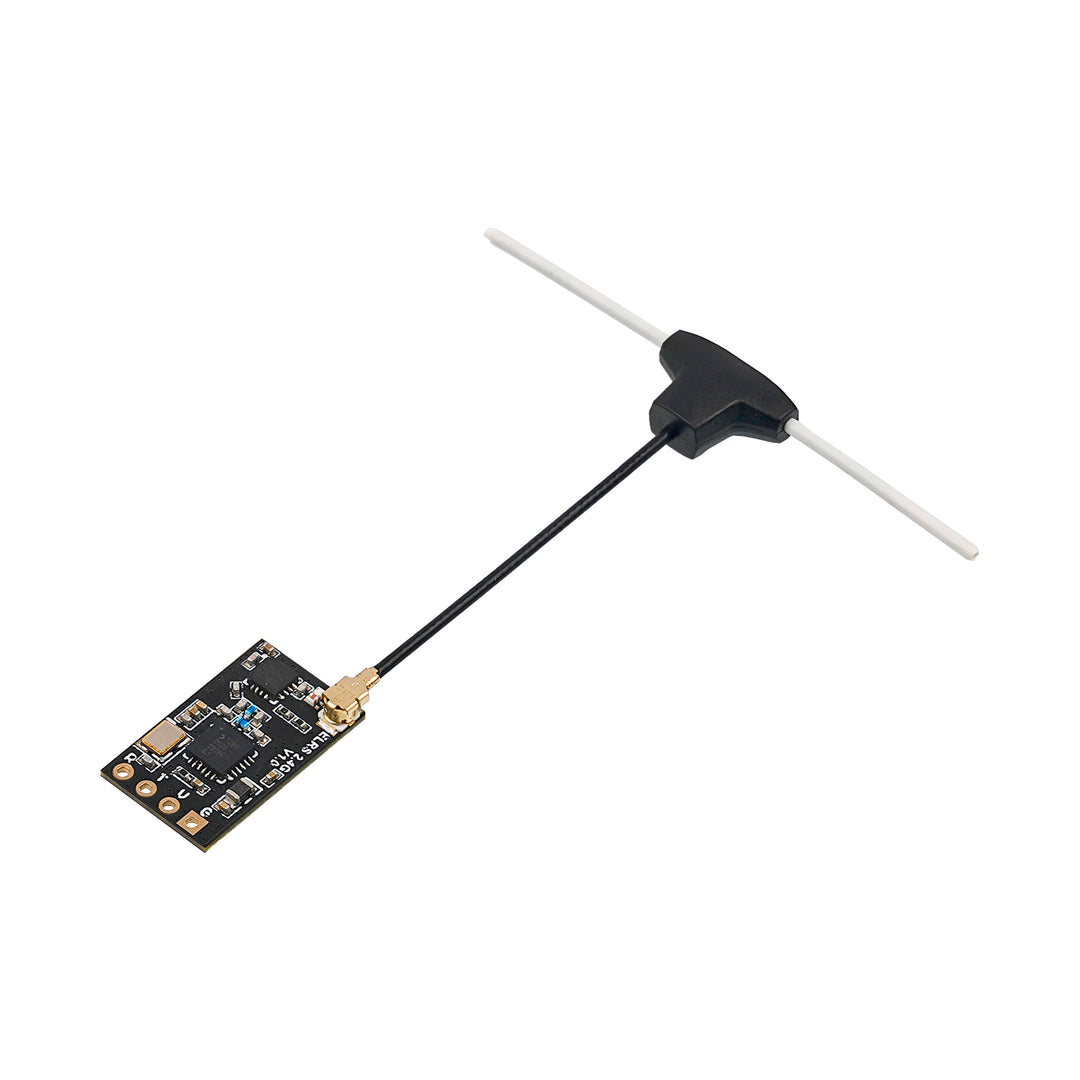

Includes a 46mm T-style antenna
Compatible with CRSF protocol for seamless integration with flight controllers
Package Includes:
1 x BETAFPV ELRS Nano Receiver – 2.4GHz
1 x BETAFPV 46mm T-style Antenna
2 x Spare Shrink Tubes
4 x 30AWG Silicon Connection Wires (Black, Red, White, Yellow)
